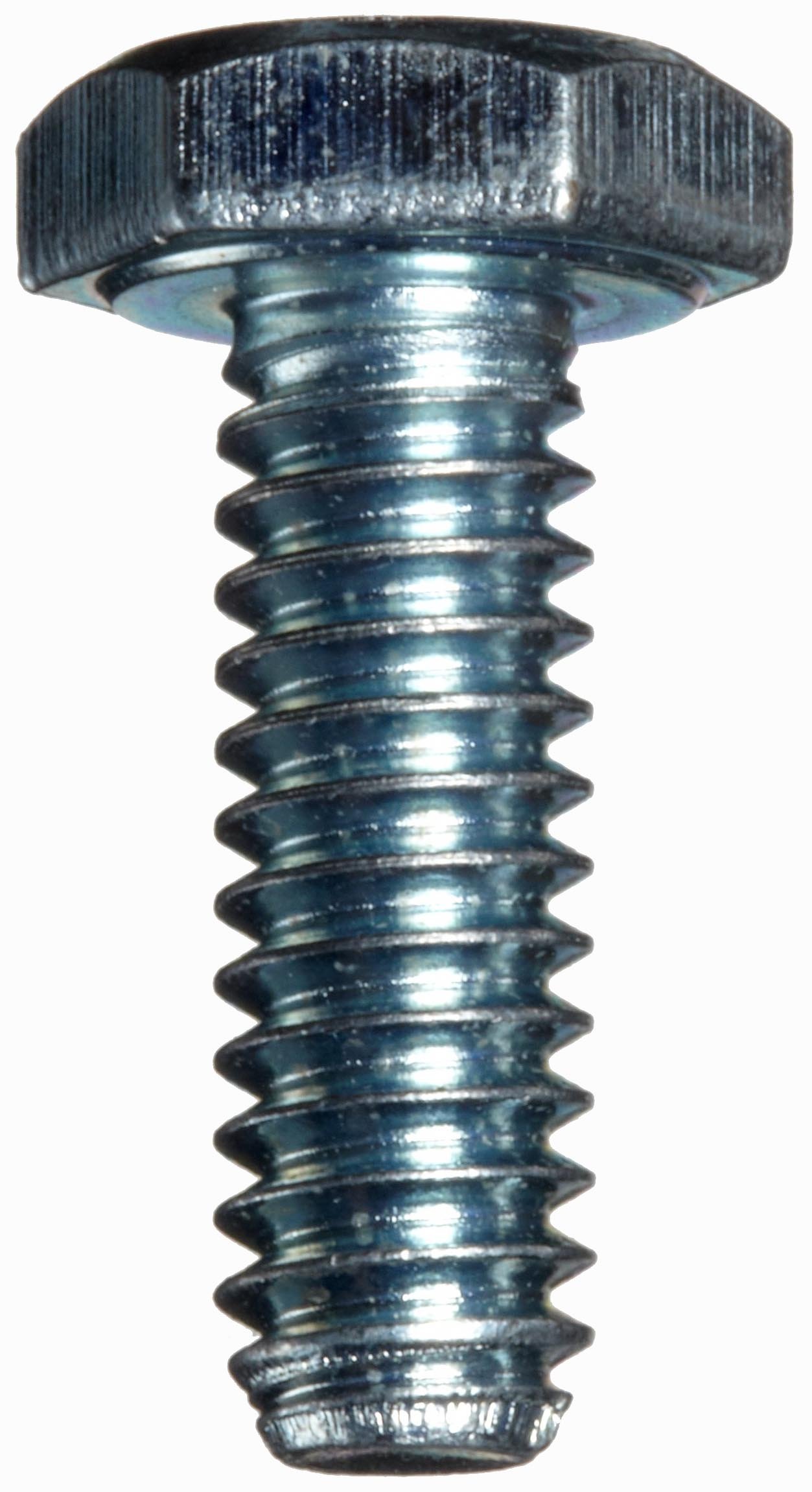

Grade 5 Zinc Plated Steel Hex Bolt, 1/4"-20, 3-3/4" Length (Pack of 10)
Be the first to review this item
ASIN B000N47ZQU
Specifications for this item
- Brand Name
- Small Parts
- Color Name
- Silver
- Drive Style
- Hex
- Exterior Finish
- Zinc Plating
- Grade
- Grade 5
- Head Style
- Hex
- Length
- 3-3/4 inches
- Material Type
- Steel
- Part Number
- B000N47ZQU
- Pkg Qty
- 10
- Self Locking Mechanism
- None
- Size
- 1/4"-20
- System of Measurement
- Inch
- Thread Style
- Right Hand
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 22? Order in-stock items in the next 5 hours 34 minutes and choose One-Day Shipping at checkout.
Key Features
- Hex Bolts feature a chamfered point
- Zinc Plated Steel fasteners are suitable where strength and corrosion resistance are primary considerations
- Hex head for easy driving
- Length is measured from under the head
- Coarse threads are better for brittle materials, and will assemble and disassemble more quickly than fine threads
Package Details
Shipping Weight:
0.54 pounds
Package Size:
4 x 3 x 0.75 inches
Product Description
Hex bolts have a chamfered point to aid insertion into a tapped hole or nut. Length is measured from under the head.

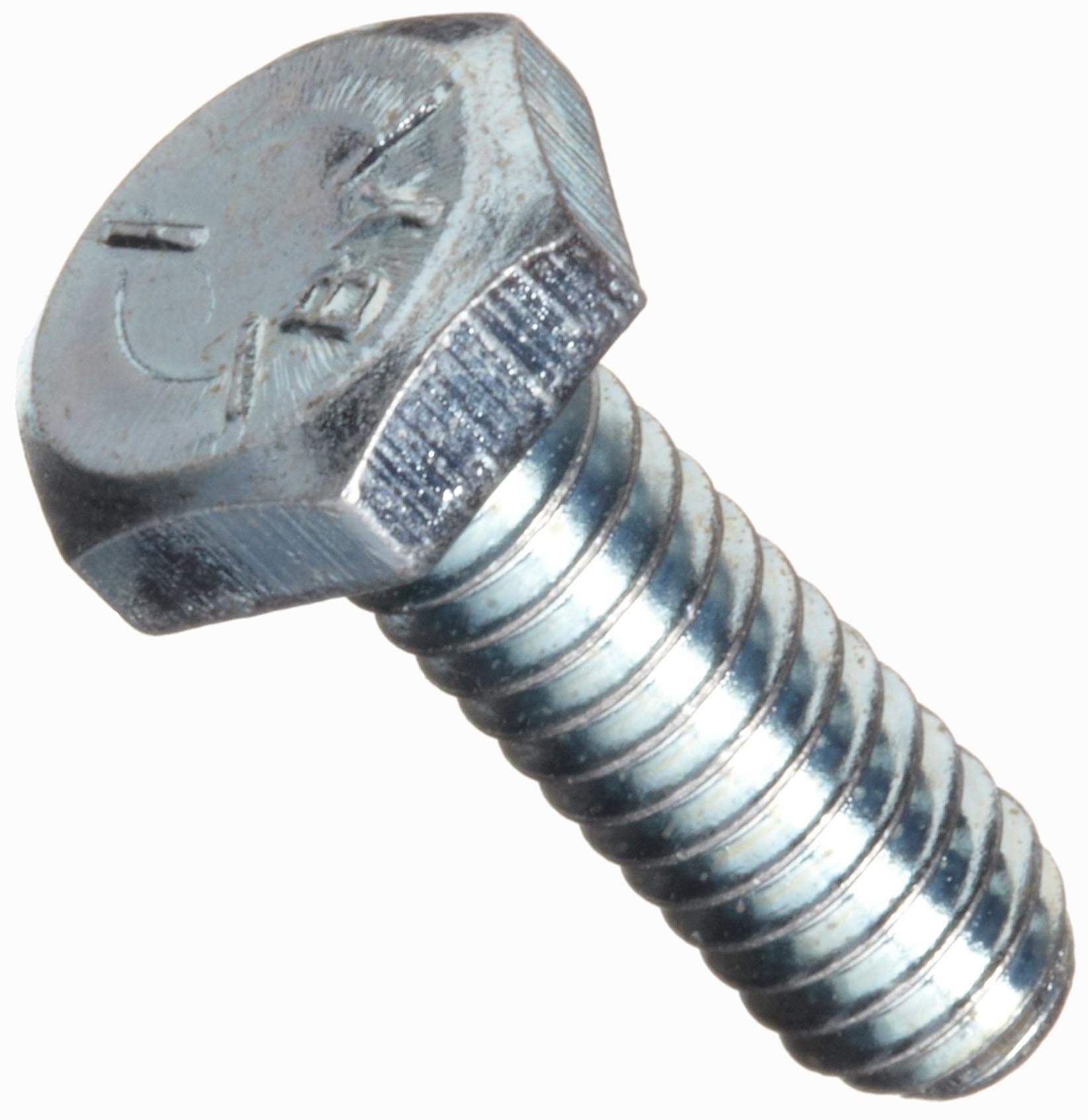

Grade 5 fasteners are typically made of medium-carbon steel that is quenched and tempered for added strength. They are commonly used in the automotive industry and other situations in which strength is a moderate concern, and are grade-marked on the head with three radial lines. Steels are designated by a 4 number SAE Steel grade. The first two digits indicate the primary materials used to form the steel. The last 2 digits identify the percentage of carbon for the alloy (in hundredths). The steel used in these fasteners has a tensile strength ranging from 100,000 to 150,000 psi (pounds per square inch). Zinc Plating helps to prevent corrosion.
Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Coarse threads are better when working with brittle materials; they are sturdier and are easier to thread and unthread compared to fine. Coarse threading also allows for thicker coatings and platings.
