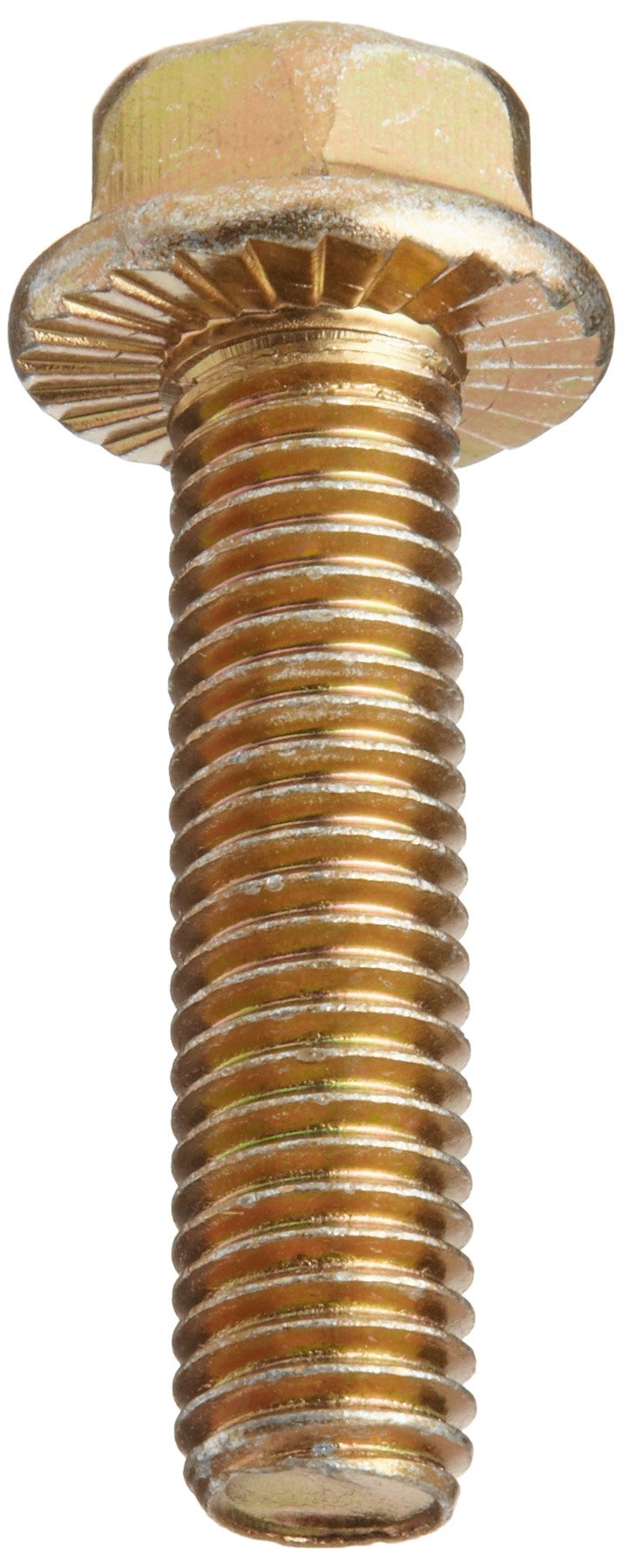

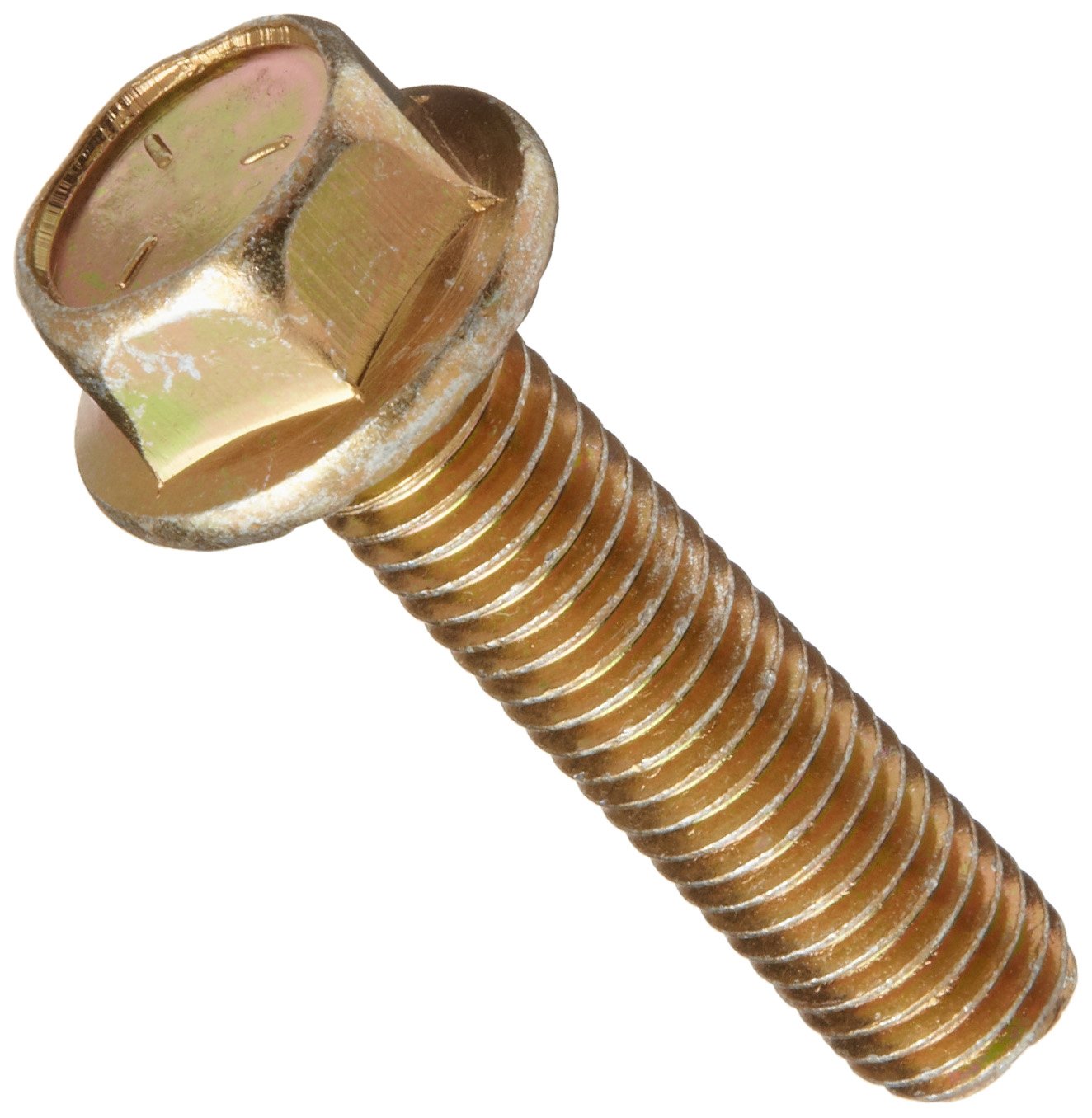

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Steel Hex Bolt, Grade 5, Zinc Yellow-Chromate Plated Finish, Serrated, Flange Hex Head, External Hex Drive, Meets IFI 111/SAE J429, Flanged, Serrated, 1" Length, Fully Threaded, 1/4"-20 UNC Threads, Imported (Pack of 50)

Be the first to review this item

ASIN B006HYEOLE

Product Specifications
Brand Name
Small Parts
Part Number
B006HYEOLE
Head Diameter
3/8  inches
Head Height
9/32  inches
Length
1  inches
Fastener Size
1/4"-20
Thread Size
1/4"-20
Thread Coverage
Fully Threaded
Flange Diameter
0.56  inches
Flange Thickness
0.04  inches
Import Designation
Imported
Pkg Qty
50
Tensile Strength Max
120000  PSI
Thread Class
2A
Thread Style
UNC
Specification for this product family (See all  products)
Drive Style
External Hex
Flange Type
Serrated
Material Type
Steel
Exterior Finish
Zinc Yellow-Chromate Plated
Specification Met
IFI 111 , SAE J429
Manufacturer Grade
Grade 5
Head Style
Flange Hex
Style Name
Serrated
UNSPSC Code
31161501
Thread Style
Right Hand
Special Features
Flanged
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 17 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Grade 5 steel is often used in applications where strength is the primary concern
  • Zinc yellow-chromate plating offers good corrosion resistance
  • Flange hex head has a serrated flange for additional grip on the mating surface that resists loosening
  • Meets IFI 111 and SAE J429 specifications

Package Details

Shipping Weight: 1 pounds
Package Size: 6.3 x 5.2 x 0.5 inches

Product Description

The grade 5 steel hex bolt has a zinc yellow-chromate plated finish, has a serrated flange hex head with an external hex drive, and meets Industrial Fasteners Institute IFI 111 and Society of Automotive Engineers SAE J429 specifications. Grade 5 steel, composed of quenched and tempered medium carbon steel, is often used in applications where strength is the primary concern. The material is magnetic. The zinc yellow-chromate plating offers good corrosion resistance. The flange hex head has six flat sides that a wrench can grip to turn from the side, enabling use when there is no space above the head for a screwdriver. The serrated flange acts like a washer to increase the fastener's bearing surface and distribute the clamping force over a larger area, providing a grip that resists loosening.

Cap screws and hex bolts are threaded fasteners with thick hex-shaped heads that can be used with threaded nuts or in areas with limited clearance above the tapped (threaded) hole. Cap screws have slightly different dimensions than hex bolts and have a washer face underneath their unflanged hex head to act as a large bearing surface against the mating material.
