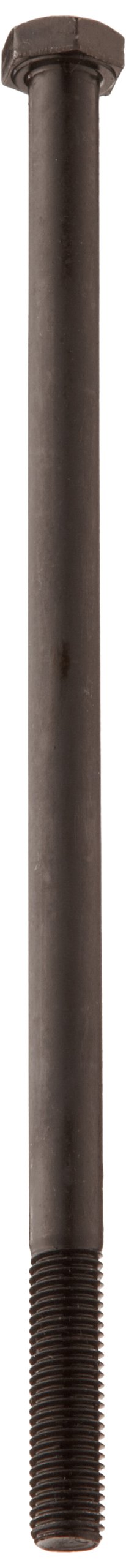

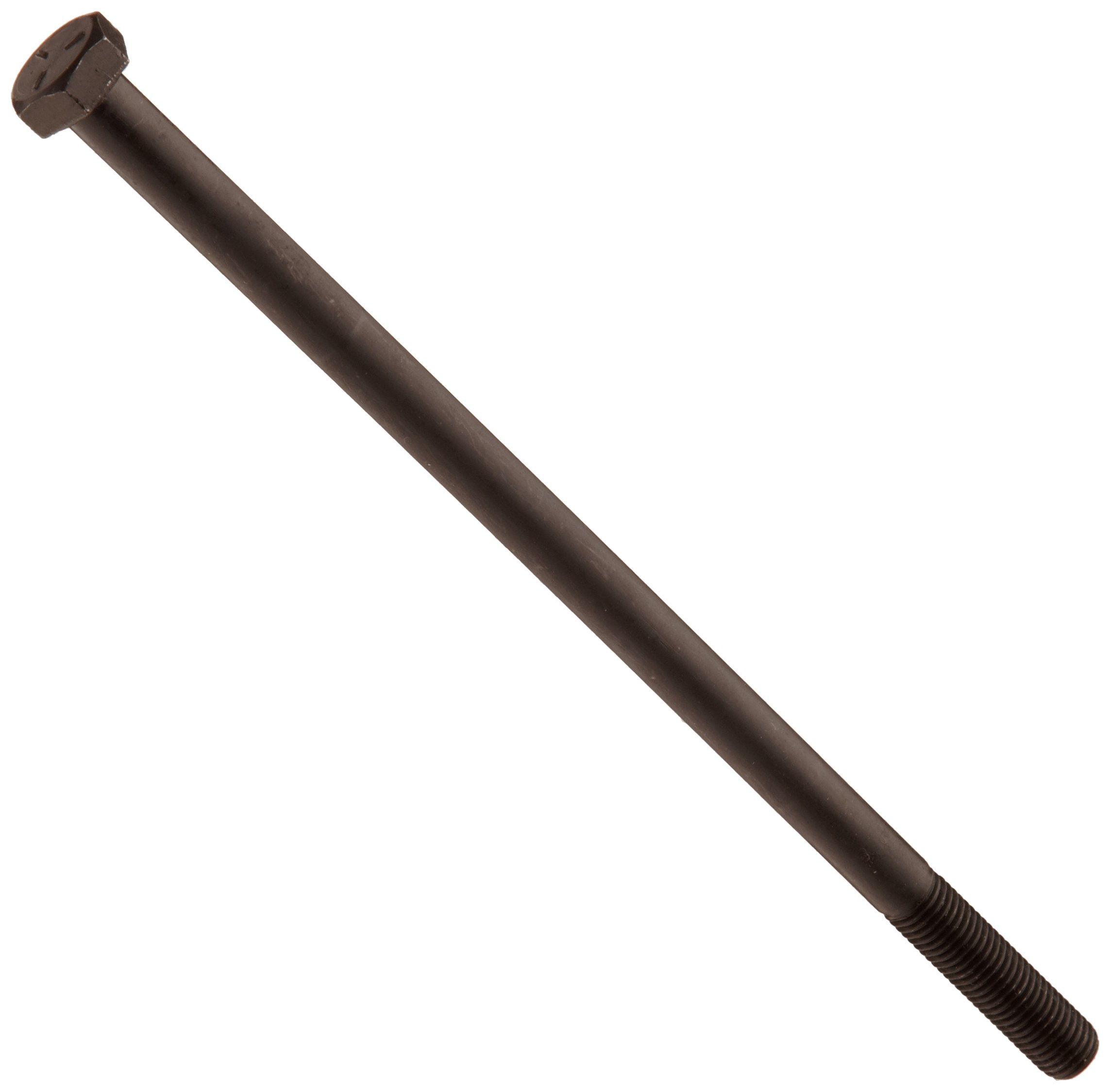

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

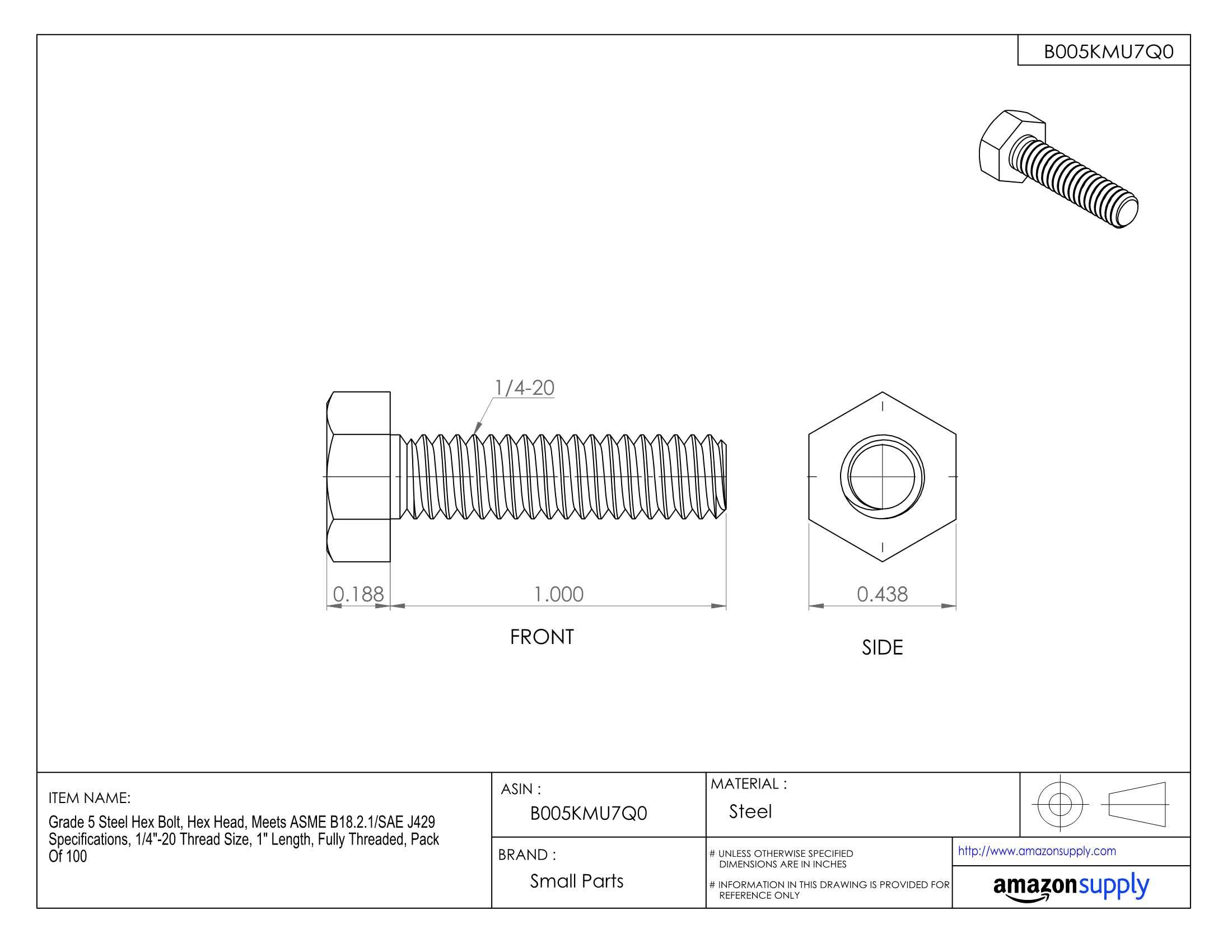

Steel Hex Bolt, Grade 5, Plain Finish, Hex Head, External Hex Drive, Meets ASME B18.2.1/SAE J429, 1" Length, Fully Threaded, 1/4"-20 Threads, Imported (Pack of 100)

Be the first to review this item

ASIN B005KMU7Q0

Product Specifications
Head Height
5/32  inches
Length
1  inches
Fastener Size
1/4"-20
Thread Size
1/4"-20
Thread Coverage
Fully Threaded
Head Size Name
7/16"
Import Designation
Imported
Pkg Qty
100
Thread Class
2A
Specification for this product family (See all  products)
Drive Style
External Hex
Material Type
Steel
Part Number
B00DD3MMAC
Brand Name
Small Parts
Exterior Finish
Plain
Specification Met
ASME B18.2.1 , SAE J429
Manufacturer Grade
Grade 5
Head Style
Hex
UNSPSC Code
31161501
Thread Style
Right Hand
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 6 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Grade 5 steel is often used in applications where strength is the primary concern
  • Plain surface has no finish or coating
  • External hex drive tightens from the side with a wrench, enabling use when there is no space above for a driver
  • Meets ASME B18.2.1 and SAE J429 specifications

Package Details

Shipping Weight: 1.75 pounds
Package Size: 3.2 x 3.2 x 2.7 inches

Product Description

The grade 5 steel hex bolt has a plain finish and an external hex drive, and meets American Society of Mechanical Engineers ASME B18.2.1 and Society of Automotive Engineers SAE J429 specifications. Grade 5 steel, composed of quenched and tempered medium carbon steel, is often used in applications where strength is the primary concern. The material is magnetic. The external hex drive has six flat sides that a wrench can grip to turn the screw from the side, enabling use when there is no space above the head for a driver.

Cap screws and hex bolts are threaded fasteners with thick hex-shaped heads that can be used with threaded nuts or in areas with limited clearance above the tapped (threaded) hole. Cap screws have slightly different dimensions than hex bolts and have a washer face underneath their unflanged hex head to act as a large bearing surface against the mating material.
