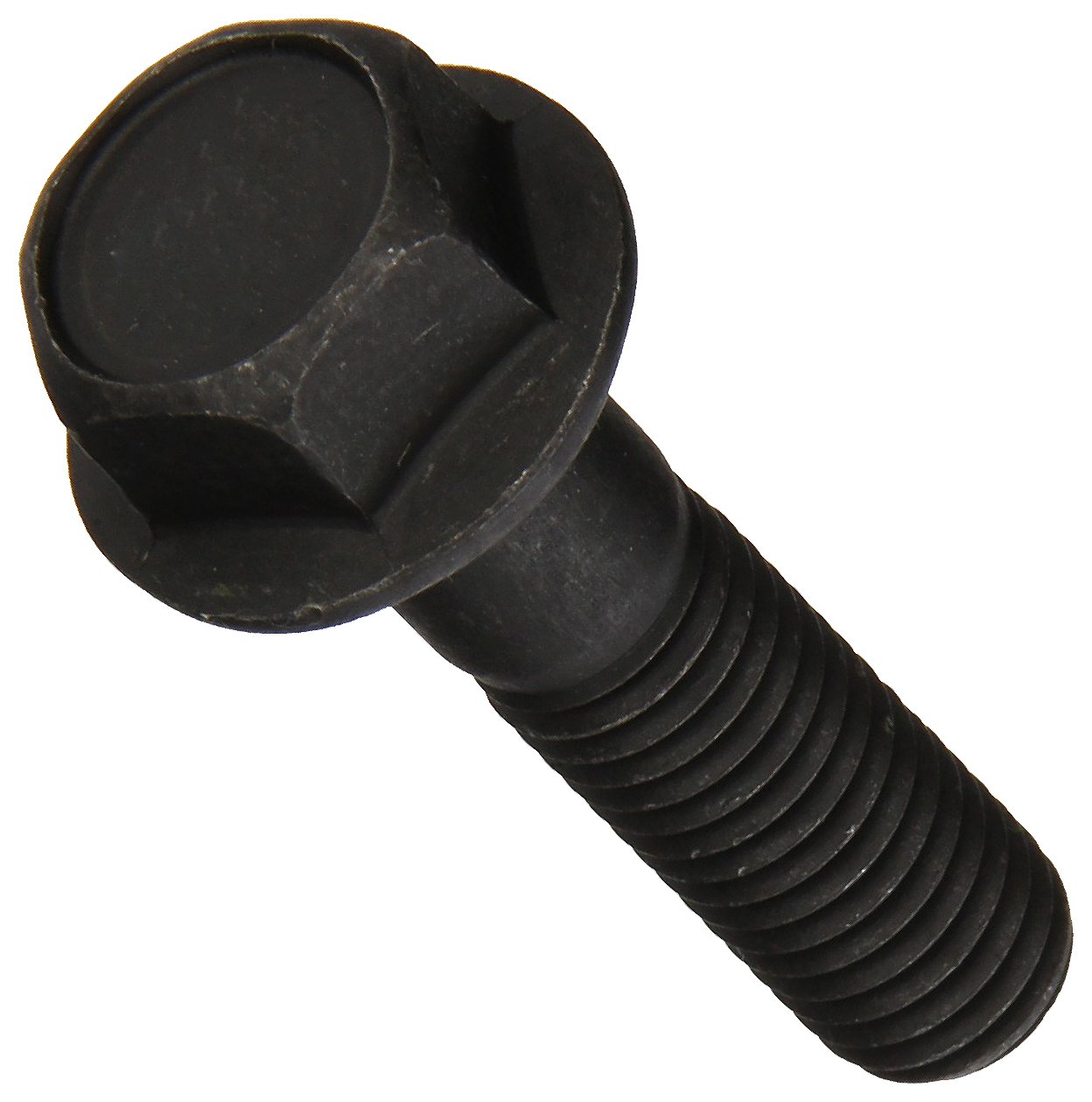

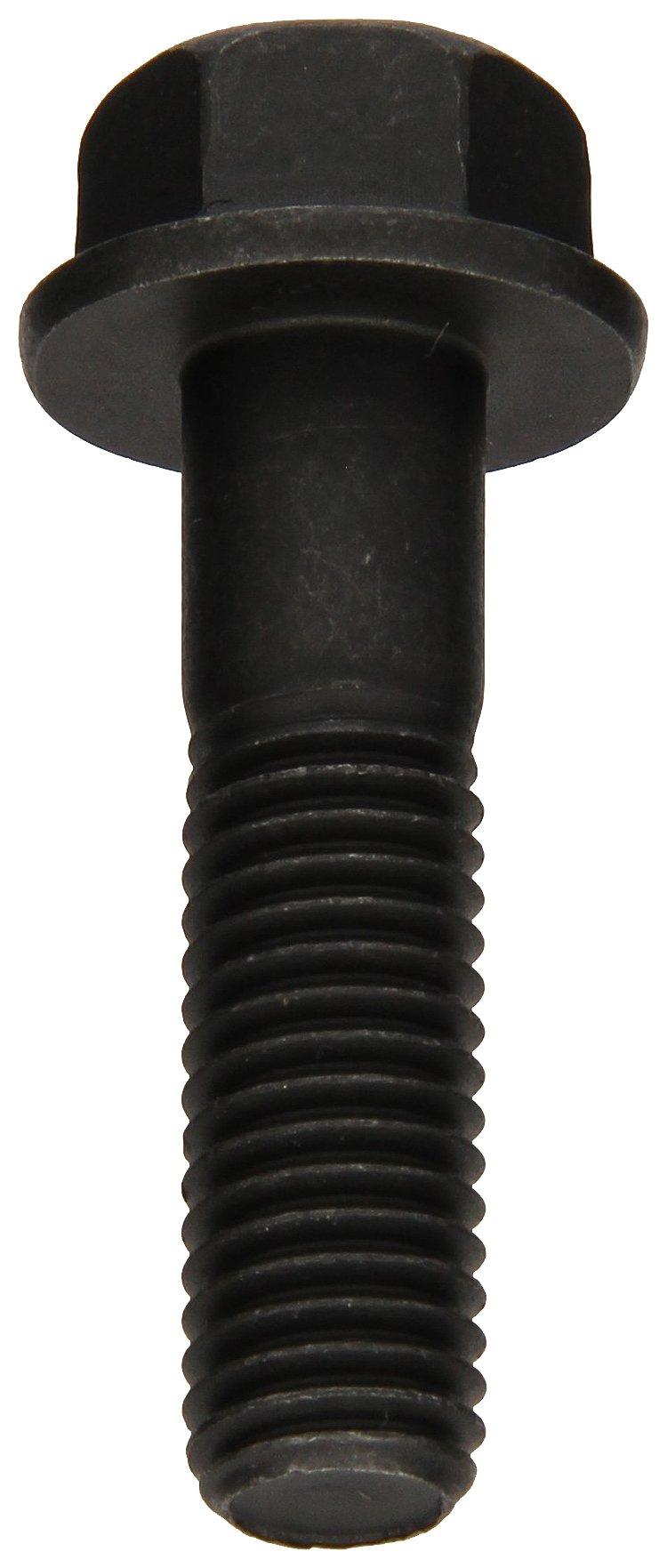

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

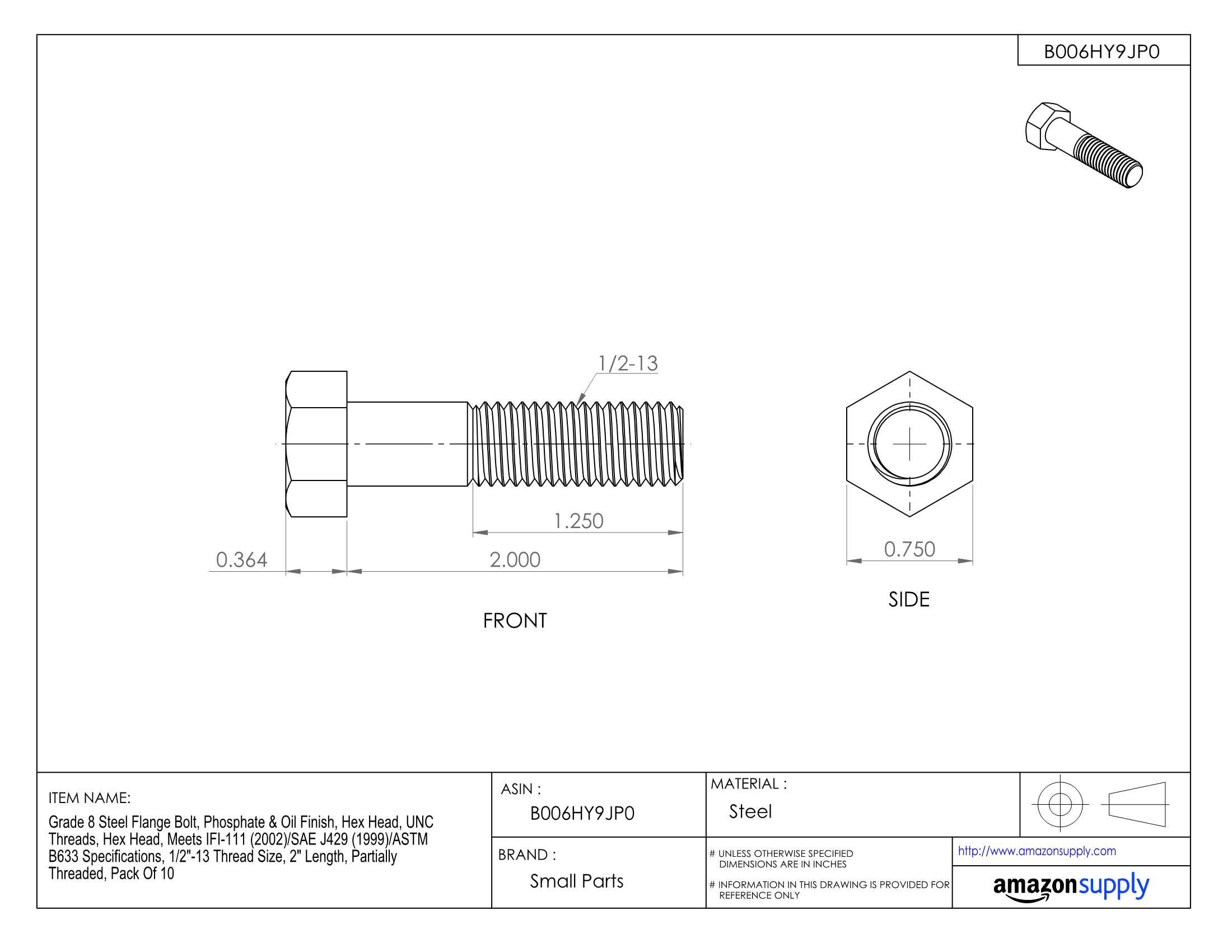

Steel Hex Bolt, Grade 8, Phosphate & Oil Finish, Flange Hex Head, External Hex Drive, Meets IFI 111/SAE J429, Flanged, Non-Serrated, 2" Length, Partially Threaded, 1/2"-13 UNC Threads, Imported (Pack of 10)

Be the first to review this item

ASIN B006HY9JP0

Product Specifications
Brand Name
Small Parts
Part Number
B006HY9JP0
Head Diameter
3/4  inches
Head Height
33/64  inches
Length
2  inches
Fastener Size
1/2"-13
Thread Size
1/2"-13
Thread Coverage
Partially Threaded
Flange Diameter
1.07  inches
Flange Thickness
0.08  inches
Import Designation
Imported
Pkg Qty
10
Tensile Strength Max
150000  PSI
Thread Class
2A
Thread Length
1.250  inches
Thread Style
UNC
Specification for this product family (See all  products)
Flange Type
Non-Serrated
Drive Style
External Hex
Exterior Finish
Phosphate & Oil
Specification Met
IFI 111 , SAE J429
Manufacturer Grade
Grade 8
Material Type
Steel
Head Style
Flange Hex
Special Features
Flanged
Thread Style
Right Hand
System of Measurement
Inch
Price:
$9.36
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 12 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Grade 8 steel is often used in applications where strength is the primary concern
  • Phosphate and oil coating provides corrosion resistance and lubricity
  • Flange hex head has a non-serrated flange for additional grip with the mating surface
  • Meets IFI 111 and SAE J429 specifications

Package Details

Shipping Weight: 1.65 pounds
Package Size: 4.4 x 4.1 x 1 inches

Product Description

The grade 8 steel hex bolt has a phosphate and oil finish, has a non-serrated flange hex head with an external hex drive, and meets Industrial Fasteners Institute IFI 111 and Society of Automotive Engineers SAE J429 specifications. Grade 8 steel, composed of quenched and tempered medium carbon alloy steel, is stronger than grade 5 steel and is often used in applications where strength is the primary concern. The material is magnetic. The phosphate and oil coating provides corrosion resistance and lubricity. The flange hex head has six flat sides that wrenches can grip to turn from the side, enabling use when there is no space above the head for a screwdriver. The non-serrated flange acts like a washer to increase the fastener's bearing surface and distribute the clamping force over a larger area, providing grip and reducing damage to mating surfaces.

Cap screws and hex bolts are threaded fasteners with thick hex-shaped heads that can be used with threaded nuts or in areas with limited clearance above the tapped (threaded) hole. Cap screws have slightly different dimensions than hex bolts and have a washer face underneath their unflanged hex head to act as a large bearing surface against the mating material.
