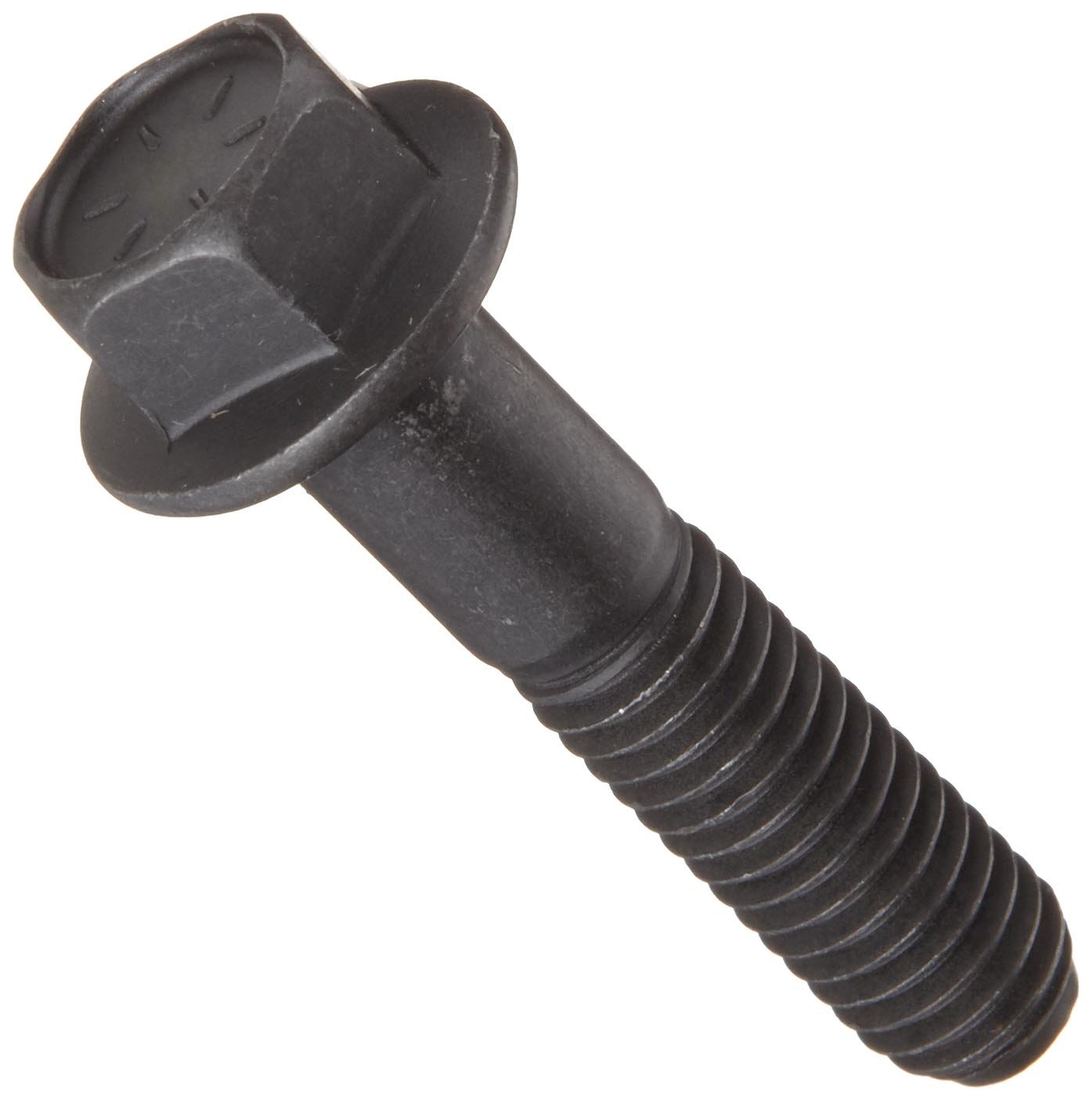

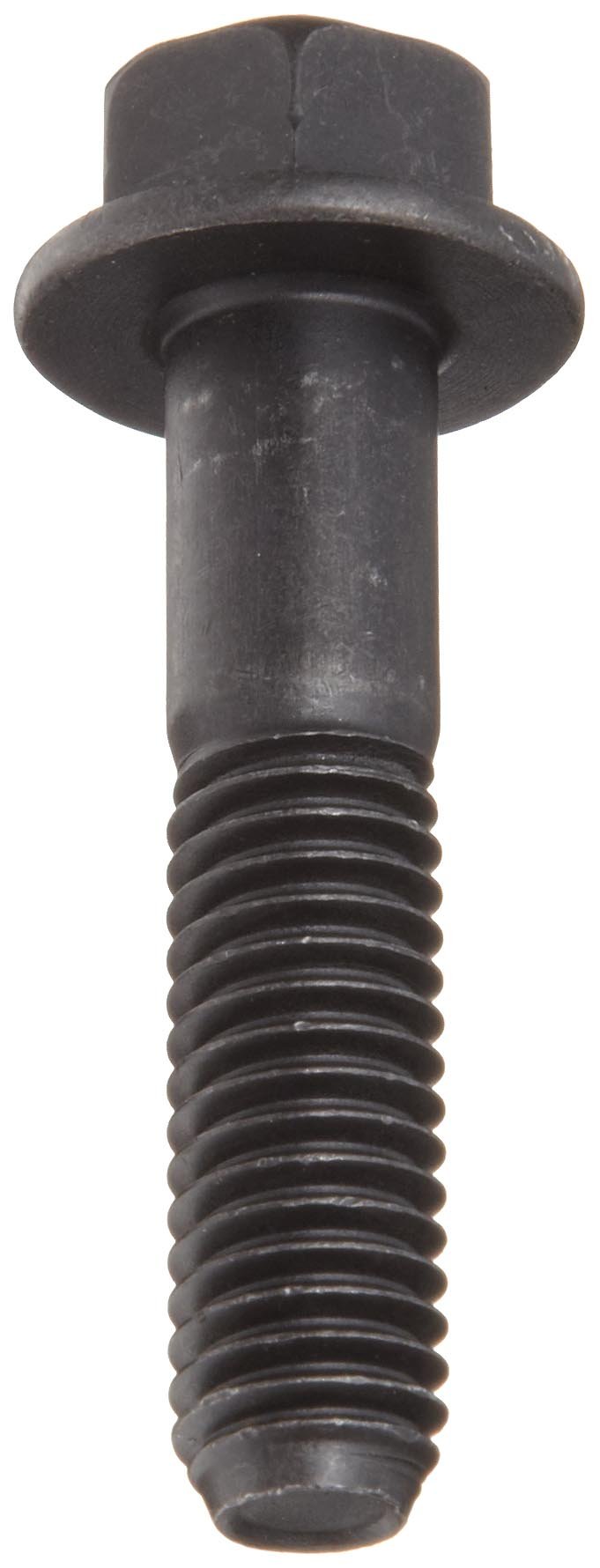

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Steel Hex Bolt, Grade 8, Phosphate & Oil Finish, Flange Hex Head, External Hex Drive, Meets IFI 111/SAE J429, Flanged, Non-Serrated, 2" Length, Partially Threaded, 7/16"-14 UNC Threads, Imported (Pack of 10)

Be the first to review this item


Product Specifications
Brand Name
Small Parts
Flange Diameter
0.93  inches
Flange Thickness
0.07  inches
Head Diameter
5/8  inches
Head Height
15/32  inches
Import Designation
Number of Items
Overall Length
2  inches
Part Number
Size Name
Tensile Strength Max
150000  PSI
Thread Class
Thread Coverage
Partially Threaded
Thread Length
1.125  inches
Thread Size
Thread Style
Specification for this product family (See all  products)
Drive Style
External Hex
Flange Type
Material Type
Exterior Finish
Phosphate & Oil
Specification Met
IFI 111 , SAE J429
Manufacturer Grade
Grade 8
Head Style
Flange Hex
Thread Style
Right Hand
Special Features
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 29? Order in-stock items in the next 21 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Grade 8 steel is often used in applications where strength is the primary concern
  • Phosphate and oil coating provides corrosion resistance and lubricity
  • Flange hex head has a non-serrated flange for additional grip with the mating surface
  • Meets IFI 111 and SAE J429 specifications

Package Details

Shipping Weight: 1.15 pounds
Package Size: 4.6 x 2.3 x 1.1 inches

Product Description

The grade 8 steel hex bolt has a phosphate and oil finish, has a non-serrated flange hex head with an external hex drive, and meets Industrial Fasteners Institute IFI 111 and Society of Automotive Engineers SAE J429 specifications. Grade 8 steel, composed of quenched and tempered medium carbon alloy steel, is stronger than grade 5 steel and is often used in applications where strength is the primary concern. The material is magnetic. The phosphate and oil coating provides corrosion resistance and lubricity. The flange hex head has six flat sides that wrenches can grip to turn from the side, enabling use when there is no space above the head for a screwdriver. The non-serrated flange acts like a washer to increase the fastener's bearing surface and distribute the clamping force over a larger area, providing grip and reducing damage to mating surfaces.

Cap screws and hex bolts are threaded fasteners with thick hex-shaped heads that can be used with threaded nuts or in areas with limited clearance above the tapped (threaded) hole. Cap screws have slightly different dimensions than hex bolts and have a washer face underneath their unflanged hex head to act as a large bearing surface against the mating material.
