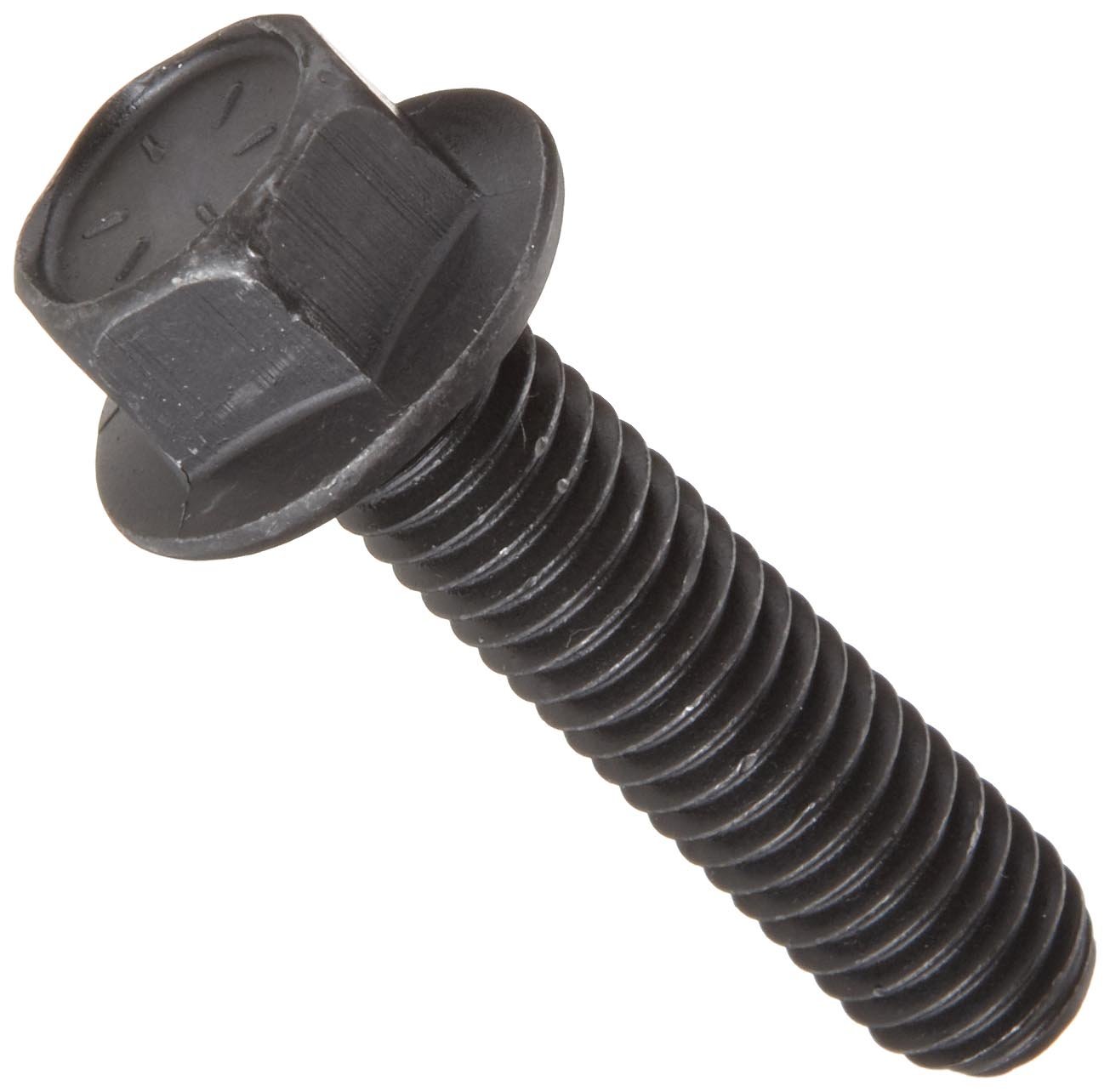

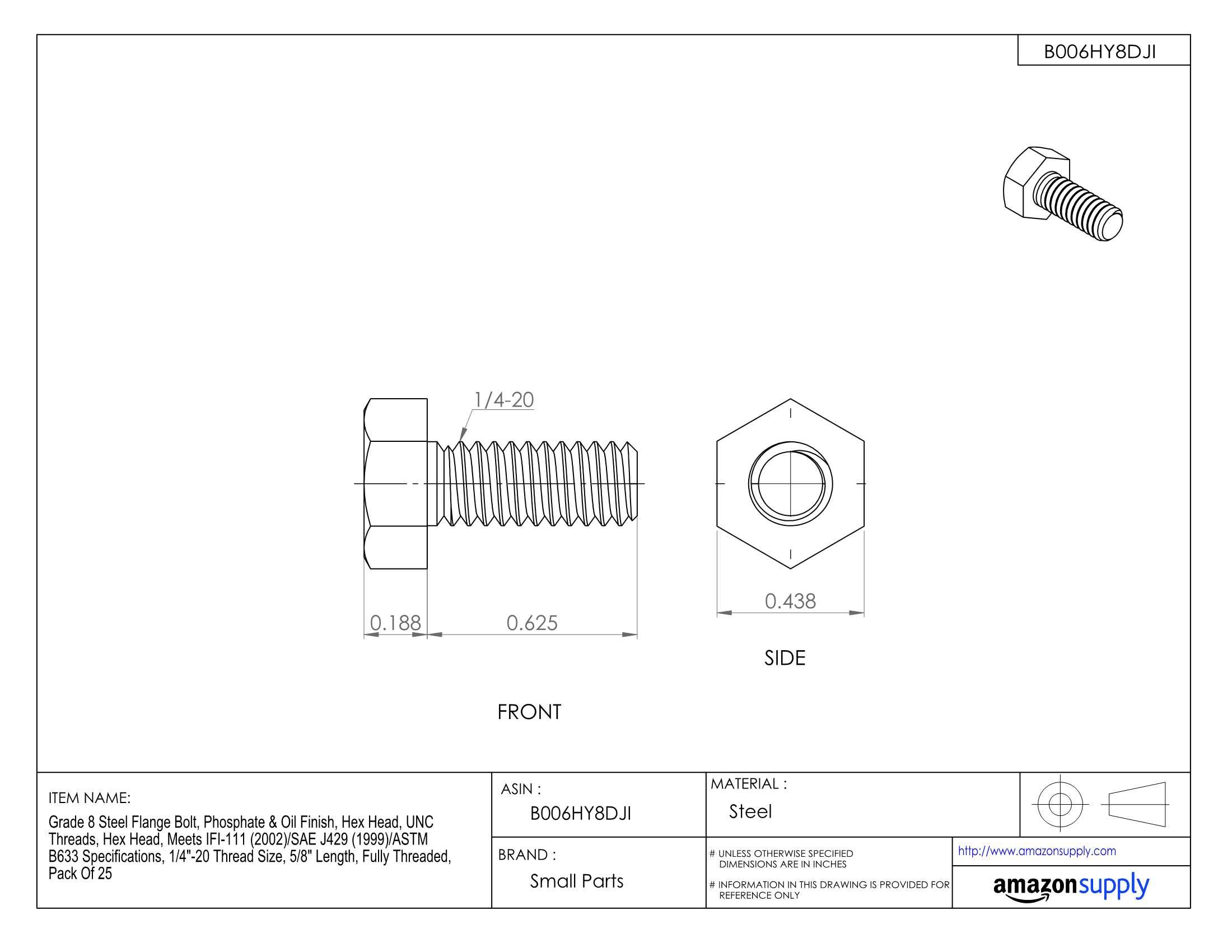

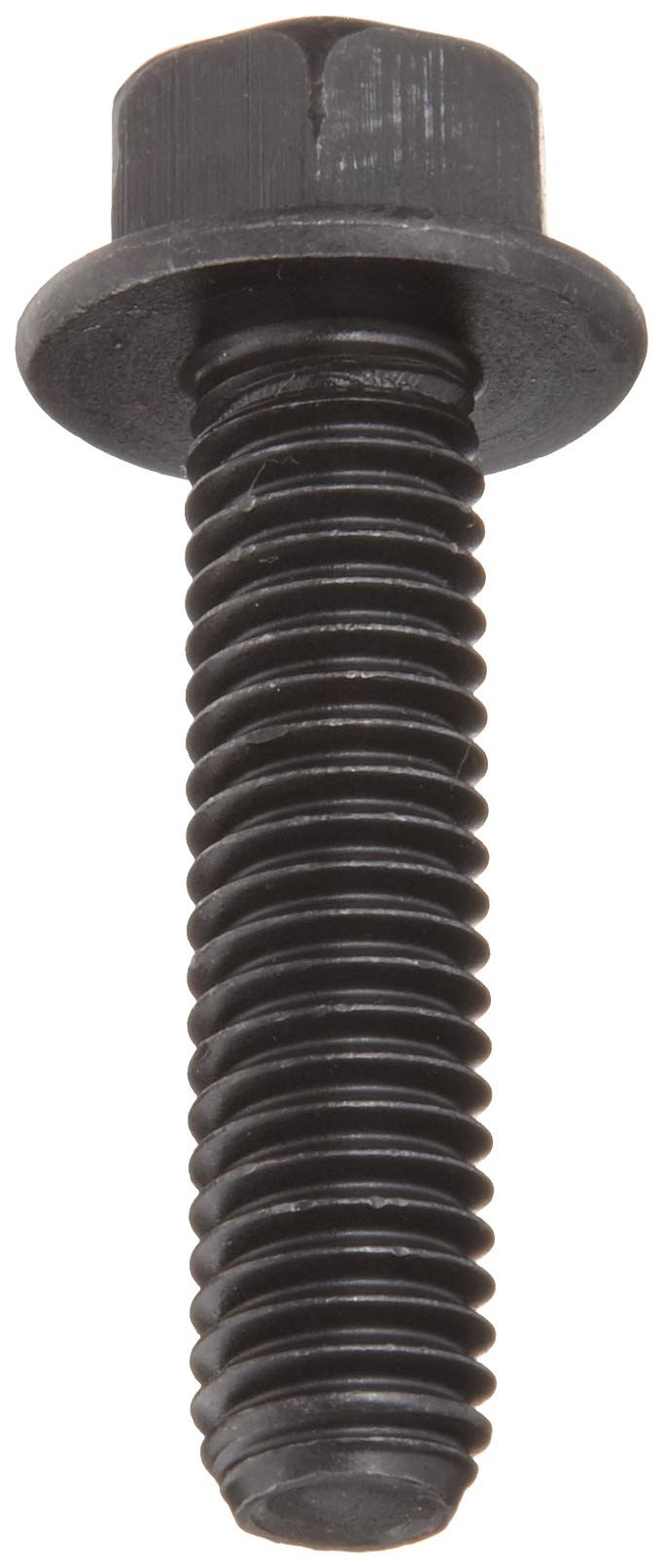

Grade 8 Steel Flange Bolt, Phosphate & Oil Finish, Hex Head, UNC Threads, Hex Head, Meets IFI-111 (2002)/SAE J429 (1999)/ASTM B633 Specifications, 1/4"-20 Thread Size, 5/8" Length, Fully Threaded, Pack Of 25
Be the first to review this item
ASIN B006HY8DJI
Specifications for this item
- Brand Name
- Small Parts
- Drive Style
- Hex
- Exterior Finish
- Phosphate & Oil
- Grade
- Grade 8
- Head Diameter
- 3/8 inches
- Head Height
- 9/32 inches
- Head Style
- Hex
- Length
- 5/8 inches
- Material Type
- Steel
- Part Number
- B006HY8DJI
- Pkg Qty
- 25
- Size
- 1/4"-20
- Specification Met
- IFI-111 (2002) , SAE J429 (1999) , ASTM B633
- System of Measurement
- Inch
- Thread Class
- 2A
- Thread Coverage
- Fully Threaded
- Thread Size
- 1/4"-20
- Thread Style
- UNC
- Thread Style
- Right Hand
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 13 hours 24 minutes and choose One-Day Shipping at checkout.
Package Details
Shipping Weight:
0.4 pounds
Package Size:
5.3 x 1.9 x 0.8 inches
