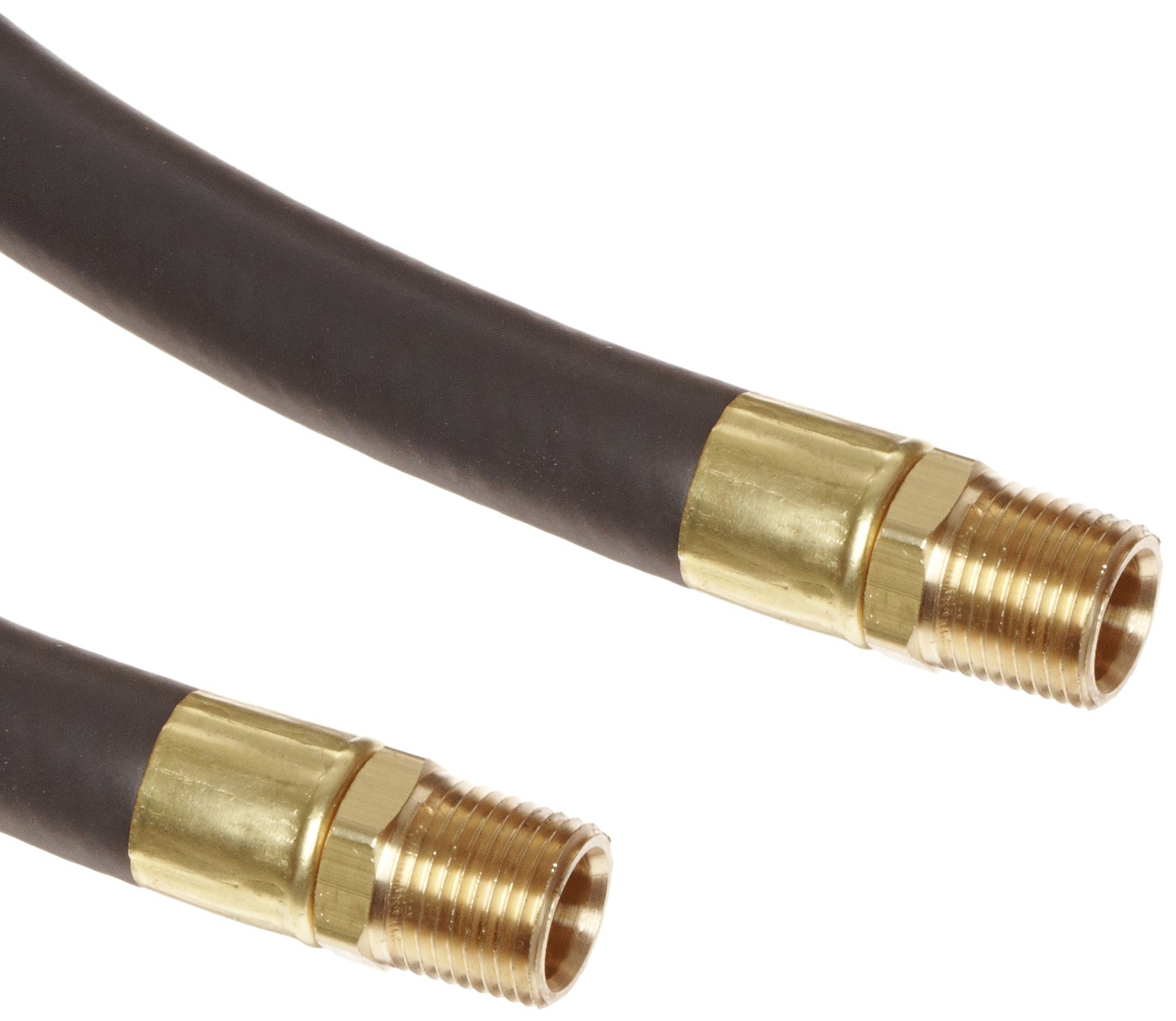

Goodyear EP Wingfoot Black Nitrile Rubber Air Hose Assembly, 1/2" Brass NPT Male Connection, 300 PSI Maximum Pressure, 24" Length, 1/2" ID

Be the first to review this item

ASIN B0070RSKPS

Specifications for this item
Part Number
56900612701000
Brand Name
Goodyear Engineered Products
Specification Met
RMA Class A
Reinforcement Material
Spiral Synthetic Yarn
Style Name
NPT Male
Number of Items
1
For Use With Product Type
Air
Color Name
Black
Material Type
Nitrile Rubber
Outside Diameter
55/64  inches
Outside Diameter
0.86  inches
Size Name
1/2"
Manufacturer Series Number
Wingfoot
Compatible Material
Air , Snubber
Upper Temperature Range
190  Degrees Fahrenheit
Inside Diameter
1/2  inches
Maximum Pressure
300  PSI
Connector Type
Threaded
UNSPSC Code
40142002
Maximum Working Pressure
300  PSI
Overall Length
24  inches
System of Measurement
Inch
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 2 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hose for conveying air in industrial, shop, maintenance and other applications requiring moderate oil resistance
  • Nitrile synthetic rubber, RMA Class A tube for high oil resistance, with a Buna-N-Vinyl RMA Class B nonconductive synthetic rubber cover for resistance to abrasion, ozone, and medium resistance to oil
  • Spiral synthetic yarn reinforcement for strength
  • Temperature range of -20 to +190 degrees F (-29 to +88 degrees C)
  • Two factory-installed brass male NPT couplings

Package Details

Shipping Weight: 6.4 pounds
Package Size: 18 x 18 x 2 inches

Product Description

The Goodyear Engineered Products Wingfoot nonconductive hose has a 1/2" inside diameter (ID) and is 24" in length. Its Rubber Manufacturers Association (RMA) Class A nitrile synthetic rubber tube is rated to undergo a maximum volume change of +25% and to maintain a minimum of 80% of its tensile strength after exposure to oil. Its black cover is resistant to abrasion and ozone, and is made of RMA Class B Chemivic, a Buna-N-Vinyl synthetic rubber that will undergo a maximum volume change of +65% and maintain at least 50% of its tensile strength after exposure to oil. This hose is reinforced with spiral synthetic yarn for the strength necessary to reach and maintain its maximum pressure rating of 300 psi, and it is capable of functioning effectively at temperatures ranging from -20 to +190 degrees F (-29 to +88 degrees C). It is rated with a minimum electrical resistance greater than one (1) megohm per inch of hose length at 1,000V DC, and comes equipped with two factory-installed brass male NPT couplings. This hose is manufactured for general purpose applications such as industrial air service, compressor lines, pneumatic tools, low-pressure spray, and other purposes where the need for oil resistance is moderate.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method to help determine the type of hose needed:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
