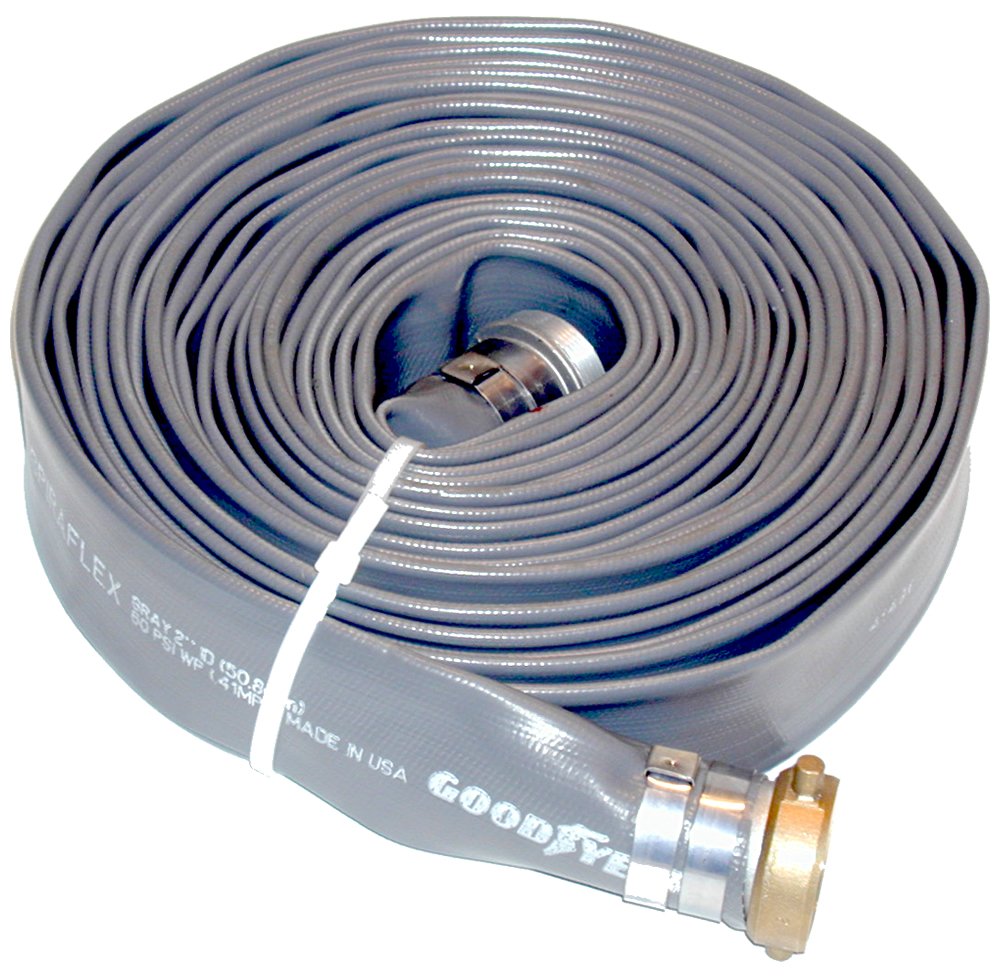

Goodyear EP Spiraflex Pliovic Compound Discharge Hose Assembly, Gray, Male X Female Water Shanks

Be the first to review this item

Product Specifications
Manufacturer Series Number
Upper Temperature Range
150  Degrees Fahrenheit
Reinforcement Material
Synthetic Fabric
Color Name
Material Type
Pliovic Compound
Connector Type
Male X Female Water Shanks
Brand Name
Goodyear Engineered Products
LowerTemperature Range
-10  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 17 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Size name Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All
Currently showing 1-4 of 4
1.5" I.D., 50' Length 1 B008KSDW9A yes $51.35 Buy Options
2" I.D., 50' Length 1 B008KSDWRC yes $69.85 Buy Options
3" I.D., 50' Length 1 B008KSDXGW yes $102.05 Buy Options
4" I.D., 50' Length 1 B008KSDXY4 yes $157.11 Buy Options

Key Features

  • Light duty water discharge hose for applications in mining, construction, industry, agricultural and marine service
  • Black Pliovic (PVC) compound tube and grey Pliovic (PVC) compound cover for flexibility
  • Synthetic fabric reinforcement for strength
  • Temperature range of -10 to +150 degrees F (-23 to +66 degrees C)
  • Male and female water shank couplings

Product Description

This light duty branded discharge hose is manufactured for water discharge applications in mining, construction, industry, agricultural and marine service. Its tube and cover are both made of a Pliovic (PVC) compound for a lay-flat construction with maximum flexibility and resistance to moisture, oils, alkalis, weak acids, and mild abrasives. It is reinforced with a synthetic fabric for strength in light duty applications, and is capable of functioning effectively at temperatures ranging from -10 to +150 degrees F (-23 to +66 degrees C). This hose comes fitted with male and female water shank couplings.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
