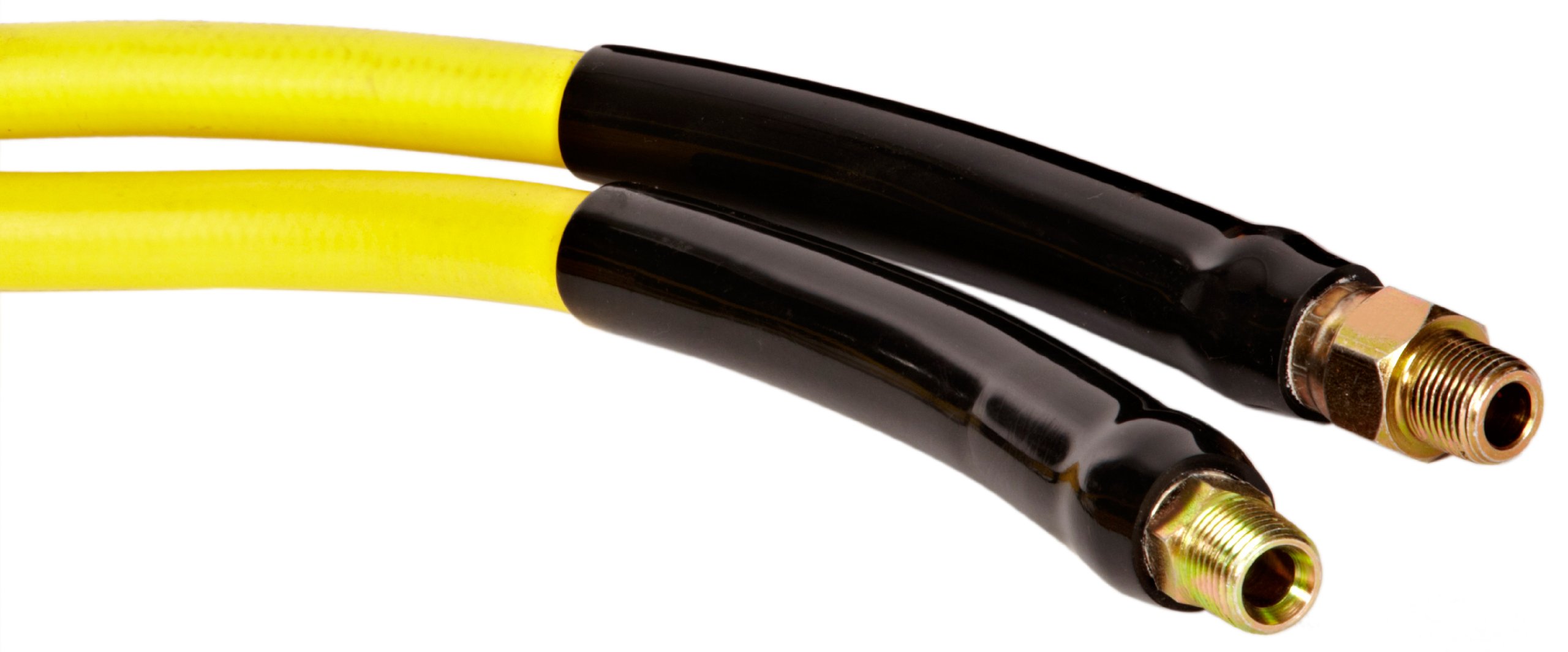

Goodyear EP Gauntlet 1500 Yellow Rubber Pressure Washer Hose Assembly, 3/8" Male NPT x Male NPT Swivel Connection, 1500 PSI Maximum Pressure, 100' Length, 3/8" ID

Be the first to review this item

ASIN B0070R9B74

Specifications for this item
Part Number
H-WASH-GAUNT-1500-0038-1200-MXMS
Brand Name
Goodyear Engineered Products
Specification Met
RMA Class A
Reinforcement Material
Braided steel wire
Maximum Bend Radius
N/A
Style Name
Male NPT x Male NPT Swivel
Number of Items
1
For Use With Product Type
Pressure Washer
Color Name
Yellow
Material Type
Rubber
Outside Diameter
11/16  inches
Outside Diameter
0.69  inches
Size Name
3/8"
Manufacturer Series Number
Gauntlet 1500
Upper Temperature Range
200  Degrees Fahrenheit
Compatible Material
Water
Inside Diameter
3/8  inches
Maximum Pressure
1500  PSI
Connector Type
Threaded
UNSPSC Code
40142008
Maximum Working Pressure
1500  PSI
Overall Length
100  feet
System of Measurement
Inch
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 20 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hose for pressure washer equipment with working pressures up to 1500 psi
  • Nitrile synthetic rubber tube and RMA Class A Carbryn (carboxylated nitrile synthetic rubber) cover for maximum resistance to oils
  • Braided synthetic yarn reinforcement for maximum strength
  • Temperature range of -20 to +200 degrees F (-29 to +93 degrees C)
  • Two male NPT swivel couplings

Package Details

Shipping Weight: 10.1 pounds
Package Size: 16 x 15 x 4 inches

Product Description

This branded hose is manufactured for pressure washer equipment with working pressures up to 1500 psi. Its nitrile synthetic rubber tube offers maximum resistance to both petroleum-based oils and animal fats, while its Carbryn (carboxylated nitrile synthetic rubber) cover is highly resistant to both abrasion and oil, and has an RMA Class A rating, which means that after exposure to oil it will undergo a maximum volume change of +25% and will retain at least 80% of its tensile strength. Its braided synthetic yarn reinforcement provides the strength necessary to reach and maintain its maximum pressure rating, and it is capable of functioning effectively at temperatures ranging from -20 to +200 degrees F (-29 to +93 degrees C). This hose comes fitted with two male NPT swivel couplings. It is not recommended for steam service.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
