Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

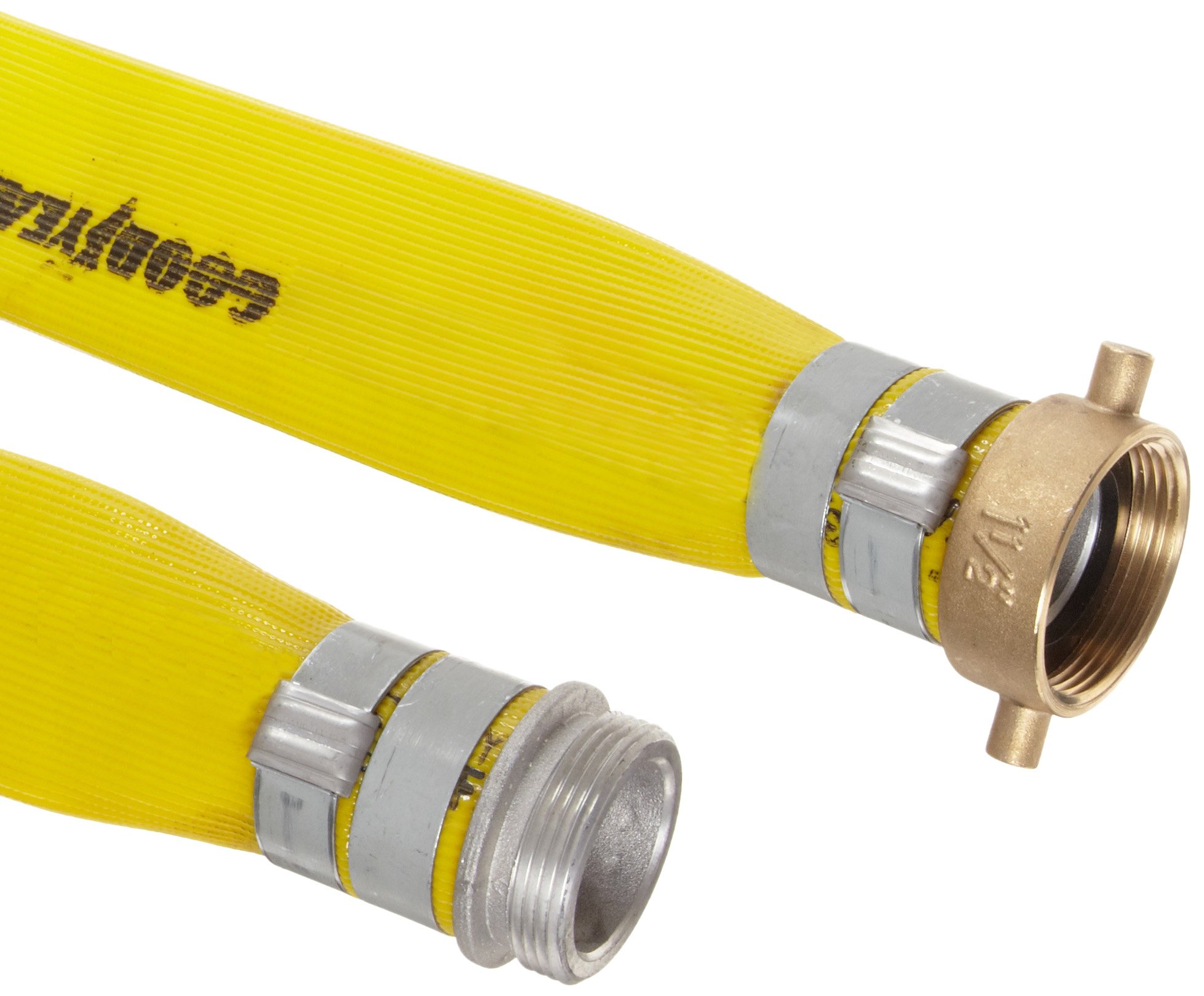

Goodyear EP Spiraflex Yellow Heavy Duty PVC Discharge Hose Assembly, Aluminum NPSH Male x Brass Female Swivel Couplings

Be the first to review this item

Product Specifications
For Use With Product Type
Color Name
Material Type
PVC (Polyvinyl Chloride)
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Compatible Material
Upper Temperature Range
150  Degrees Fahrenheit
Reinforcement Material
Synthetic Fabric
Specification Met
MSHA 2G-14C/15
Maximum Pressure
200  PSI
Connector Type
Style Name
Aluminum NPSH Male x Brass Female Swivel
System of Measurement
LowerTemperature Range
-10  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, May 6? Order in-stock items in the next 18 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Inside diameter string Outside diameter Maximum bend radius Item length string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All
Currently showing 1-3 of 3
1-1/2 inches 1-49/64 inches N/A inches 50 feet 1 B0070RVJF6 yes $247.84 Buy Options
2 inches 2-11/32 inches N/A inches 50 feet 1 B0070RVHHQ yes $396.00 Buy Options
3 inches 3-13/32 inches N/A inches 50 feet 1 B0070RVIDO yes $160.05 Buy Options

Key Features

  • MSHA 2G-14C/15 flame resistant Pliovic (PVC) cover and Pliovic (PVC)/nitrile rubber blend tube for limited oil and chemical application
  • Heavy duty discharge hose for applications in mining, construction, industry, agriculture and marine service
  • Synthetic fabric reinforcement for strength
  • Temperature range of -10 to +150 degrees F (-23 to +66 degrees C)
  • Aluminum NPSH male and brass female swivel couplings

Product Description

This heavy duty, branded discharge hose is suitable for limited oil and chemical applications in mining, construction, industry, agriculture and marine service. The yellow tube is a Pliovic (PVC)/nitrile rubber blend with limited oil and chemical resistance. Its Pliovic (PVC) MSHA 2G-14C/15 cover is resistant to moisture, oils, and abrasives, and is approved by the Mine Safety and Health Administration (MSHA) as flame resistant. This lay-flat hose is reinforced with synthetic fabric for strength required in heavy duty applications. It is capable of operating effectively at temperatures ranging from -10 to +150 degrees F (-23 to +66 degrees C), and comes equipped with aluminum NPSH male and brass female swivel couplings.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
