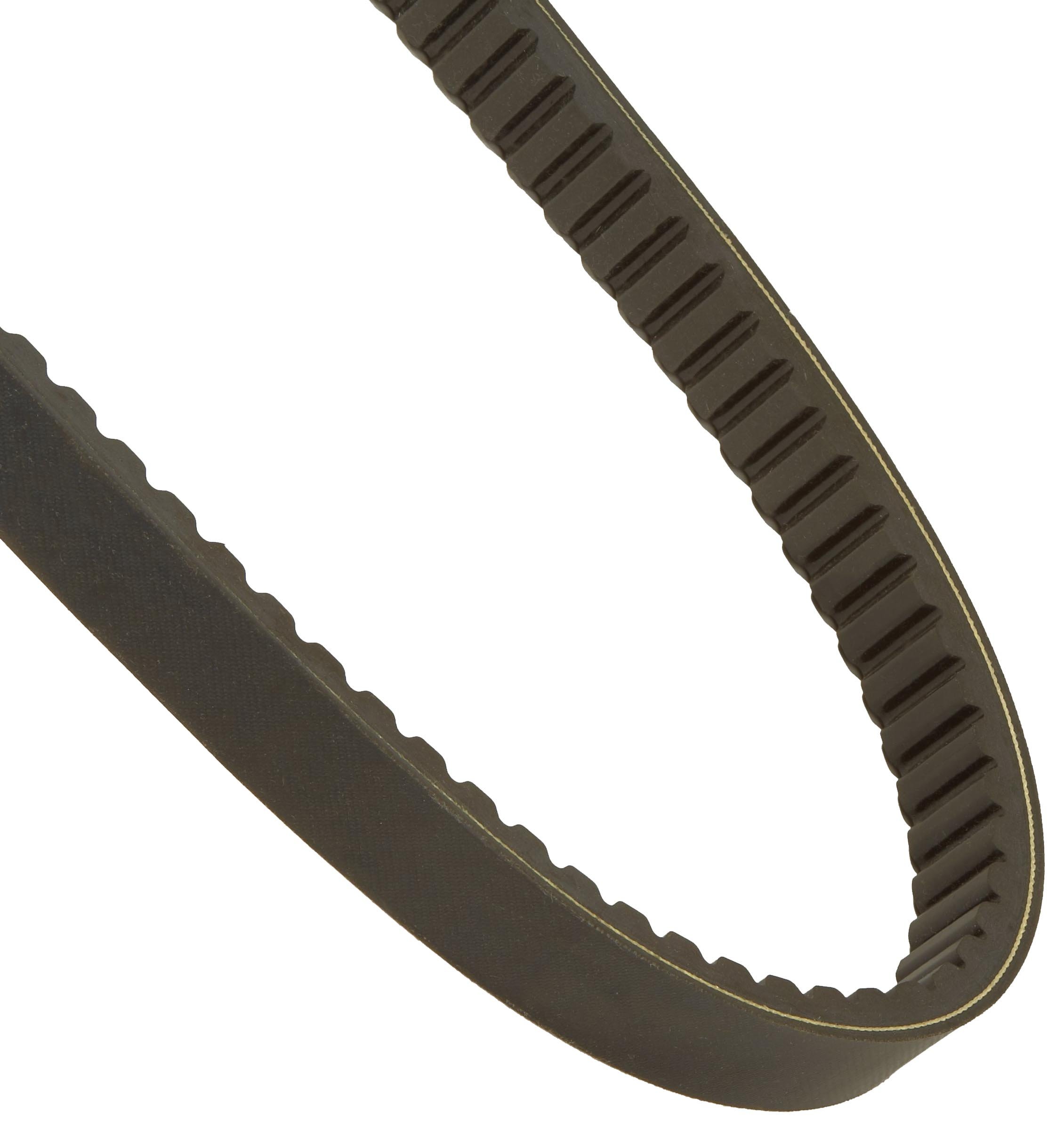

Goodyear Engineered Products Variable Speed V-Belt, 2426V343, 26 Degree Angle Pulley, Cogged, 1.5" Top Width, 0.47" Height, 34.3" Pitch Length

Be the first to review this item

ASIN B004HFRUGG

Specifications for this item
Number of Items
1
Overall Width
1.5  inches
Color Name
Black
Material Type
Rubber
Part Number
20044342
Trade Size
2426V343
Brand Name
Goodyear Engineered Products
Size Name
34.3 inches
Manufacturer Series Number
Variable Speed
Cross Section
2426V
Special Features
26 Degree Angle Pulley , Cut-Edge
Overall Length
34.3  inches
System of Measurement
Inch
List price:
$131.30
Price:
$51.86
You save:
$79.44 (61%)
Quantity:

Currently Unavailable We don't know when or if this item will be back in stock.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Durable variable speed profile
  • Super strong Flexten tensile members
  • Fiber-reinforced, latest compounded technology compression section; High-horsepower capacity
  • Milled edge construction for superior dimensional stability
  • Oil, heat, ozone, and abrasion resistant; Static conductive

Package Details

Shipping Weight: 1.1 pounds
Package Size: 15 x 2.7 x 1.5 inches

Product Description

Goodyear Engineered Products Variable Speed belts are used on variable speed sheave drives requiring exact speed control and maximum range of speed changes. Variable Speed belts provide a longer life on the toughest drives. They are ideal for recreational equipment, agricultural applications, and machine tools. Common applications include use in: exercise equipment; automobiles; medical equipment; power equipment; farm equipment and machine tools. Goodyear Engineered Products Variable Speed belts deliver the speed and horsepower your drives were designed to achieve. They have excellent transverse rigidity and exceptional flexibility, preventing buckling at minimum diameter settings where belt stresses are greatest. Firm gripping action in the contact area provides positive traction for precise, immediate response. Together, they assure reliable, predictable transmission of maximum power over the drive’s full operating range. Top performance results in longer life, which translates to less downtime for belt maintenance and more productivity from equipment, which leads to greater operating economy. In addition, the precision forming that goes into every one of Goodyear Engineered Products Variable Speed belts assures a completely uniform cross section. This allows even tracking and smooth running without any vibration problems. As a result, the life of the belt—as well as bearings, sheaves, and other drive components—is significantly extended. The belts are built thin with precise, uniform cogs on the underside for maximum lengthwise flexibility. They can be used on small pulley drives without any sacrifice of gripping action or cross rigidity. Cogging also minimizes bottom cracking, a major cause of premature failure. Flexten tension cords get their muscle from a special tempering for maximum strength and resilience. Goodyear Engineered Products Variable Speed belts have the dimensional stability they need to carry more horsepower and to experience less elongation over the life of the belt.
