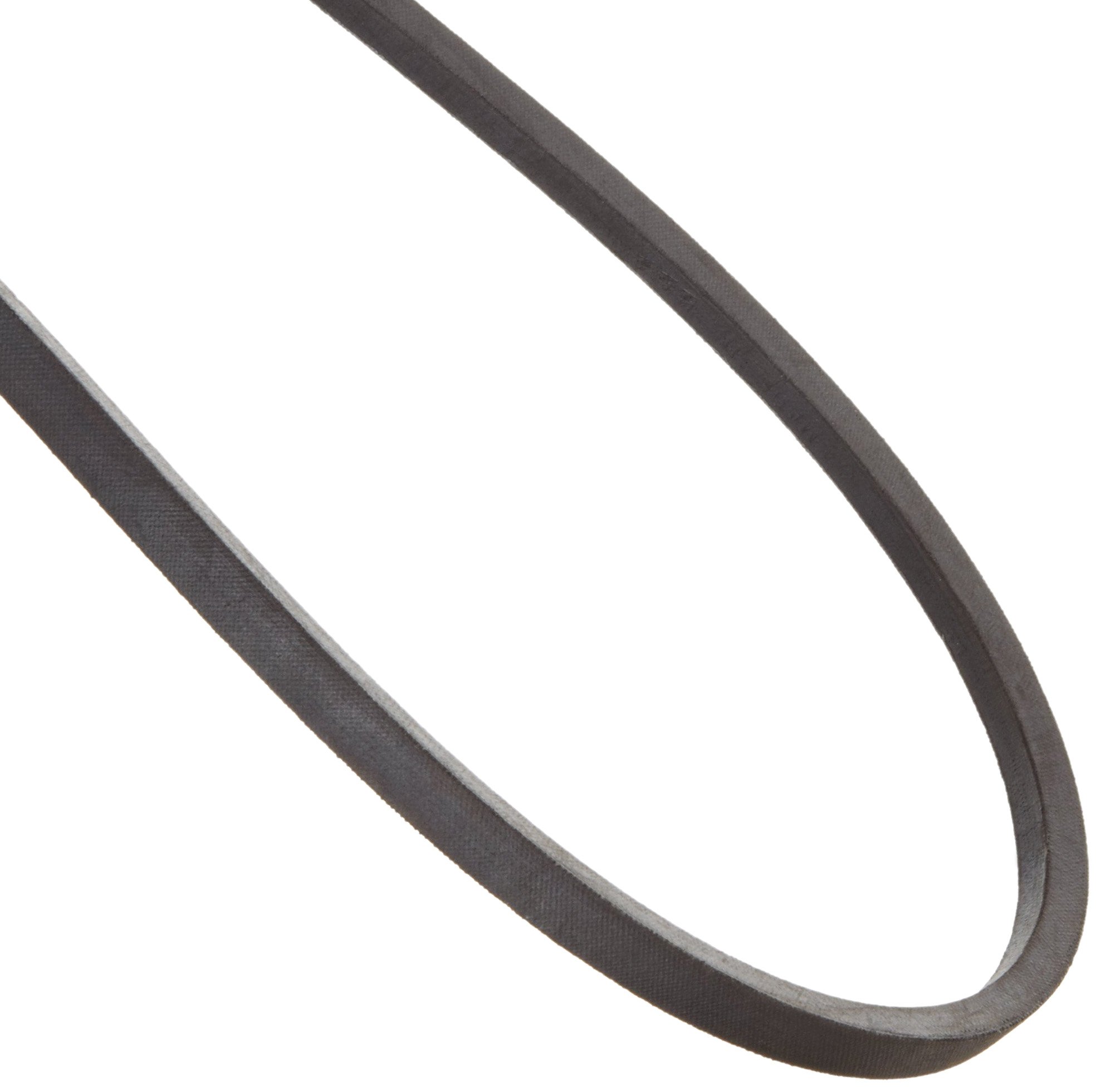

Goodyear Engineered Products HY-T Plus V-Belt, B Profile, 0.66" Width

Be the first to review this item

Product Specifications
Height
0.41  inches
Width
0.66  inches
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
HY-T Plus
Cross Section
B
UNSPSC Code
26111801
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 4 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 130 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 130 Next 20 »
51" B51 B004ELAA6A yes $14.64 Buy Options
124" B124 B00006U0BL yes $26.73 Buy Options
62" B62 B004ELA9OI yes $15.03 Buy Options
89" B89 B004ELA8TY yes $17.80 Buy Options
85" B85 B004ELA8YE yes $18.52 Buy Options
83" B83 B004ELA916 yes $18.31 Buy Options
90" B90 B004ELA8T4 yes $17.88 Buy Options
123" B123 B004I43D44 yes $26.25 Buy Options
130" B130 B004I43D3A yes $28.07 Buy Options
330" B330 B004I43COK yes $62.06 Buy Options
122" B122 B00006U0BK yes $22.69 Buy Options
360" B360 B004I43CMM yes $58.21 Buy Options
394" B394 B004I43CKO yes $72.98 Buy Options
120" B120 B00006U0BJ yes $22.89 Buy Options
118" B118 B00006U0BI yes $20.48 Buy Options
22" B22 B004ELACO0 yes $8.05 Buy Options
111" B111 B00006U0BF yes $19.65 Buy Options
23" B23 B004ELACL8 yes $8.29 Buy Options
107" B107 B00006U0BC yes $21.51 Buy Options
24" B24 B004ELACJA yes $8.57 Buy Options

Key Features

  • B profile HY-T Plus Classical V-belt, 0.41" high and 0.66" wide
  • Fits small diameter pulleys with short-center distances for high-speed operation
  • Crush-resistant cushion maintains shape and fit for longer service life
  • Vytacord tension members add synthetic reinforcement for tensile strength
  • Oil- and abrasion-resistant fabric backing provides flexibility and strength

Product Description

The B profile HY-T Plus Classical V-belt is 0.41” high, 0.66” wide, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable in industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for drives with small diameter pulleys and short-center distances. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Plus Classical V-belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The belt is backed in oil-and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the belt. The cushion of the HY-T Plus Classical V-belt is crush-resistant, reducing downtime and belt replacement cost over time.

Traditional classical belts are designed for operating at higher speeds over small diameter pulleys and short-center distances. They can be used in multiple V-belt drives and are used frequently in abusive environments such as farming and manufacturing. They are constructed to withstand the heat of the outdoors and oily, dirt-filled manufacturing environments.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
