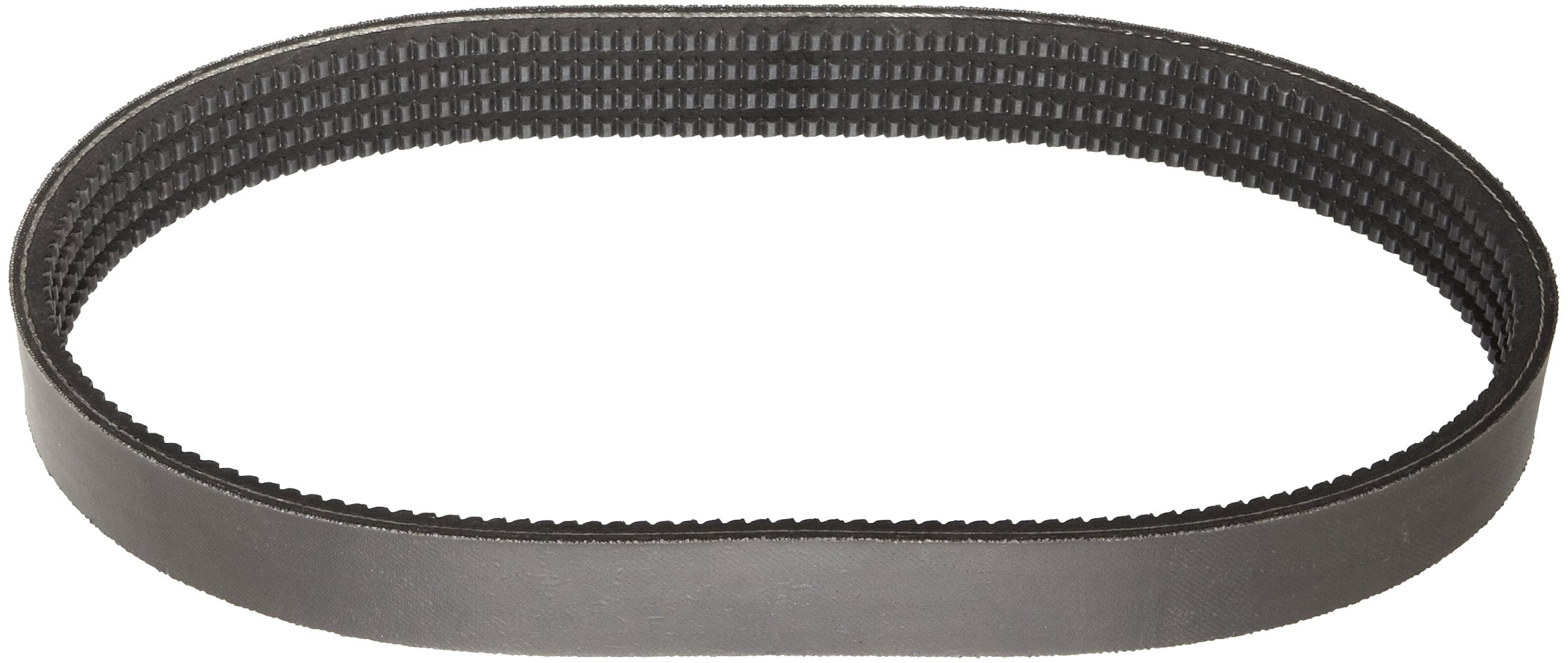

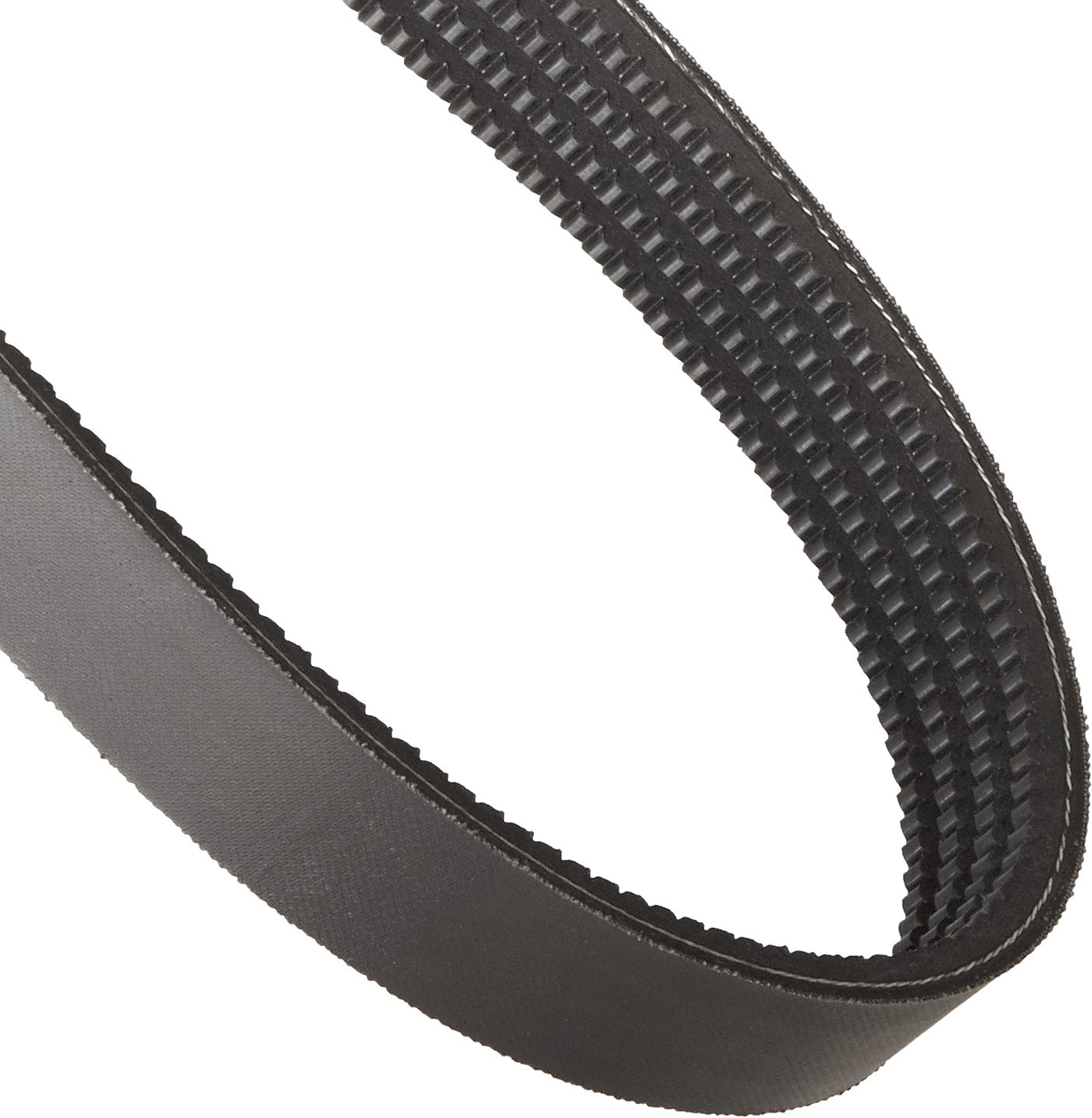

Goodyear Engineered Products HY-T Wedge Torque Team V-Belt, 3VX Profile, Banded & Cogged, 4 Rib, 1.5" Width

Be the first to review this item

Product Specifications
Height
0.31  inches
Width
1.5  inches
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
HY-T Wedge Torque Team
Cross Section
3VX
Style Name
4 Rib
UNSPSC Code
26111801
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 18 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 28 Next 8 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 28 Next 8 »
42.5" 4/3VX425 B004ELA8LC yes $44.40 Buy Options
47.5" 4/3VX475 B004ELA8B2 yes $48.98 Buy Options
45" 4/3VX450 B004ELA8FI yes $45.67 Buy Options
50" 4/3VX500 B004ELA87G yes $51.05 Buy Options
112" 4/3VX1120 B004ELA5G0 yes $106.29 Buy Options
25" 4/3VX250 B004ELA9V6 yes $37.10 Buy Options
118" 4/3VX1180 B004ELA51U yes $119.60 Buy Options
26.5" 4/3VX265 B004ELA9QG yes $43.95 Buy Options
125" 4/3VX1250 B004EEPB0C yes $113.25 Buy Options
30" 4/3VX300 B004ELA9FM yes $39.67 Buy Options
33.5" 4/3VX335 B004ELA97K yes $46.29 Buy Options
132" 4/3VX1320 B000078IEX yes $134.20 Buy Options
35.5" 4/3VX355 B004ELA920 yes $44.11 Buy Options
28" 4/3VX280 B00006UD4O yes $44.49 Buy Options
37.5" 4/3VX375 B004ELA8WQ yes $48.03 Buy Options
40" 4/3VX400 B004ELA8QW yes $42.89 Buy Options
67" 4/3VX670 B004ELA7F4 yes $60.31 Buy Options
71" 4/3VX710 B004ELA7A4 yes $59.77 Buy Options
75" 4/3VX750 B004ELA73G yes $67.60 Buy Options
80" 4/3VX800 B004ELA6UU yes $67.44 Buy Options

Key Features

  • 3VX profile banded V-belts with a 0.375" top width and narrow, cogged profile rib
  • Cogged construction provides the flexibility required for short-center distances
  • Narrow design reduces belt drive width and weight for improved transmission of horsepower
  • 4-rib joined construction belt so all ribs pull together simultaneously for improved traction and efficiency
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Wedge Torque Team 3VX profile, cogged, 0.375” top width, 4-rib banded V-belt is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and short-center applications. This cogged belt has a 0.375” top width, is approximately 1.5” in total width, and is manufactured in a 4-ribbed joined construction for increased flexibility and heat dissipation. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Wedge belt’s narrow design allows the use of smaller or fewer belts than classical V-belts to transmit an equivalent load, maximizing power transmission efficiency by reducing drive weight and size. It is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow to dissipate heat and prolong belt life. The belt is backed in oil-and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt. The fabric bonds to the V-sections to maintain the singularity of the belt. Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
