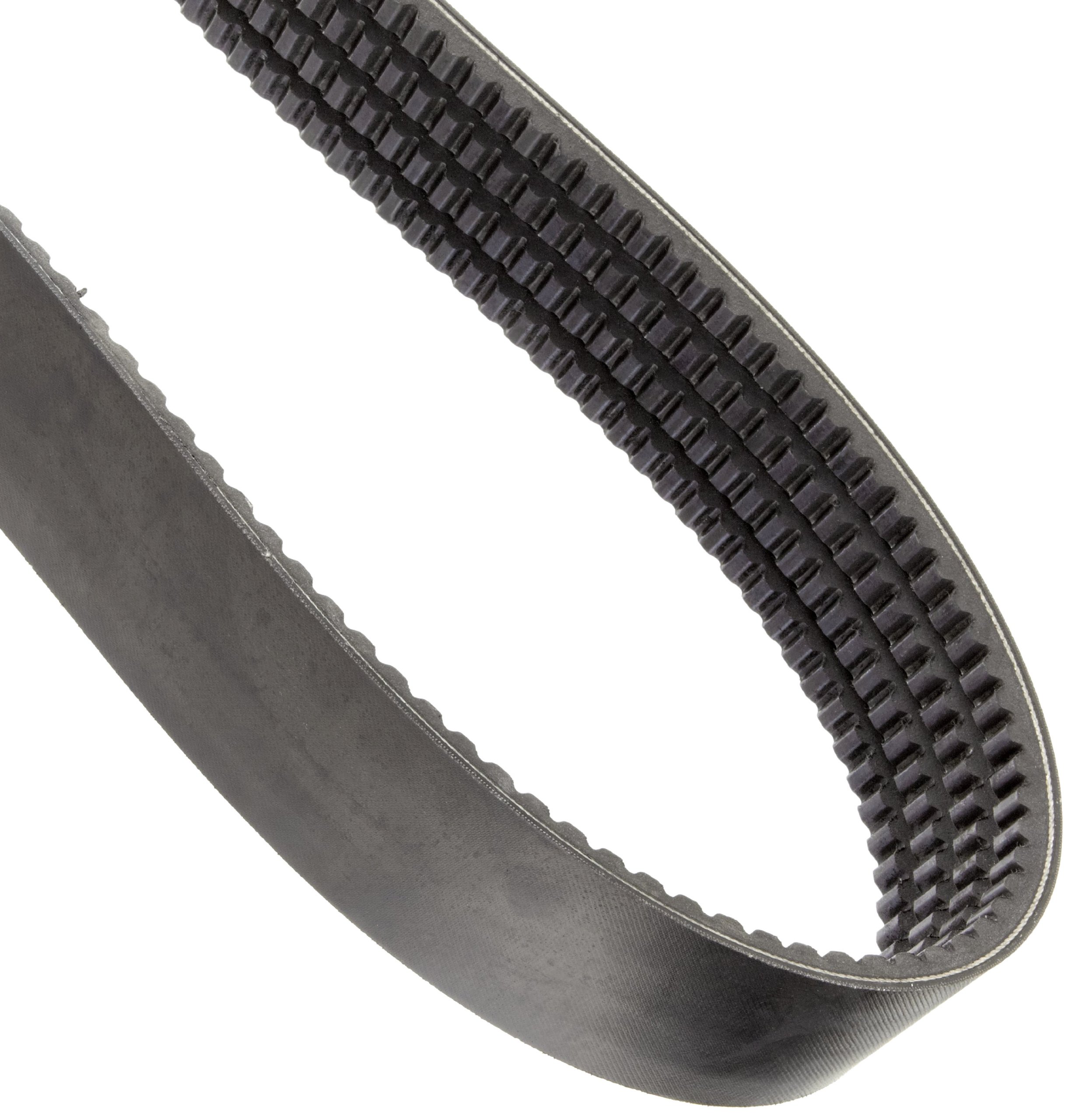

Goodyear Engineered Products HY-T Torque Team V-Belt, BX Profile, Banded & Cogged, 4 Rib, 2.64" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
HY-T Torque Team
Width
2.64  inches
Cross Section
BX
Material Type
Rubber
Color Name
Black
Style Name
4 Rib
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 28? Order in-stock items in the next 1 day 14 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 55 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 55 Next 20 »
81" 4/BX81 B004ELA380 1 $73.16 Buy Options
99" 4/BX99 B004ELA2KE 1 $87.64 Buy Options
97" 4/BX97 B004ELA2OA 1 $86.48 Buy Options
96" 4/BX96 B004ELA2P4 1 $85.62 Buy Options
95" 4/BX95 B004ELA2PY 1 $84.86 Buy Options
93" 4/BX93 B000076VUT 1 $83.17 Buy Options
90" 4/BX90 B00006TQS3 1 $79.70 Buy Options
88" 4/BX88 B004ELA2WC 1 $78.50 Buy Options
87" 4/BX87 B004ELA2Y0 3 $67.87 Buy Options
85" 4/BX85 B004ELA30I 2 $66.63 Buy Options
84" 4/BX84 B004ELA31M 1 $66.42 Buy Options
83" 4/BX83 B004ELA33U 1 $75.37 Buy Options
82" 4/BX82 B004ELA35I 1 $74.97 Buy Options
80" 4/BX80 B004ELA39Y 1 $72.30 Buy Options
79" 4/BX79 B004ELA3BM 1 $71.50 Buy Options
78" 4/BX78 B004ELA3EE 1 $67.41 Buy Options
77" 4/BX77 B00006U1ZY 1 $69.08 Buy Options
75" 4/BX75 B004ELA3JO 1 $72.09 Buy Options
74" 4/BX74 B00008A42H 2 $58.29 Buy Options
73" 4/BX73 B004ELA3MQ 1 $65.90 Buy Options

Key Features

  • B profile banded V-belt with a 2.64" total top width
  • Cogged construction provides the flexibility required for short-center distances
  • 4-rib joined construction belt so all ribs pull together simultaneously for improved traction and efficiency
  • Interior cogs provide large surface area to dissipate heat, prolonging belt life
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Torque Team B profile cogged V-belt has a 2.64” total top width, 4 ribs, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and short-center applications. The belt has 4 individual ribs, each measuring 0.66” wide at the top; they are bonded together by fabric to increase flexibility and heat dissipation. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Torque belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow, which enhances cooling. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt. The fabric bonds to the V-sections to maintain the singularity of the belt.

Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
