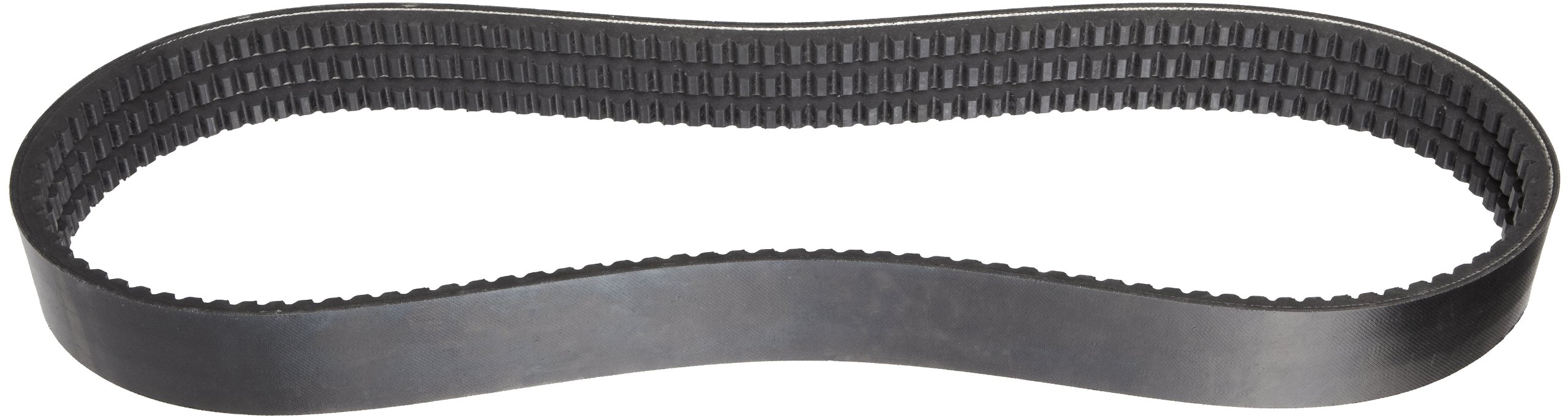

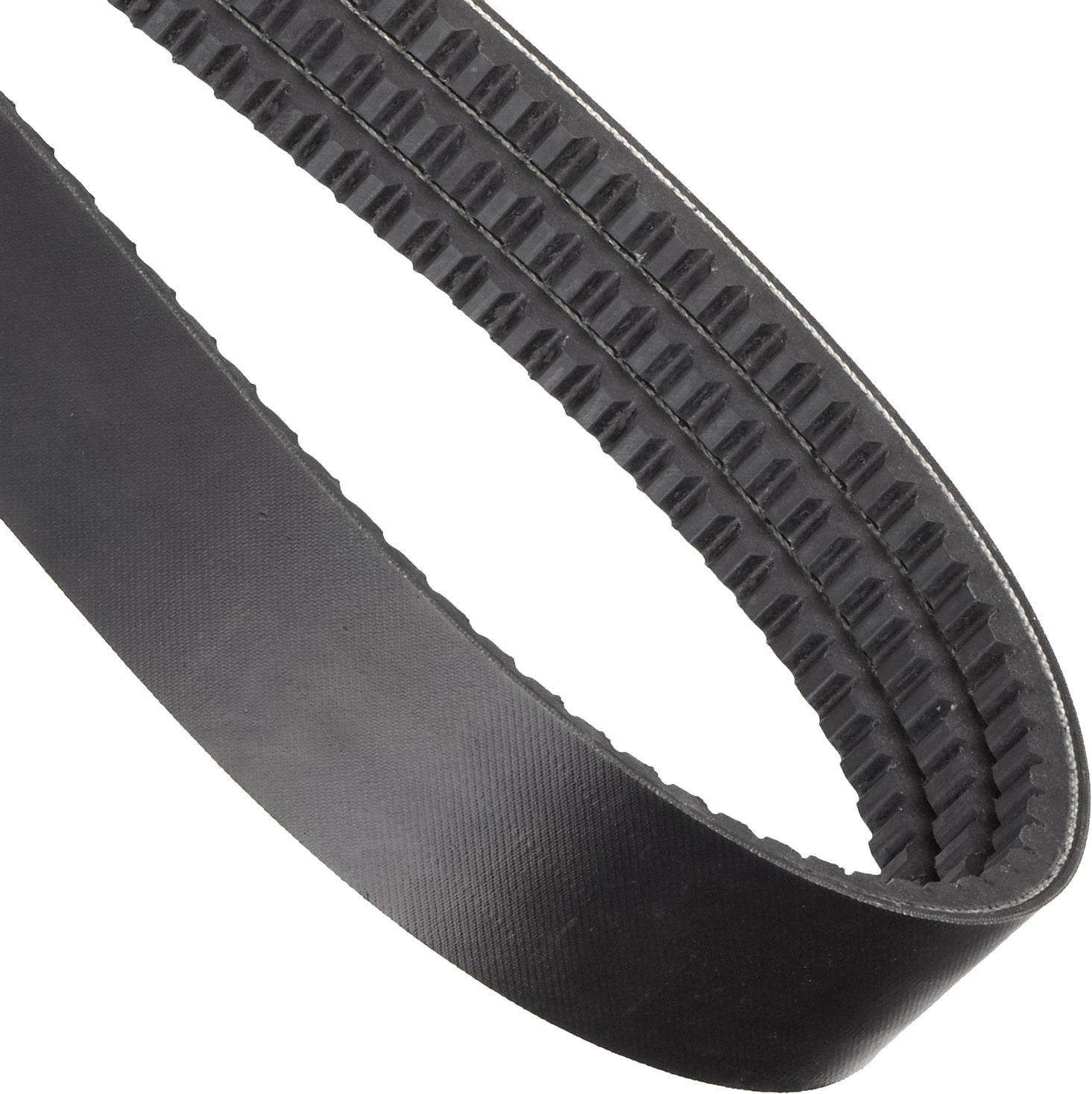

Goodyear Engineered Products HY-T Torque Team V-Belt, BX Profile, Banded & Cogged, 3 Rib, 1.98" Width

Be the first to review this item

Product Specifications
Height
0.41  inches
Width
1.98  inches
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
HY-T Torque Team
Cross Section
BX
Style Name
3 Rib
UNSPSC Code
26111801
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 16 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 56 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 56 Next 20 »
83" 3/BX83 B004ELA48O yes $63.79 Buy Options
74" 3/BX74 B00008A42B yes $57.45 Buy Options
78" 3/BX78 B004ELA4FW yes $57.94 Buy Options
77" 3/BX77 B004ELA4HA Usually ships in 3 to 6 weeks $63.14 Buy Options
75" 3/BX75 B004ELA4K2 yes $50.81 Buy Options
82" 3/BX82 B004ELA49S yes $63.46 Buy Options
61" 3/BX61 B002YHM9OM yes $53.96 Buy Options
136" 3/BX136 B00009XHQ7 yes $93.37 Buy Options
133" 3/BX133 B00009ONHY yes $94.43 Buy Options
60" 3/BX60 B002B68YEU yes $51.38 Buy Options
120" 3/BX120 B00009IBLX yes $73.54 Buy Options
65" 3/BX65 B00008VUF8 yes $52.44 Buy Options
46" 3/BX46 B004ELA6RI yes $45.48 Buy Options
48" 3/BX48 B004ELA6KU yes $45.88 Buy Options
50" 3/BX50 B004ELA6H8 yes $44.12 Buy Options
51" 3/BX51 B004ELA6DW yes $32.23 Buy Options
54" 3/BX54 B004ELA66E yes $45.77 Buy Options
53" 3/BX53 B004ELA68M yes $51.09 Buy Options
55" 3/BX55 B004ELA63M yes $48.15 Buy Options
56" 3/BX56 B004ELA62S yes $44.30 Buy Options

Key Features

  • B profile banded V-belt with a 1.98" total top width
  • Cogged construction provides the flexibility required for short-center distances
  • 3-rib joined construction belt so all ribs pull together simultaneously for improved traction and efficiency
  • Interior cogs provide large surface area to dissipate heat, prolonging belt life
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Torque Team B profile cogged V-belt has a 1.98” total top width, 3 ribs, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and short-center applications. The belt has 3 individual ribs, each measuring 0.66” wide at the top; they are bonded together by fabric to increase flexibility and heat dissipation. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Torque belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow, which enhances cooling. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt. The fabric bonds to the V-sections to maintain the singularity of the belt.

Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
