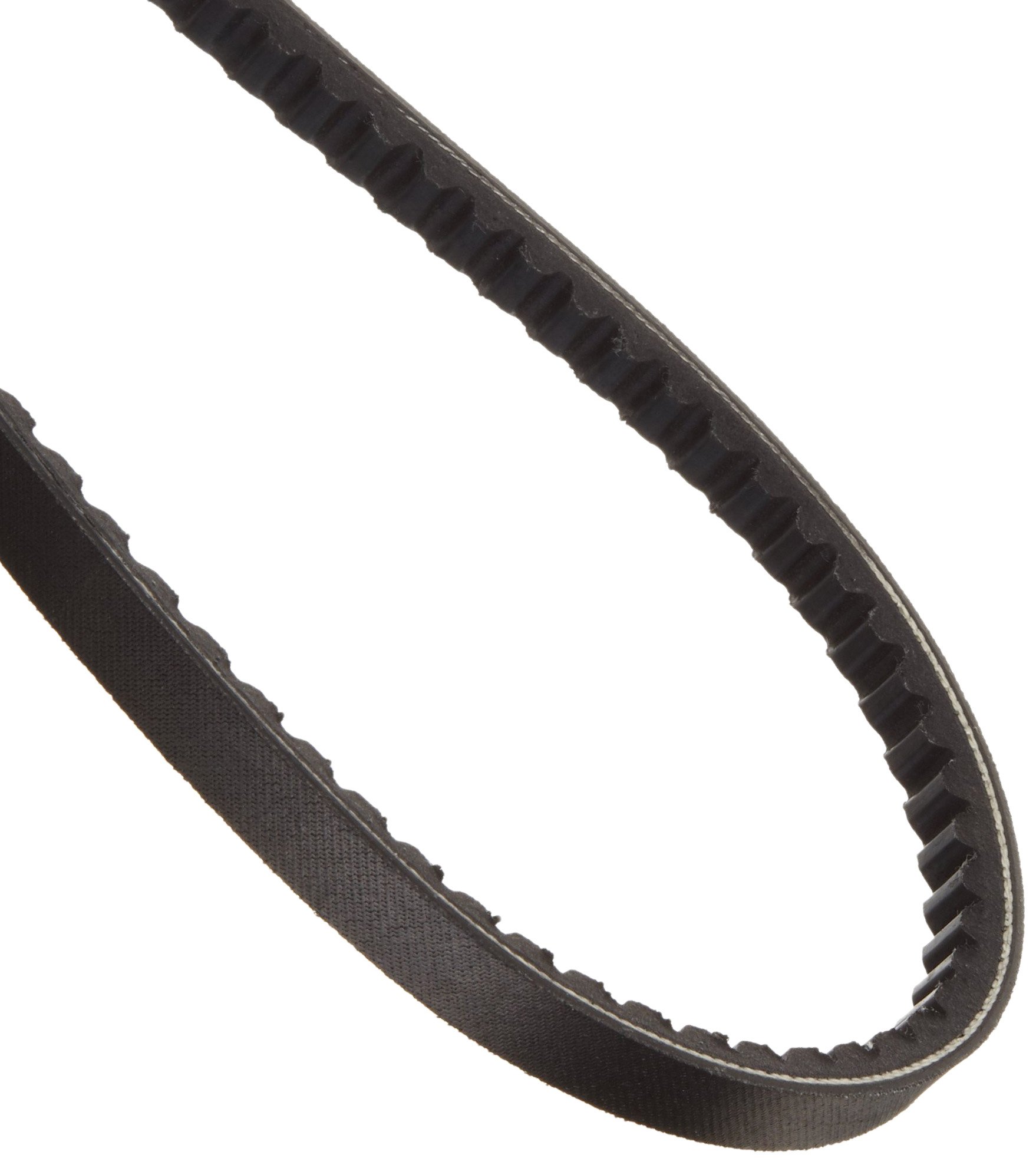

Goodyear Engineered Products Torque-Flex V-Belt, BX Profile, Cogged, 0.66" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
Torque-Flex
Height
0.41  inches
Width
0.66  inches
Cross Section
BX
Material Type
Rubber
Color Name
Black
UNSPSC Code
26111801
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 23 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 101 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 101 Next 20 »
89" BX89 B00008A3KJ yes $30.43 Buy Options
270" BX270 B004HFRT0I Temporarily out of stock. Order now and we'll deliver when available. $50.93 Buy Options
66" BX66 B004HFRVGK yes $16.59 Buy Options
73" BX73 B004HFRVA6 yes $19.03 Buy Options
82" BX82 B004HFRV42 yes $20.45 Buy Options
86" BX86 B004HFRV10 yes $29.68 Buy Options
84" BX84 B004HFRV2Y yes $20.36 Buy Options
87" BX87 B004HFRV06 yes $29.86 Buy Options
240" BX240 B004HFRT7Q yes $51.19 Buy Options
57" BX57 B004HFRVMY yes $20.85 Buy Options
59" BX59 B004HFRVLA yes $21.23 Buy Options
60" BX60 B004HFRVKG yes $16.55 Buy Options
99" BX99 B00006U03S yes $23.24 Buy Options
61" BX61 B004HFRVK6 yes $15.59 Buy Options
39" BX39 B004I437MM yes $14.52 Buy Options
300" BX300 B004HFRSUO yes $64.81 Buy Options
31" BX31 B004I437N6 yes $12.73 Buy Options
62" BX62 B004HFRVJ2 yes $17.52 Buy Options
45" BX45 B00008L5PB yes $15.29 Buy Options
88" BX88 B004I437K4 yes $18.19 Buy Options

Key Features

  • B profile cogged V-belt with a 0.66" top width and 0.41" height
  • Raw-edge, cogged construction provides the flexibility required for short-center distances
  • Crush-resistant cushion maintains shape and fit for longer service life
  • Vytacord tension members add synthetic reinforcement for tensile strength
  • Oil- and abrasion-resistant fabric backing provides flexibility and strength

Product Description

The B profile Torque-Flex cogged V-belt has a 0.66” top width, is 0.41” high, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for small-sheave, high-tension drives and short-center applications. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The Torque-Flex belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The Torque-Flex V-belt has 25-30 percent higher power ratings than standard V-belts resulting in increased energy efficiency of up to four percent, depending on the sheave diameter. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the belt. The cushion of the Torque-Flex V-belt is crush-resistant, reducing downtime and belt replacement cost over time.

Classical, cogged belts are designed for operating at higher speeds over small diameter pulleys and short-center distances. They can be used in multiple V-belt drives. They are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors, and are frequently used in abusive environments such as farming and manufacturing,

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
