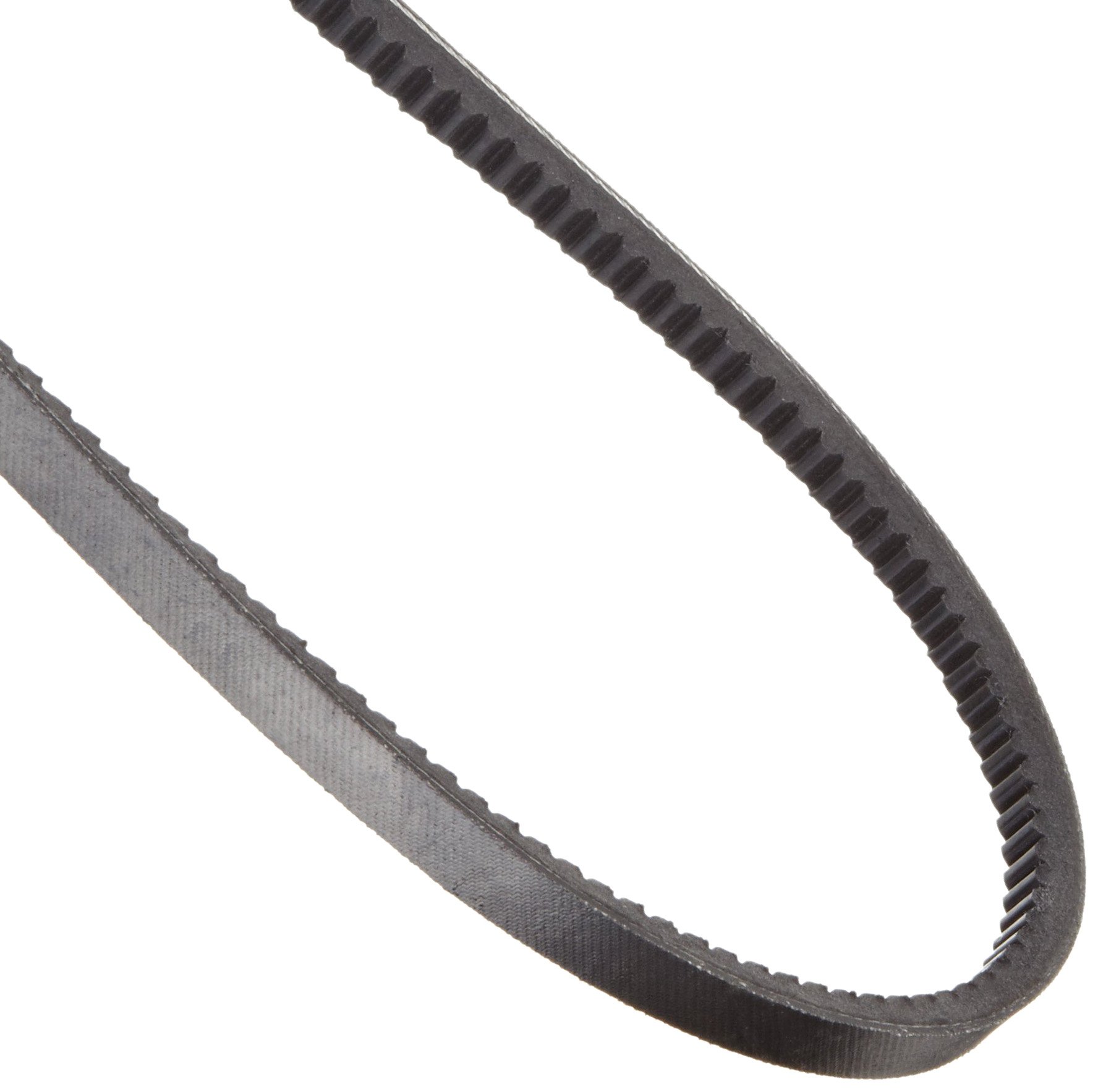

Goodyear Engineered Products Torque-Flex V-Belt, AX Profile, Cogged, 0.50" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
Torque-Flex
Width
0.50  inches
Cross Section
AX
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 1 hr 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 82 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 82 Next 20 »
110" AX110 B00008A3HH 1 $17.95 Buy Options
97" AX97 B00008A3GS 2 $16.57 Buy Options
96" AX96 B00008A3GN 1 $17.93 Buy Options
93" AX93 B00008A3GA 1 $17.57 Buy Options
91" AX91 B00008A3G6 1 $18.80 Buy Options
89" AX89 B00008A3FZ 2 $15.78 Buy Options
87" AX87 B00008A3FI 1 $15.60 Buy Options
29" AX29 B004HFRW3M 9 $8.02 Buy Options
84" AX84 B00008A3F6 1 $19.64 Buy Options
30" AX30 B004HFRW32 22 $9.24 Buy Options
81" AX81 B00008A3ET 1 $12.41 Buy Options
31" AX31 B004HFRW28 33 $9.00 Buy Options
78" AX78 B00008A3EH 1 $14.64 Buy Options
32" AX32 B004HFRW14 Temporarily out of stock. Order now and we'll deliver when available. $8.77 Buy Options
77" AX77 B00008A3E9 1 $15.67 Buy Options
33" AX33 B004HFRW0U 9 $9.49 Buy Options
98" AX98 B00008A3GY 1 $18.14 Buy Options
34" AX34 B004HFRW0K 1 $9.52 Buy Options
35" AX35 B004HFRVZG 9 $9.65 Buy Options
76" AX76 B00008A3E1 1 $15.56 Buy Options

Key Features

  • A profile cogged V-belt with a 0.50" top width and 0.31" height
  • Raw-edge, cogged construction provides the flexibility required for short-center distances
  • Crush-resistant cushion maintains shape and fit for longer service life
  • Vytacord tension members add synthetic reinforcement for tensile strength
  • Oil- and abrasion-resistant fabric backing provides flexibility and strength

Product Description

The A profile Torque-Flex cogged V-belt has a 0.50” top width, is 0.31” high, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for small-sheave, high-tension drives and short-center applications. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The Torque-Flex belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The Torque-Flex V-belt has 25-30 percent higher power ratings than standard V-belts resulting in increased energy efficiency of up to four percent, depending on the sheave diameter. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the belt. The cushion of the Torque-Flex V-belt is crush-resistant, reducing downtime and belt replacement cost over time.

Classical, cogged belts are designed for operating at higher speeds over small diameter pulleys and short-center distances. They can be used in multiple V-belt drives. They are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors, and are frequently used in abusive environments such as farming and manufacturing,

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
