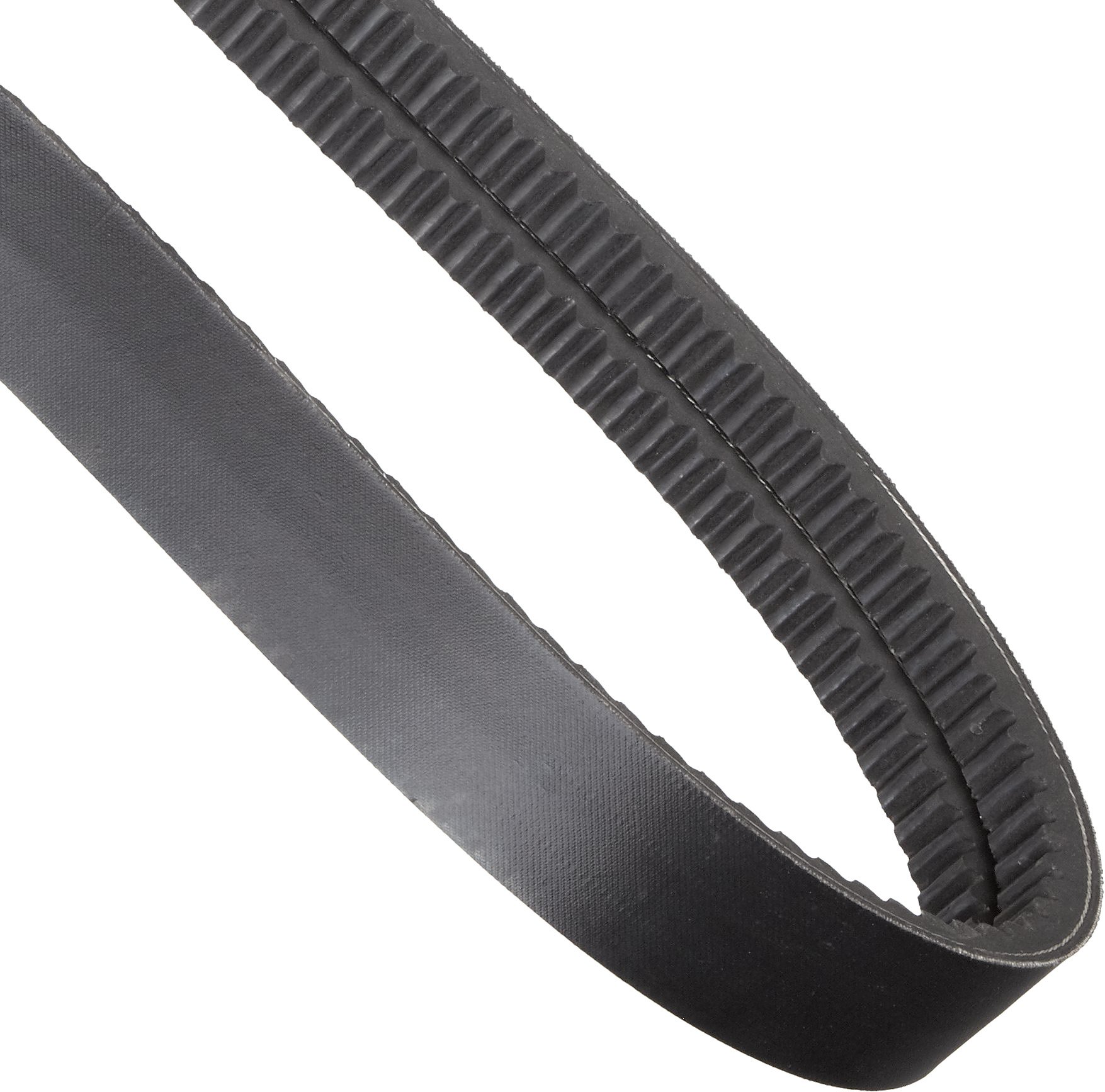

Goodyear Engineered Products HY-T Torque Team V-Belt, CX Profile, Banded & Cogged, 2 Rib, 1.76" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
HY-T Torque Team
Width
1.76  inches
Cross Section
CX
Material Type
Rubber
Color Name
Black
Style Name
2 Rib
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 20 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-15 of 15
124" 2/CX124 B0000AC6WL 1 $99.99 Buy Options
105" 2/CX105 B004ELA358 1 $84.32 Buy Options
100" 2/CX100 B004ELA3DU 1 $81.98 Buy Options
109" 2/CX109 B004ELA2ZY 1 $89.24 Buy Options
11" 2/CX11 B004ELA2X6 1 $89.26 Buy Options
81" 2/CX81 B00013P4WK 1 $68.24 Buy Options
120" 2/CX120 B00007AEB2 1 $97.27 Buy Options
75" 2/CX75 B00006U4IA 1 $63.27 Buy Options
108" 2/CX108 B00006UBLF 1 $88.50 Buy Options
68" 2/CX68 B00006U4I9 1 $57.55 Buy Options
60" 2/CX60 B004ELA57E 1 $51.77 Buy Options
85" 2/CX85 B004ELA3WG 1 $69.86 Buy Options
90" 2/CX90 B004ELA3R6 2 $70.10 Buy Options
96" 2/CX96 B004ELA3JE 1 $76.65 Buy Options
99" 2/CX99 B004ELA3FS 1 $81.29 Buy Options

Key Features

  • C profile banded V-belt with a 1.76" total top width
  • Cogged construction provides the flexibility required for short-center distances
  • 2-rib joined construction belt so both ribs pull together simultaneously for improved traction and efficiency
  • Interior cogs provide large surface area to dissipate heat, prolonging belt life
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Torque Team C profile cogged V-belt has a 1.76” total top width, 2 ribs, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and short-center applications. The belt has 2 individual ribs, each measuring 0.88” wide at the top; they are bonded together by fabric to increase flexibility and heat dissipation. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Torque belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow, which enhances cooling. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt. The fabric bonds to the V-sections to maintain the singularity of the belt.

Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
