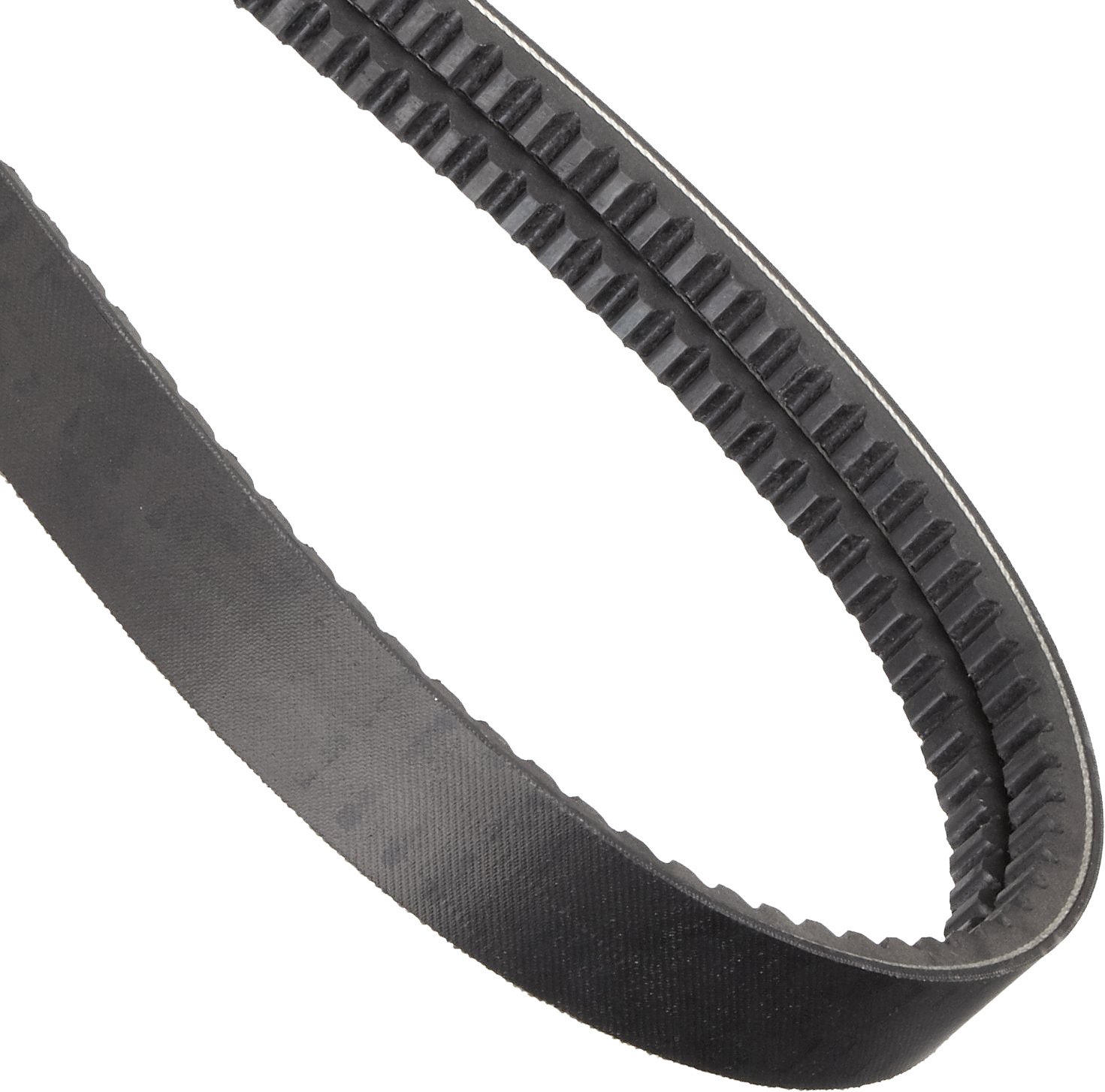

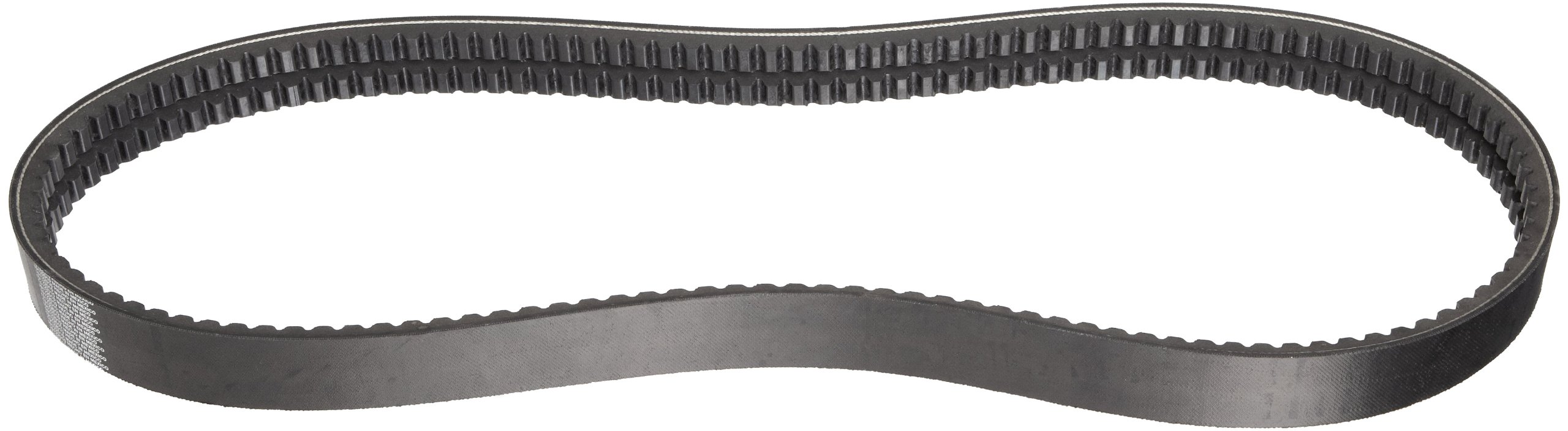

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Goodyear Engineered Products HY-T Torque Team V-Belt, BX Profile, Banded & Cogged, 2 Rib, 1.32" Width

Be the first to review this item

Product Specifications
Overall Height
0.41  inches
Overall Width
1.32  inches
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
HY-T Torque Team
Cross Section
BX
Style Name
2 Rib
UNSPSC Code
26111801
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Mar 2? Order in-stock items in the next 1 day 4 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 53 Next 20 »
Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-20 of 53 Next 20 »
1 B00009XBEV yes $51.12 Buy Options
1 B00008L5QP yes $37.05 Buy Options
1 B004I43CRW yes $46.82 Buy Options
1 B004ELA86W yes $24.02 Buy Options
1 B004ELA84O yes $27.50 Buy Options
1 B004ELA7V8 yes $29.29 Buy Options
1 B004ELA7ZY yes $26.29 Buy Options
1 B00008A428 yes $40.77 Buy Options
1 B00008A420 yes $34.79 Buy Options
1 B004ELA7RM yes $29.93 Buy Options
1 B00008A40A yes $34.62 Buy Options
1 B004ELA7PE yes $27.80 Buy Options
1 B004ELA7NQ yes $28.05 Buy Options
1 B004ELA7K4 yes $28.86 Buy Options
1 B00008A3ZY yes $9.50 Buy Options
1 B000076WAL yes $50.98 Buy Options
1 B000076WAK yes $48.68 Buy Options
1 B004ELA7M2 yes $26.80 Buy Options
1 B00006U45B yes $19.94 Buy Options
1 B004ELA7IG yes $27.17 Buy Options

Key Features

  • B profile banded V-belt with a 1.32" total top width
  • Cogged construction provides the flexibility required for short-center distances
  • 2-rib joined construction belt so both ribs pull together simultaneously for improved traction and efficiency
  • Interior cogs provide large surface area to dissipate heat, prolonging belt life
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Torque Team B profile cogged V-belt has a 1.32” total top width, 2 ribs, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and short-center applications. The belt has 2 individual ribs, each measuring 0.66” wide at the top; they are bonded together by fabric to increase flexibility and heat dissipation. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Torque belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow, which enhances cooling. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt. The fabric bonds to the V-sections to maintain the singularity of the belt.

Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
