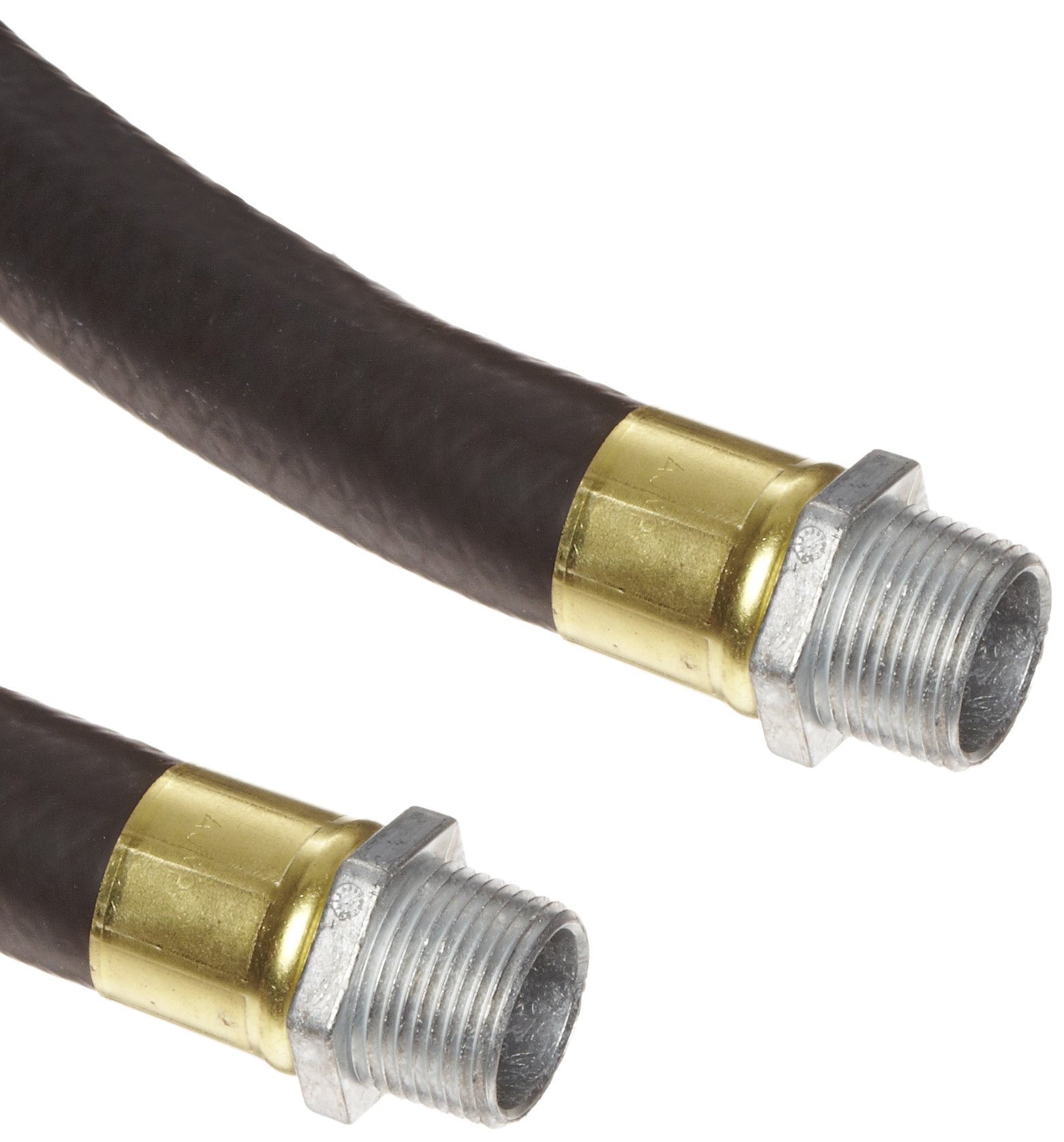

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Goodyear EP Aggie Gas Black Rubber Agricultural Gasoline Dispensing Hose Assembly, NPT Male Couplings, 50 PSI Maximum Pressure

Be the first to review this item

Product Specifications
Pkg Qty
1
For Use With Product Type
Agricultural Gasoline
Color Name
Black
Material Type
Nitrile Rubber
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Aggie Gas
Compatible Material
Gasoline^Grease^Kerosene^Petroleum
Upper Temperature Range
140  Degrees Fahrenheit
Reinforcement Material
Spiral Synthetic Yarn
Max Pressure
50  PSI
Connector Type
Threaded
UNSPSC Code
40142011
Style Name
NPT Male
System of Measurement
Inch
LowerTemperature Range
-30  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 1 day 21 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Inside Diameter Outer Diameter Overall Length Connection Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-9 of 9
3/4" 1.11" 10 ft 3/4" B0070S42AY yes $22.12 Buy Options
3/4" 1.11" 20 ft 3/4" B0070S42V8 yes $37.46 Buy Options
3/4" 1-7/64" 12 ft 3/4" B0070S3VNI yes $38.18 Buy Options
3/4" 1-7/64" 8 ft 3/4" B0070S3YWG yes $28.75 Buy Options
3/4" 1-7/64" 14 ft 3/4" B0070S3XWW yes $31.75 Buy Options
1" 1.4" 17 ft 1" B0070S41CI yes $49.61 Buy Options
1" 1.4" 10 ft 1" B0070S40OM yes $35.06 Buy Options
1" 1-25/64" 12 ft 1" B0070S3W5K yes $43.26 Buy Options
1" 1-25/64" 14 ft 1" B0070S3WU0 yes $48.25 Buy Options

Key Features

  • Hose for conveying gasoline, grease, kerosene, and other petroleum-based fluids from farm- and barrel-type pumps
  • Nitrile synthetic rubber tube for resistance to oil, solvents, and aromatic compounds, with a Chemivic (Buna-N-vinyl) cover for resistance to oil, abrasion, and ozone
  • Spiral synthetic yarn reinforcement for strength
  • Temperature range of -30 to +140 degrees F (-34 to +60 degrees C)
  • Two factory-installed cast zinc male NPT fittings with crimped brass ferrules

Product Description

This Goodyear Engineered Products Aggie Gas agricultural gasoline dispensing hose assembly is suitable for conveying gasoline, grease, kerosene, and other petroleum-based fluids from barrel-type pumps. Its nitrile synthetic rubber tube resists oil, solvents, and aromatic compounds, and its black Chemivic (Buna-N-vinyl) synthetic rubber cover resists oil, abrasion, and ozone. Its spiral synthetic yarn reinforcement provides the strength necessary to reach and maintain its maximum pressure of 50 pounds per square inch (psi). This hose assembly can withstand temperatures ranging from -30 to +140 degrees F (-34 to +60 degrees C). It comes equipped with two cast zinc male National Pipe Taper (NPT) threaded couplings with crimped brass ferrules. This hose is suitable for conveying gasoline and other petroleum-based fluids in agricultural, construction, and industrial applications.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
