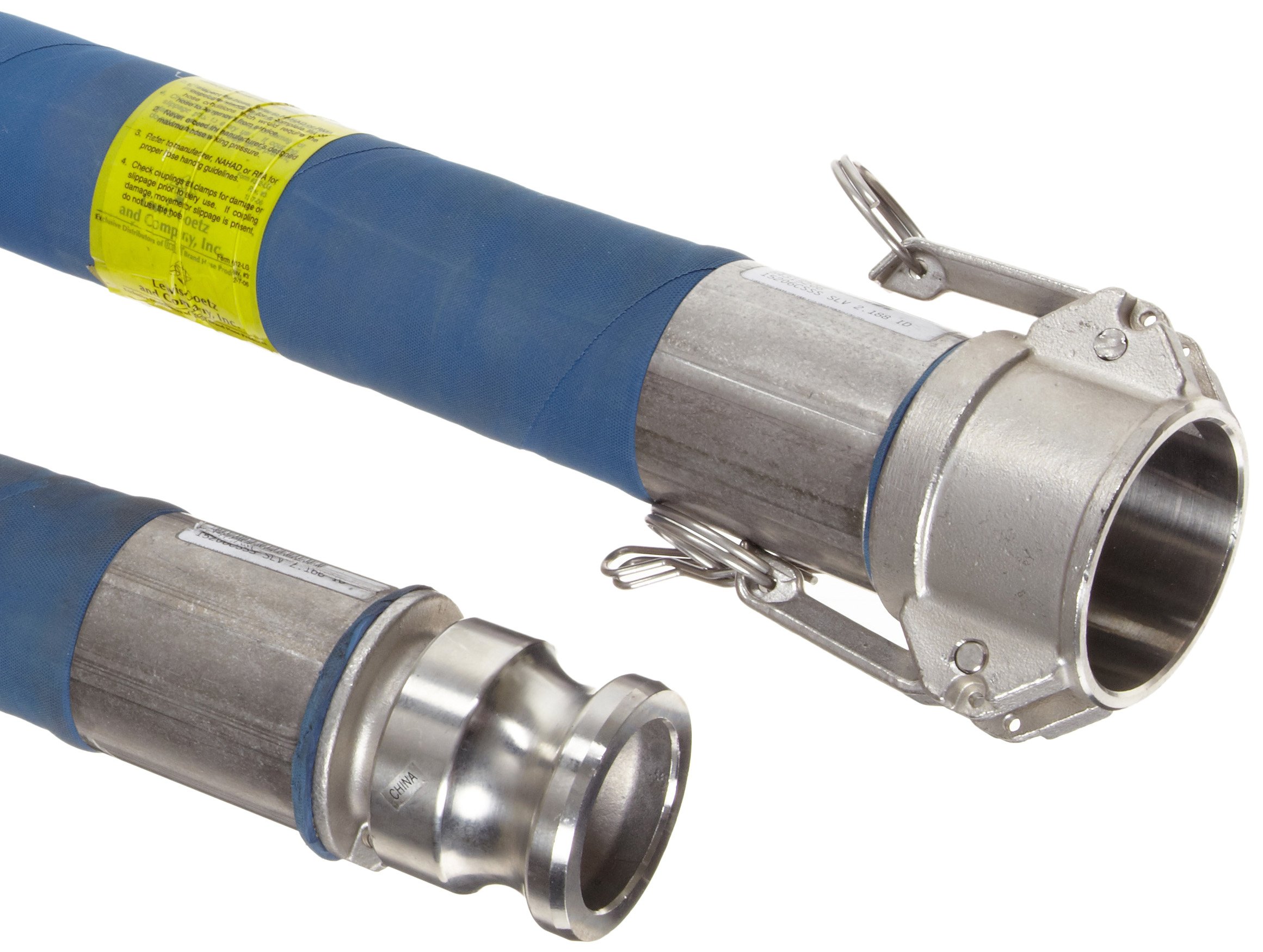

Goodyear EP Hi-Per Blue FEP Chemical Hose Assembly, Stainless Steel 316 Cam And Groove Couplings, 200 PSI Max Pressure

Be the first to review this item

Product Specifications
For Use With Product Type
Color Name
Material Type
Fluorinated Ethylene Propylene (FEP)
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Compatible Material
Upper Temperature Range
300  Degrees Fahrenheit
Reinforcement Material
Spiral-Plied Synthetic Fabric With Double Wire Helix
Specification Met
Maximum Pressure
200  PSI
Connector Type
Cam And Groove
Style Name
Stainless Steel Cam And Groove
Operating Vacuum Pressure
29  in Hg
System of Measurement
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 5 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Inside diameter string Outside diameter Maximum bend radius Item length string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All
Currently showing 1-8 of 8
1 inches 1-33/64 inches 8 10 feet 1 B0070S4AJC yes $969.50 Buy Options
1 inches 1-33/64 inches 8 20 feet 1 B0070S4B46 yes $1,861.00 Buy Options
1-1/2 inches 2-1/8 inches 14 10 feet 1 B0070S4BP0 yes $1,529.00 Buy Options
1-1/2 inches 2-1/8 inches 14 20 feet 1 B0070S4CHM yes $2,920.00 Buy Options
1/2 inches 31/32 inches 3 10 feet 1 B0070S47WW yes $722.50 Buy Options
1/2 inches 31/32 inches 3 20 feet 1 B0070S48HG yes $1,389.00 Buy Options
3/4 inches 1-7/64 inches 5 10 feet 1 B0070S491Q yes $831.50 Buy Options
3/4 inches 1-7/64 inches 5 20 feet 1 B0070S49ZC yes $1,609.00 Buy Options

Key Features

  • Hose for conveying a wide range of chemicals and petroleum-based fluids
  • FEP tube for chemical and petroleum resistance, with a blue Versigard (EPDM) cover for resistance to aging, chemicals, ozone, and heat
  • Spiral-plied synthetic fabric and double wire helix reinforcement for strength
  • Temperature range of -40 to +300 degrees F (-40 to +149 degrees C)
  • Two factory-installed stainless steel cam and groove couplings

Product Description

This Goodyear Engineered Products Hi-Per blue FEP chemical hose assembly is suitable for conveying a wide range of chemicals and petroleum-based fluids. Its tube, made of FEP (fluorinated ethylene propylene), is specially designed to resist these materials, and its blue Versigard (EPDM, ethylene propylene diene monomer) cover resists aging, chemicals, ozone, and heat. This hose is reinforced with a spiral-plied synthetic fabric and double wire helix for a maximum pressure rating of 200 pounds per square inch (psi) and full vacuum rating of 29" Hg. It can withstand temperatures ranging from -40 to +300 degrees F (-40 to +149 degrees C), and comes equipped with two factory-installed 316 stainless steel cam and groove couplings. This hose is suitable for a wide range of commercial and industrial chemical and petroleum transfer applications.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.
