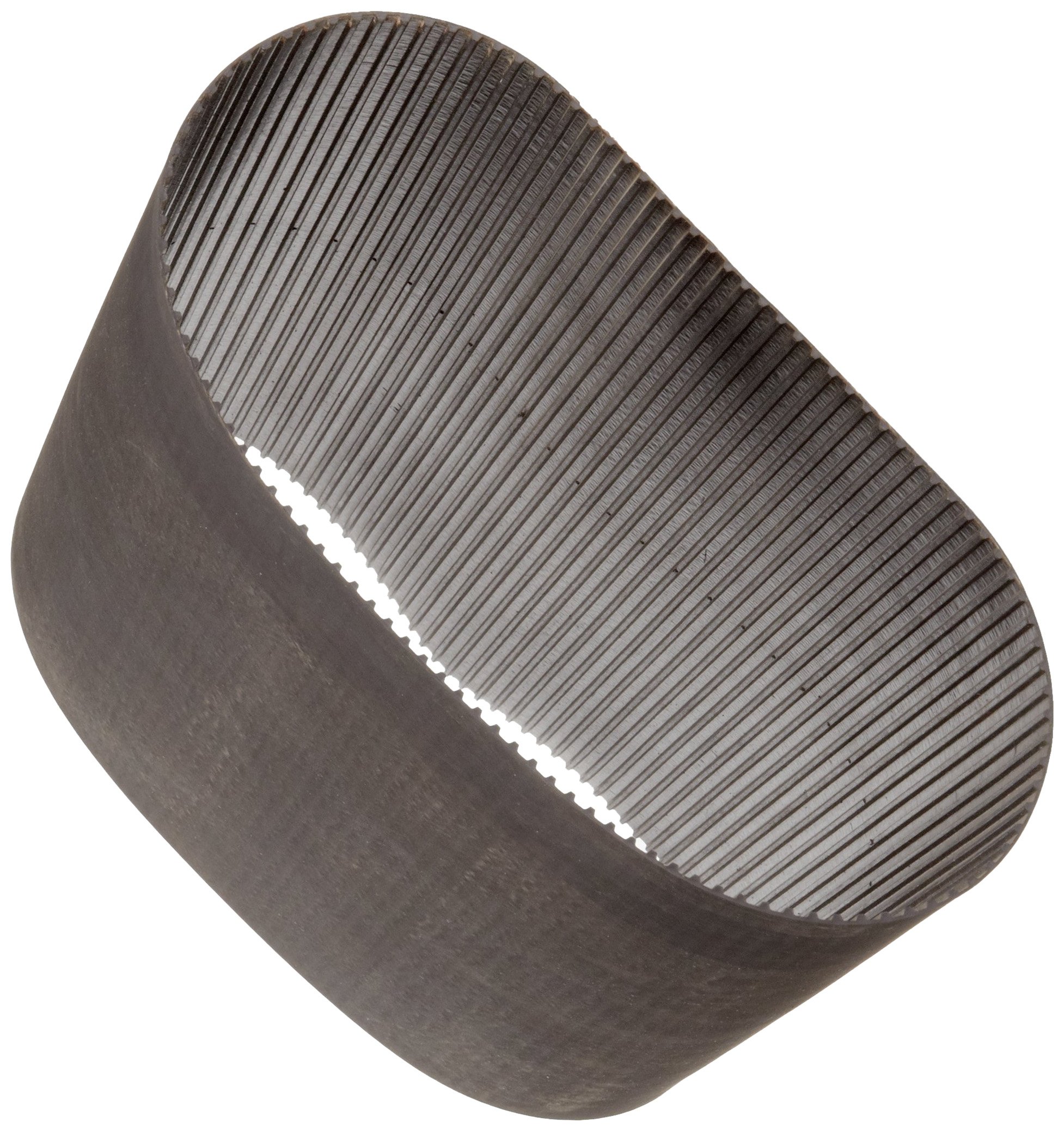

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Goodyear Engineered Products Positive Drive Trapezoidal Tooth Profile Sleeve, 0.200" Pitch, XL (Extra Light) Profile

Be the first to review this item

Product Specifications
Pitch
0.200  inches
Cross Section
XL
Material Type
Rubber
Part Number
Goodyear-Parent-26
UNSPSC Code
26111802
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 15 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Width Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-15 of 15
13" 10" 100XL\1300 B004HFRVOW yes $83.36 Buy Options
13" 11" 110XL\1300 B004HFRVN8 yes $85.18 Buy Options
13" 13" 130XL\1300 B004HFRVEW yes $88.80 Buy Options
13" 18" 180XL\1300 B004HFRUVQ yes $99.69 Buy Options
13" 19" 190XL\1300 B004HFRUQQ yes $102.10 Buy Options
13" 20" 200XL\1300 B004HFRUN4 yes $105.00 Buy Options
13" 21" 210XL\1300 B004HFRUKC yes $107.01 Buy Options
13" 22" 220XL\1300 B004HFRUHA yes $109.02 Buy Options
13" 23" 230XL\1300 B004HFRUF2 yes $111.77 Buy Options
13" 24" 240XL\1300 B004HFRUCU yes $115.44 Buy Options
13" 25" 250XL\1300 B004HFRUAC yes $99.33 Buy Options
13" 30" 300XL\1300 B004HFRTYY yes $76.67 Buy Options
13" 45" 450XL\1300 B00006U2WO yes $157.31 Buy Options
13" 8" 80XL\1300 B00006U2WB yes $78.12 Buy Options
13" 9" 90XL\1300 B00008AMEZ yes $79.47 Buy Options

Key Features

  • Trapezoidal tooth profile sleeve with 0.200" pitch and extra light XL profile
  • 13" wide sleeve allows users to cut belt sizes to suit custom applications
  • High-strength fiberglass tension cords add synthetic reinforcement for tensile strength
  • Molded-rubber compounded construction decreases flex fatigue for longer product life
  • Oil, heat, ozone, and abrasion resistant construction allows for use in rugged environments

Product Description

The Positive drive trapezoidal tooth profile sleeve is 13” wide, has a 0.200” pitch, an extra light XL profile, is built by Goodyear Engineered Products, and is suitable for drive applications where shaft synchronization is required, such as food processing equipment, farm machinery, machine tools, and packaging machinery. This universal tooth profile sleeve is for users who prefer to custom-cut their own belt sizes. The positive drive sleeve has fiberglass tension cords that add synthetic reinforcement, increasing tensile strength and resistance to shrinkage and elongation. It has trapezoidal-shaped, precision-molded teeth constructed of a composite rubber compound that resists tooth deformity and ratcheting. The sleeve is wrapped in nylon facing, which extends the belt's life and decreases noise. The sleeve's molded-rubber construction increases flexibility for longer product life, and it is oil, heat, ozone, and abrasion resistant, making it suitable for use in rugged environments.

Synchronous belts (also known as timing belts) have teeth on the underside of the belt that join with the grooves in a rotating pulley to transmit power at a constant speed without slippage. They are made of compounded rubber and are reinforced lengthwise with fiberglass cords for added strength. The belts require minimal re-tensioning and maintenance, no lubrication, and provide quiet operation. Synchronous belts are used in industrial applications such as farm, textile, mining, and printing machinery, and consumer applications such as office equipment, home appliances, and automobiles.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
