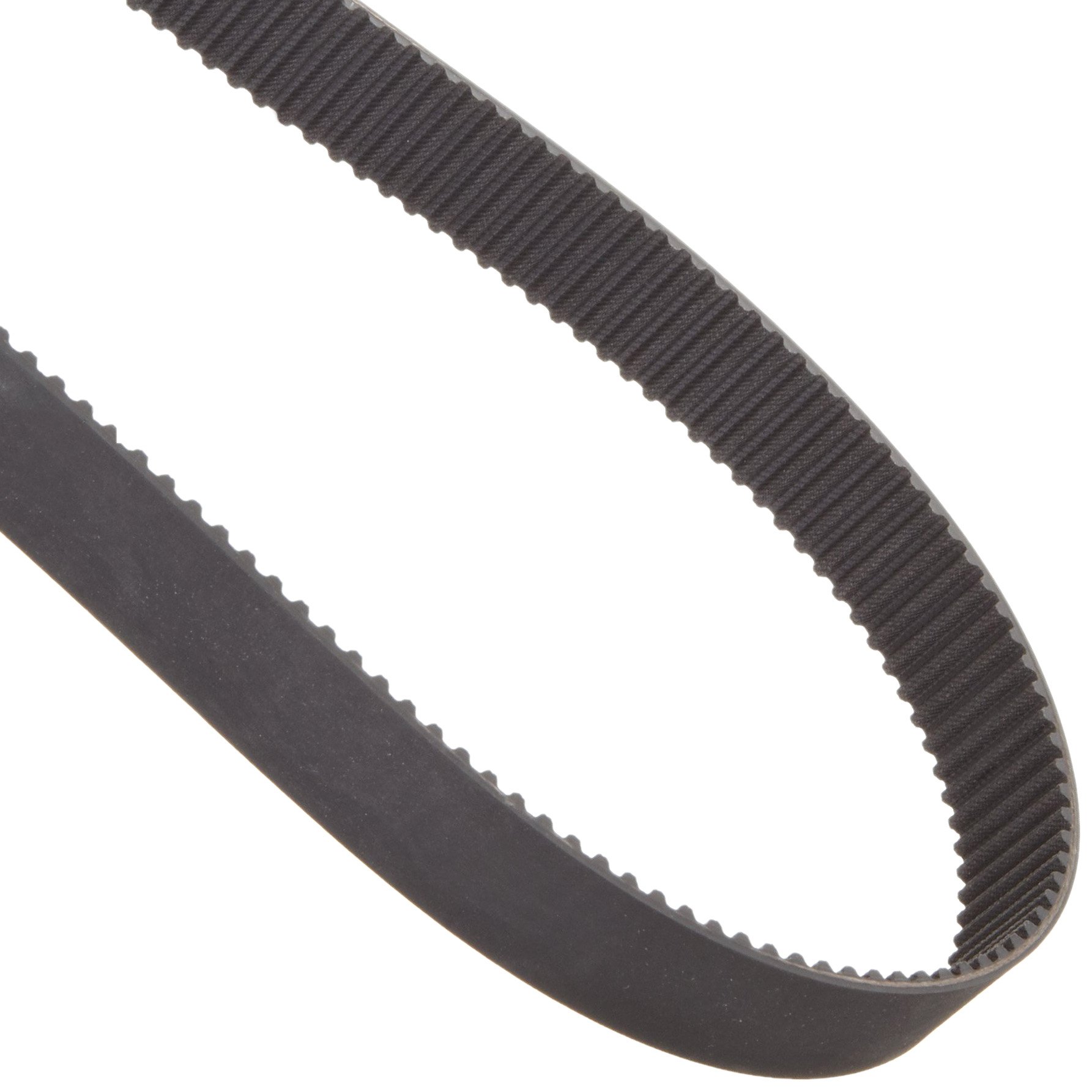

Goodyear Engineered Products 1000 5M 09 Hawk Positive Drive Synchronous Belt, 5mm Pitch, 5M Profile, Metric

Be the first to review this item

Product Specifications
Pitch
5  millimeters
Cross Section
5M
Material Type
Rubber
Part Number
Goodyear-Parent-14
UNSPSC Code
26111802
Brand Name
Goodyear Engineered Products
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 8 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 85 Next 20 »
Width Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 85 Next 20 »
9 mm 1000 mm 1000 B004I43EM0 yes $15.49 Buy Options
9 mm 1050 mm 1050 B004I43ELQ yes $5.39 Buy Options
9 mm 1125 mm 1125 5M 9 B00008NS0F yes $16.10 Buy Options
9 mm 1195 mm 1195 B004I43EKW yes $16.49 Buy Options
9 mm 1270 mm 1270 5M 9 B00008NS0T yes $15.39 Buy Options
9 mm 1420 mm 1420 5M 9 B004EEPFSA yes $15.78 Buy Options
9 mm 1595 mm 1595 5M 9 B004I43EHU yes $16.93 Buy Options
9 mm 1690 mm 1690 5M 9 B004I43EGQ yes $19.20 Buy Options
9 mm 1790 mm 1790 5M 9 B004I43EF2 yes $17.80 Buy Options
9 mm 1895 mm 1895 5M 9 B004I43ED4 yes $18.23 Buy Options
9 mm 2000 mm 2000 5M 9 B004I43ECA yes $20.77 Buy Options
9 mm 350 mm 350 5M 9 B004EEPGG6 Temporarily out of stock. Order now and we'll deliver when available. $11.47 Buy Options
9 mm 375 mm 375 5M 9 B004EEPGFW yes $7.50 Buy Options
9 mm 400 mm 400 5M 9 B0007YJNGG yes $10.30 Buy Options
9 mm 425 mm 425 5M 9 B004EEPGF2 yes $10.17 Buy Options
9 mm 450 mm 450 5M 9 B004EEPGEI yes $9.64 Buy Options
9 mm 475 mm 475 5M 9 B00008Y38L yes $12.68 Buy Options
9 mm 500 mm 500 5M 9 B004EEPGDY yes $4.24 Buy Options
9 mm 535 mm 535 5M 9 B004EEPGDE yes $11.73 Buy Options
9 mm 565 mm 565 5M 9 B004EEPGCU Usually ships in 2 to 4 weeks $11.39 Buy Options

Key Features

  • 5 mm pitch and 5M metric profile Hawk positive-drive synchronous belt with for use with drive applications where shaft synchronization is required
  • Universal tooth profile fits many existing standard-sized industry sprockets
  • Molded-rubber compounded construction decreases flex fatigue for longer product life
  • Industry-standard numbering for identifying parts compatibility
  • Oil, heat, ozone, and abrasion resistant construction allows use in rugged environments

Product Description

The Hawk positive drive synchronous belt has a 5 mm pitch, a 5M metric profile, is built by Goodyear Engineered Products, and is suitable for drive applications where shaft synchronization is required, such as food processing equipment, farm machinery, machine tools, and packaging machinery. This universal tooth profile belt is a drop-in replacement belt that fits many standard-sized sprockets and uses standard industry parts numbers. Its molded-rubber compounded construction decreases flex fatigue for longer product life. The Hawk positive drive synchronous belt is constructed of a composite rubber that resists tooth deformity and ratcheting, and it is oil, heat, ozone, and abrasion resistant, making it suitable for use in rugged environments.

Synchronous belts (also known as timing belts) have teeth on the underside of the belt that join with the grooves in a rotating pulley to transmit power at a constant speed without slippage. They are made of compounded rubber and are reinforced lengthwise with fiberglass cords for added strength. The belts require minimal re-tensioning and maintenance, no lubrication, and provide quiet operation. Synchronous belts are used in industrial applications such as farm, textile, mining, and printing machinery, and consumer applications such as office equipment, home appliances, and automobiles.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
