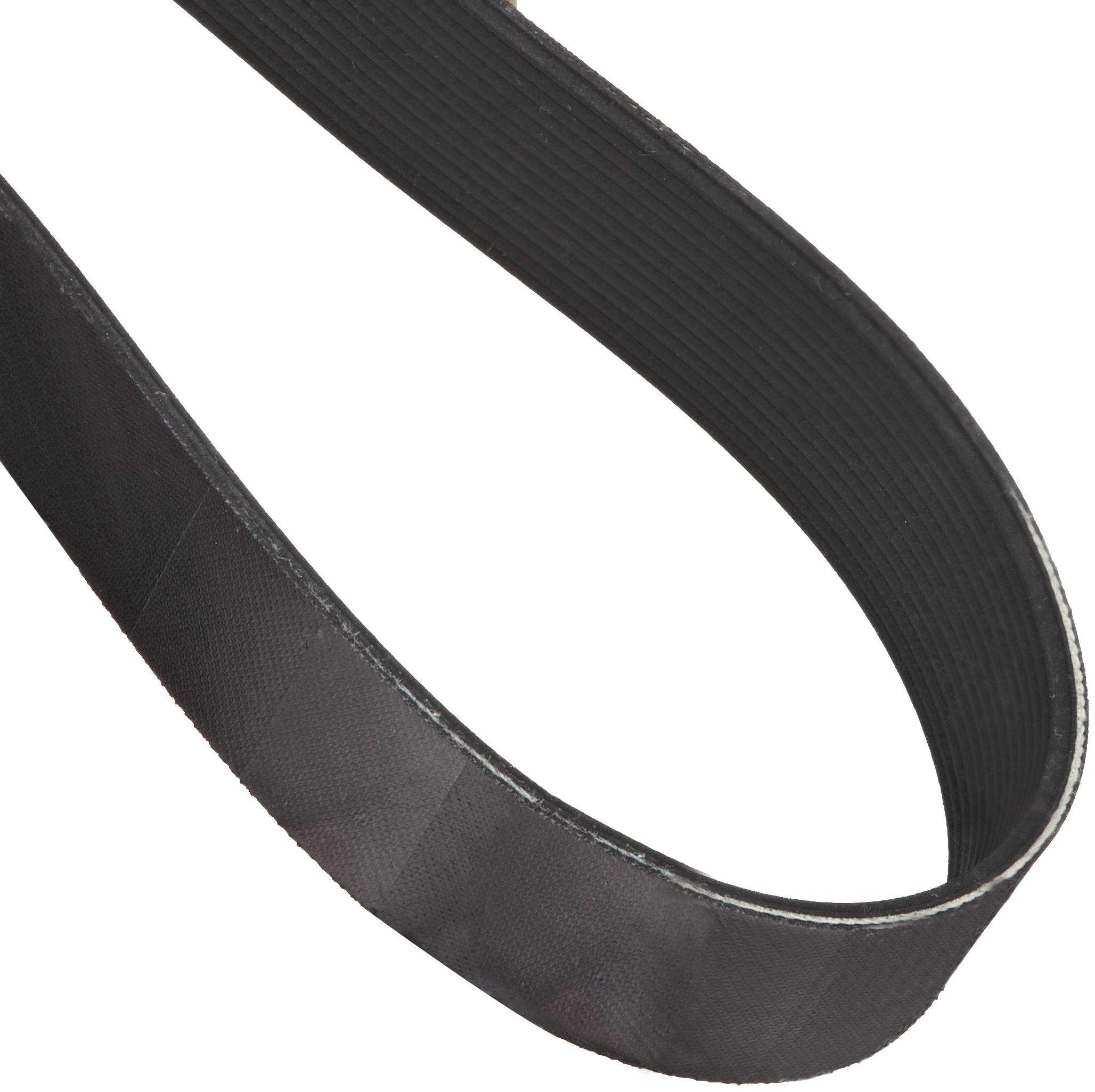

Goodyear Engineered Products Poly-V V-Belt, J Profile, Ribbed, 14 Rib, 0.092" Width

Be the first to review this item

Product Specifications
Width
0.092  inches
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Poly-V
Cross Section
J
Style Name
14 Rib
UNSPSC Code
26111801
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 17 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 23 Next 3 »
Height Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 23 Next 3 »
0.14" 19" 190J14 B004I43EHA yes $22.65 Buy Options
0.14" 20" 200J14 B004EEPFHG yes $20.15 Buy Options
0.14" 22" 220J14 B004EEPFEE yes $22.65 Buy Options
0.14" 26" 260J14 B004EEPF8A yes $20.62 Buy Options
0.14" 30" 300J14 B004EEPF1C yes $23.57 Buy Options
0.14" 36" 360J14 B004EEPEPY yes $24.48 Buy Options
0.14" 38" 380J14 B004EEPEMC yes $24.69 Buy Options
0.14" 40" 400J14 B004EEPEK4 yes $25.12 Buy Options
0.14" 43" 430J14 B004EEPEFY yes $25.61 Buy Options
0.14" 46" 460J14 B004EEPEE0 yes $25.51 Buy Options
0.14" 52" 520J14 B004EEPE5E yes $33.61 Buy Options
0.14" 55" 550J14 B004EEPE2W yes $30.65 Buy Options
0.14" 61" 610J14 B004EEPDZK yes $32.76 Buy Options
0.14" 73" 730J14 B004EEPDNM yes $36.23 Buy Options
0.14" 65" 650J14 B004EEPDW8 yes $27.15 Buy Options
0.14" 87" 870J14 B004EEPDGO yes $37.59 Buy Options
0.14" 92" 920J14 B004EEPDFU yes $38.49 Buy Options
0.092" 58" 580J14 B00006U5RZ yes $29.48 Buy Options
0.14" 49" 490J14 B00006U5LN yes $28.62 Buy Options
0.14" 24" 240J14 B00006U4PI yes $20.15 Buy Options

Key Features

  • J section banded Poly-V belt with a 1.28" total width and 0.14" height
  • Designed for small-sheave applications requiring limited vibration
  • 14-rib joined construction belt so all ribs pull together simultaneously for improved traction and efficiency
  • Weight makes them suitable for high-speed drives with short-center distances
  • Vytacord tension member adds synthetic reinforcement for tensile strength

Product Description

The J section banded Poly-V belt has a 1.28” total width and 0.14” height, 14 ribs, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt has 14 individual ribs, each with a 0.092” V-width; they are bonded together by fabric to increase flexibility and heat dissipation. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The Poly-V belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The Poly-V belt is suitable for small sheave, compact designs requiring limited vibration. Its weight makes it suitable for high-speed drives with short center distances. It uses smaller pulleys than other V-belts and can handle speed ratios of 40:1. It resists settling the grooves of the sheave, which maintains consistent speed ratios and uniform output speed. The belt fully engages with the sheave grooves, equalizing belt stresses, which in turn minimizes belt stretch, leading to longer product life. It allows smaller sheaves to be used, reducing weight and increasing drive efficiency. The belt is backed in oil-and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt.

Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
