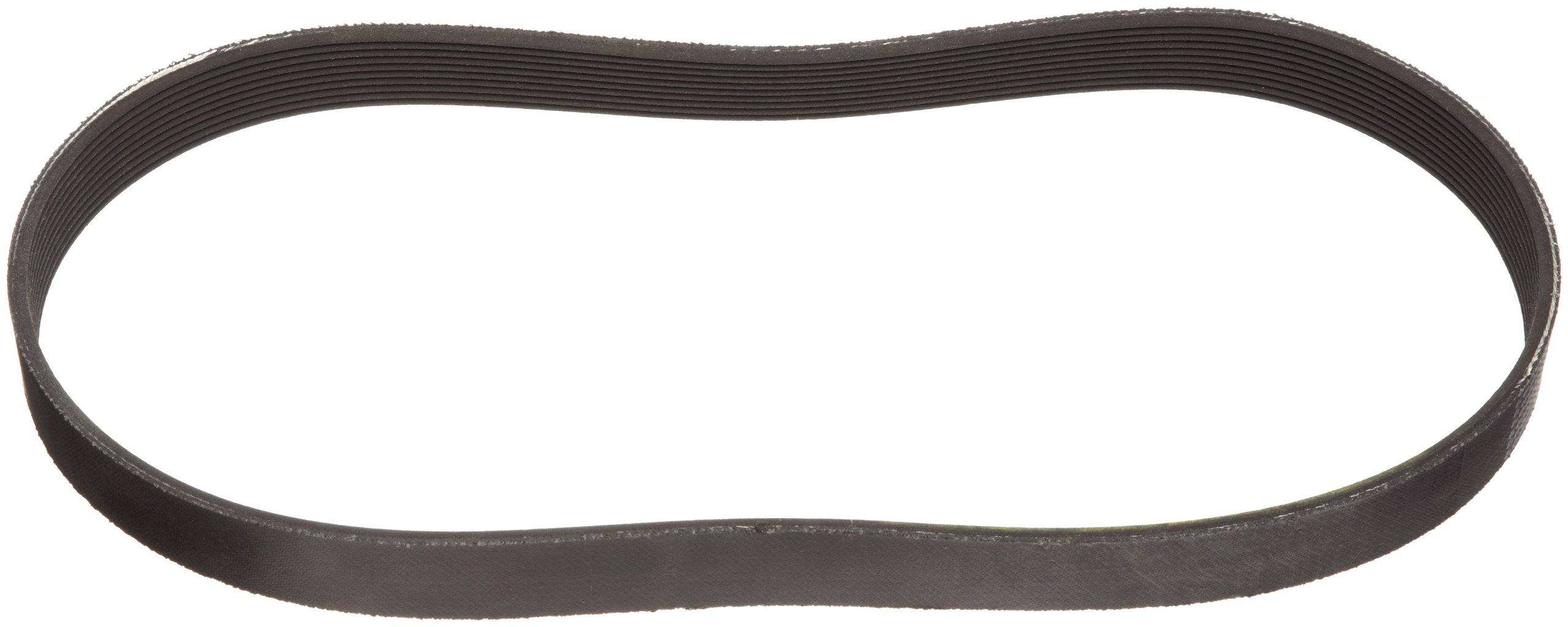

Goodyear Engineered Products Poly-V V-Belt, J Profile, Ribbed, 10 Rib, 0.092" Width

Be the first to review this item

Product Specifications
Width
0.092  inches
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Poly-V
Cross Section
J
Style Name
10 Rib
UNSPSC Code
26111801
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 7 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 28 Next 8 »
Height Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 28 Next 8 »
0.14" 87" 870J10 B004ELAAEW yes $26.39 Buy Options
0.14" 48" 480J10 B004ELAC22 yes $20.02 Buy Options
0.14" 98" 980J10 B004ELAA2Y yes $30.19 Buy Options
0.14" 38" 380J10 B00025DBAY yes $18.32 Buy Options
0.14" 65" 650J10 B00009ZXK0 yes $23.20 Buy Options
0.14" 49" 490J10 B00008WRCP yes $20.02 Buy Options
0.14" 77" 770J10 B00008WQUU yes $12.13 Buy Options
0.14" 41" 410J10 B00006V0Y4 yes $19.39 Buy Options
0.14" 42" 420J10 B00006U055 Temporarily out of stock. Order now and we'll deliver when available. $19.71 Buy Options
0.14" 36" 360J10 B00006U04S yes $19.03 Buy Options
0.14" 30" 300J10 B00006U04H yes $17.44 Buy Options
0.14" 92" 920J10 B00006T0KK yes $24.95 Buy Options
0.14" 52" 520J10 B004I43DWG yes $20.81 Buy Options
0.14" 55" 550J10 B004I43DUI yes $16.12 Buy Options
0.092" 58" 580J10 B004I43DTE yes $21.96 Buy Options
0.14" 73" 730J10 B004I43DSA yes $25.46 Buy Options
0.14" 18" 180J10 B004ELADPI yes $8.31 Buy Options
0.14" 19" 190J10 B004ELADNA yes $15.90 Buy Options
0.14" 20" 200J10 B004ELADJY yes $17.48 Buy Options
0.14" 22" 220J10 B004ELADDU yes $15.51 Buy Options

Key Features

  • J section banded Poly-V belt with a 0.92" total width and 0.14" height
  • Designed for small-sheave applications requiring limited vibration
  • 10-rib joined construction belt so all ribs pull together simultaneously for improved traction and efficiency
  • Weight makes them suitable for high-speed drives with short-center distances
  • Vytacord tension member adds synthetic reinforcement for tensile strength

Product Description

The J section banded Poly-V belt has a 0.92” total width and 0.14” height, 10 ribs, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt has 10 individual ribs, each with a 0.092” V-width; they are bonded together by fabric to increase flexibility and heat dissipation. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The Poly-V belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The Poly-V belt is suitable for small sheave, compact designs requiring limited vibration. Its weight makes it suitable for high-speed drives with short center distances. It uses smaller pulleys than other V-belts and can handle speed ratios of 40:1. It resists settling the grooves of the sheave, which maintains consistent speed ratios and uniform output speed. The belt fully engages with the sheave grooves, equalizing belt stresses, which in turn minimizes belt stretch, leading to longer product life. It allows smaller sheaves to be used, reducing weight and increasing drive efficiency. The belt is backed in oil-and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt.

Banded belts are a collection of individual belts that transmits horsepower to the power transmission drive as a single belt. Frequently used in abusive environments such as farming and manufacturing, they are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
