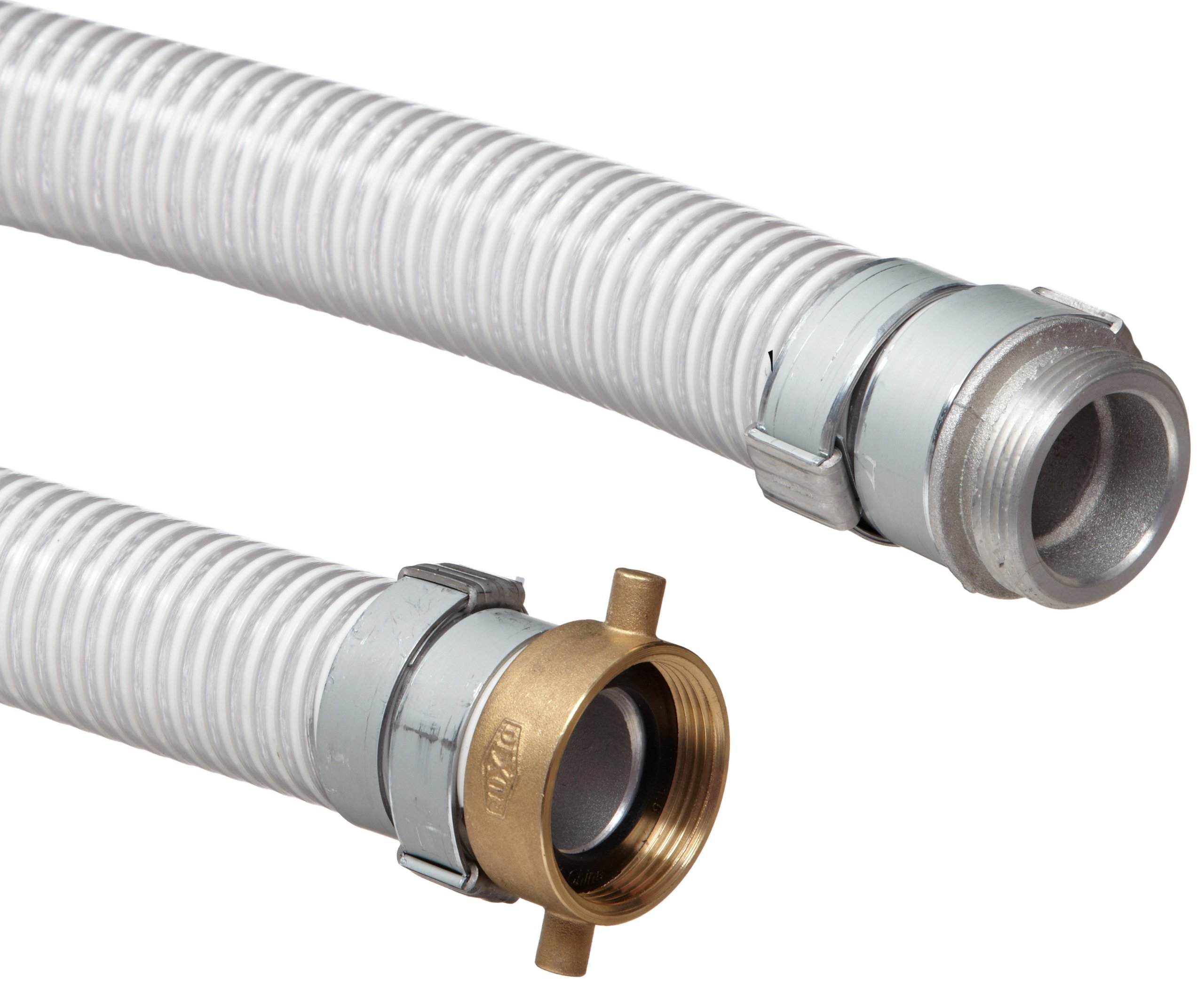

Goodyear EP Nutriflo Clear PVC Food Hose Assembly, Aluminum NPSH Male x Female Couplings

Be the first to review this item

Product Specifications
For Use With Product Type
Color Name
Material Type
PVC (Polyvinyl Chloride)
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Compatible Material
Upper Temperature Range
158  Degrees Fahrenheit
Reinforcement Material
High density PVC helix
Specification Met
FDA , USDA , and 3-A Sanitary standards and NSF-61 standards
Connector Type
Style Name
Aluminum NPSH Male x Female
Operating Vacuum Pressure
29  in Hg
System of Measurement
LowerTemperature Range
-15  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 20? Order in-stock items in the next 13 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Inside diameter string Outside diameter Maximum bend radius Maximum pressure Item length string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All
Currently showing 1-3 of 3
2 inches 2-23/64 inches 8 79 pounds_per_square_inch 20 feet 1 B0070RXOS6 yes $217.81 Buy Options
3 inches 3-15/32 inches 12 65 pounds_per_square_inch 10 feet 1 B0070RXQ5C yes $243.25 Buy Options
3 inches 3-15/32 inches 12 65 pounds_per_square_inch 20 feet 1 B0070RXSNC yes $397.25 Buy Options

Key Features

  • Hose for conveying dry bulk or liquid food material in gravity flow or vacuum service
  • Clear Pliovic (PVC) tube for light weight and flexibility meets FDA, USDA, 3-A, and NSF-61 standards for food handling, and clear Pliovic (PVC) corrugated cover resists abrasion
  • High-density Pliovic (PVC) helix reinforcement for strength
  • Temperature range of -15 to +158 degrees F (-26 to +70 degrees C)
  • One factory-installed aluminum male and one factory-installed brass female NPSH connection

Product Description

The Goodyear Engineered Products Nutriflo clear PVC food hose assembly is suitable for conveying dry bulk or liquid food material and consists of a clear Pliovic (PVC, polyvinyl chloride) tube for lightweight flexibility; and a clear Pliovic (PVC) cover for resistance to abrasion. This assembly meets Food and Drug Administration (FDA) and United States Department of Agriculture (USDA) requirements for food handling, 3-A Sanitary standards, and National Sanitation Foundation (NSF)-61 standards for transmission of potable water. It is reinforced with a clear, high-density Pliovic (PVC) helix for the strength to reach its maximum working pressure rating and its full vacuum rating of 29" Hg. It can withstand temperatures ranging from -15 to +158 degrees F (-26 to +70 degrees C), and comes equipped with an aluminum male National Pipe Straight Hose (NPSH) threaded connection on one end and a brass female NPSH threaded connection on the other. This hose is suitable for a wide range of agricultural and food service dry and liquid food material transfer applications, but is recommended for transmission of raw and pasteurized milk and other high water content dairy items.

Industrial hoses and hose assemblies transfer or convey air or liquid in hose systems. When selecting industrial hoses or hose assemblies, use the STAMPED method to help determine the type of hose needed:

S= Size (ID, OD, and length)
T= Temperature (maximum and minimum temperatures of material being transported)
A= Application (industry or process)
M= Material (to be conveyed, type and concentration)
P= Pressure (maximum working pressure)
E= Ends (type of end connectors or couplings on hose)
D= Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses and hose assemblies are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
