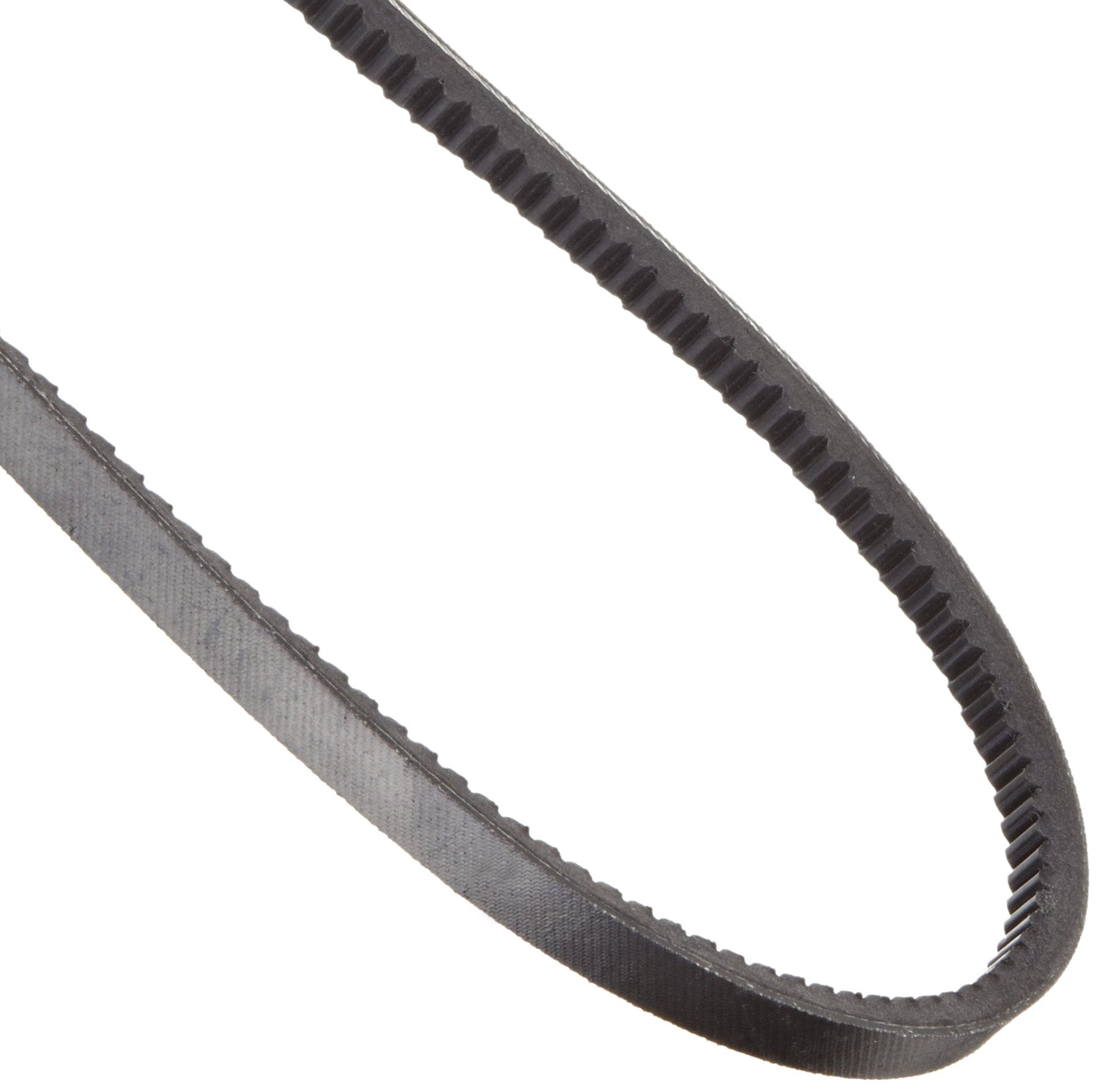

Goodyear Engineered Products HY-T Wedge V-Belt, 3VX Profile, Cogged, 0.38" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
HY-T Wedge
Width
0.38  inches
Cross Section
3VX
Material Type
Rubber
Color Name
Black
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 22 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 32 Next 12 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 32 Next 12 »
25" 3VX250 B004ELADS0 1 $11.45 Buy Options
28" 3VX280 B004ELADMG 6 $9.42 Buy Options
30" 3VX300 B004ELADHQ 7 $11.38 Buy Options
33.5" 3VX335 B004ELADBM 2 $11.50 Buy Options
45" 3VX450 B004ELACUE 20 $16.38 Buy Options
42.5" 3VX425 B004ELACY0 1 $8.30 Buy Options
50" 3VX500 B004ELACMW 2 $15.09 Buy Options
53" 3VX530 B004ELACIQ 2 $14.59 Buy Options
56" 3VX560 B004ELACEK 14 $18.20 Buy Options
31.5" 3VX315 B00006U0FP 4 $11.95 Buy Options
85" 3VX850 B004ELABHS 1 $20.99 Buy Options
150" 3VX1500 B00006U0FL 1 $30.08 Buy Options
80" 3VX800 B004ELABNC 8 $17.92 Buy Options
47.5" 3VX475 B004ELACQS 10 $13.22 Buy Options
26.5" 3VX265 B00006U0FJ 1 $10.59 Buy Options
90" 3VX900 B004ELABC8 2 $19.54 Buy Options
140" 3VX1400 B00006U0FG 3 $24.93 Buy Options
95" 3VX950 B004ELAB7I 1 $20.13 Buy Options
100" 3VX1000 B004ELAB2I 1 $20.61 Buy Options
106" 3VX1060 B004ELAAVK 1 $19.59 Buy Options

Key Features

  • 3VX profile V-belt with a 0.38" top width and 0.31" height
  • Cogged construction provides the flexibility required for short-center distances
  • Narrow design reduces belt drive width and weight for improved transmission of horsepower
  • Deep wedge profile creates more contact with sheaves for increased horsepower
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Wedge 3VX profile cogged V-belt has a 0.38” top width, 0.31” height, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and short-center applications. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Wedge belt’s narrow design allows the use of smaller or fewer belts than classical V-belts to transmit an equivalent load, maximizing power transmission efficiency by reducing drive weight and size. It is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow to dissipate heat and prolong belt life. The belt is backed in oil-and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the belt.

Narrow or “wedge” designed V-belts have a narrower face width and smaller diameter than a traditional, classical V-belt, but can handle an equivalent load, maximizing efficiency. Smaller belts allow for the use of smaller sheaves, resulting in lower operating costs. They are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors, and are frequently used in abusive environments such as farming and manufacturing,

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
