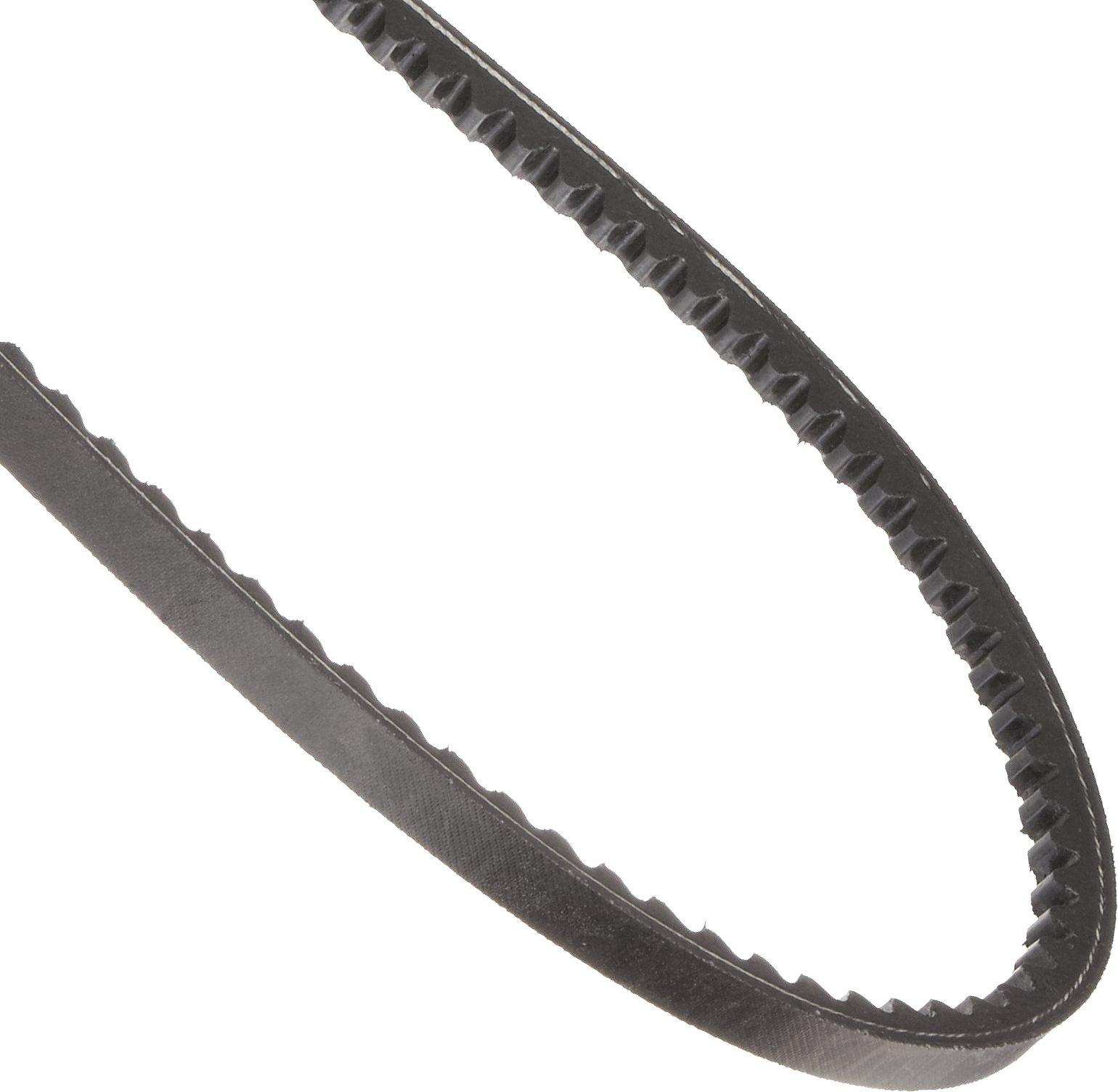

Goodyear Engineered Products Metric V-Belt, XPB Profile, Cogged, 17mm Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
Metric
Height
14  millimeters
Width
17  millimeters
Cross Section
XPB
Material Type
Rubber
Color Name
Black
UNSPSC Code
26111801
Brand Name
Goodyear Engineered Products
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 18 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 45 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 45 Next 20 »
2300 mm XPB2300 B004EEPDCS yes $24.89 Buy Options
2430 mm XPB2430 B004EEPDBE yes $13.84 Buy Options
2410 mm XPB2410 B00008UD73 yes $26.02 Buy Options
3000 mm XPB3000 B00008A52E yes $31.33 Buy Options
2900 mm XPB2900 B00008A52C yes $31.18 Buy Options
2840 mm XPB2840 B00008A52A yes $25.40 Buy Options
2820 mm XPB2820 B00008A528 yes $30.49 Buy Options
2720 mm XPB2720 B00008A524 yes $28.14 Buy Options
2800 mm XPB2800 B00008A526 yes $28.60 Buy Options
2650 mm XPB2650 B00008A520 yes $25.53 Buy Options
2600 mm XPB2600 B00008A51X yes $13.73 Buy Options
2680 mm XPB2680 B00008A522 yes $27.85 Buy Options
2580 mm XPB2580 B00008A51V yes $27.04 Buy Options
2530 mm XPB2530 B00008A51S yes $26.69 Buy Options
2500 mm XPB2500 B00008A51Q yes $16.36 Buy Options
2360 mm XPB2360 B00008A51K yes $25.80 Buy Options
2310 mm XPB2310 B00008A51H yes $25.76 Buy Options
2280 mm XPB2280 B00008A51F yes $24.49 Buy Options
2264 mm XPB2264 B00008A51C yes $24.34 Buy Options
2240 mm XPB2240 B00008A51A yes $24.08 Buy Options

Key Features

  • GY Metric V-belt, B profile, cogged, 14 mm high and 17 mm wide
  • Raw-edge, cogged construction provides the flexibility required for short-center distances
  • Wedge profile allows the use of smaller drives and lower cost
  • Interior cogs provide large surface area to dissipate heat, prolonging belt life
  • Heat, ozone, and abrasion resistant for use in abusive environments

Product Description

The GY Metric B profile cogged V-belt is 14 mm high and 17 mm wide, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for heavy-duty, temperature-sensitive applications. This cogged metric belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The GY Metric V-belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. Cogs on the inner surface of the belt increase air flow, which enhances cooling. GY Metric belts operate within a wide temperature range from -65 to 180 degrees Fahrenheit (-52 to 82 degrees Celsius). The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt.

GY Metric V-belts are engineered to universal profiles in metric units of measurement. They are constructed to withstand oily, dirt-filled manufacturing environments and are frequently used in abusive environments such as farming and manufacturing.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
