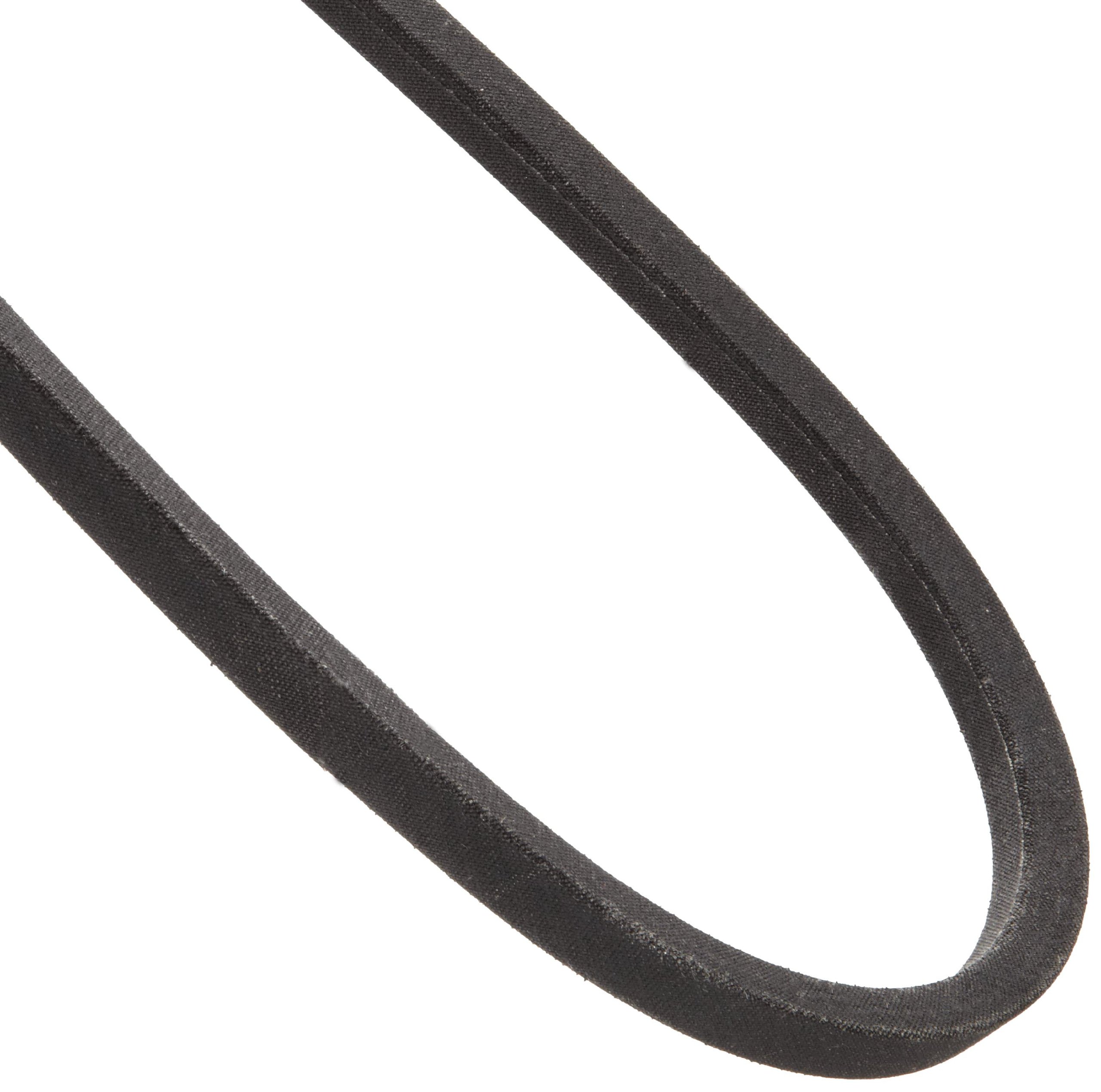

Goodyear Engineered Products Insta-Power V-Belt, B / 5L Profile, 0.66" Width

Be the first to review this item

Product Specifications

Brand Name: Goodyear Engineered Products
Color Name: Black
Cross Section: B / 5L
Manufacturer Series Number: Insta-Power

Material Type: Rubber
Overall Width: 0.66 inches
System of Measurement: Inch

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Friday, May 24? Order in-stock items in the next 10 hours 47 minutes and choose One-Day Shipping at checkout.

Javascript is disabled in your browser. Please enable Javascript for your browser or visit our non JavaScript version of the page with limited functionality.

Currently showing 20 of 74 Show All
Trade Size	Length	ASIN The Amazon Standard Item Number (ASIN) uniquely identifies the item in the AmazonSupply.com (and Amazon) catalog.	Available If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available. You can also order more than we currently have in stock. Read more about back orders in our help section.	Price
All	All		In Stock Only
Currently showing 20 of 74 Show All
85240	24"	B004I43E84	In Stock (1)	$13.11
85250	25"	B004I43E66	In Stock (1)	$13.28
85260	26"	B004I43E4I	In Stock (1)	$13.83
85270	27"	B004I43E34	In Stock (1)	$12.18
85280	28"	B004ELAC90	In Stock (1)	$13.59
85290	29"	B004ELAC6S	In Stock (3)	$16.34
85300	30"	B004I43E02	In Stock (1)	$14.14
85310	31"	B004I43DYY	In Stock (1)	$14.68
85320	32"	B004I43DXK	In Stock (1)	$14.61
85330	33"	B004I43DVW	In Stock (1)	$15.22
85335	33.5"	B004I43DVM	In Stock (1)	$14.94
85340	34"	B004ELABSC	In Stock (1)	$15.01
85350	35"	B004ELABPK	In Stock (1)	$15.15
85360	36"	B004ELABN2	In Stock (2)	$13.53
85370	37"	B004ELABKU	In Stock (1)	$15.65
85380	38"	B004ELAAPG	In Stock (2)	$14.08
85390	39"	B004ELAAYC	In Stock (1)	$18.94
85400	40"	B004ELAAW4	In Stock (1)	$16.58
85410	41"	B004ELAAHE	In Stock (1)	$17.30
85420	42"	B004ELAAME	In Stock (1)	$20.86

85240(1)
85250(1)
85260(1)
85270(1)
85280(1)
85290(1)
85300(1)
85310(1)
85320(1)
85330(1)
85335(1)
85340(1)
85350(1)
85360(1)
85370(1)
85380(1)
85390(1)
85400(1)
85410(1)
85420(1)
85430(1)
85440(1)
85450(1)
85460(1)
85470(1)
85480(1)
85490(1)
85500(1)
85510(1)
85520(1)
85530(1)
85540(1)
85550(1)
85560(1)
85570(1)
85580(1)
85590(1)
85600(1)
85610(1)
85620(1)
85630(1)
85640(1)
85650(1)
85660(1)
85670(1)
85680(1)
85690(1)
85700(1)
85710(1)
85720(1)
85730(1)
85740(1)
85750(1)
85760(1)
85770(1)
85780(1)
85790(1)
85800(1)
85810(1)
85820(1)
85830(1)
85840(1)
85850(1)
85860(1)
85870(1)
85880(1)
85890(1)
85900(1)
85910(1)
85920(1)
85930(1)
85950(1)
85970(1)
85999(1)

24"(1)
25"(1)
26"(1)
27"(1)
28"(1)
29"(1)
30"(1)
31"(1)
32"(1)
33"(1)
33.5"(1)
34"(1)
35"(1)
36"(1)
37"(1)
38"(1)
39"(1)
40"(1)
41"(1)
42"(1)
43"(1)
44"(1)
45"(1)
46"(1)
47"(1)
48"(1)
49"(1)
50"(1)
51"(1)
52"(1)
53"(1)
54"(1)
55"(1)
56"(1)
57"(1)
58"(1)
59"(1)
60"(1)
61"(1)
62"(1)
63"(1)
64"(1)
65"(1)
66"(1)
67"(1)
68"(1)
69"(1)
70"(1)
71"(1)
72"(1)
73"(1)
74"(1)
75"(1)
76"(1)
77"(1)
78"(1)
79"(1)
80"(1)
81"(1)
82"(1)
83"(1)
84"(1)
85"(1)
86"(1)
87"(1)
88"(1)
89"(1)
90"(1)
91"(1)
92"(1)
93"(1)
95"(1)
97"(1)
99.9"(1)

Key Features

Classical profile V-belt with a 0.66" top width and 0.41" height
Envelope construction adds strength for use in demanding outdoor power equipment
High-strength Flexten tension members add synthetic reinforcement for tensile strength
Tolerates high ambient temperatures and sudden shock loads for longer belt life
Oil, heat, ozone and abrasion resistance allows use in abusive environments

Product Description

The Insta-Power classical profile V-belt has a 0.66” top width, is 0.41” high, is built by Goodyear Engineered Products with Flexten tension members, and is suitable for lawn and garden drives up to 20 horsepower where reverse- and quarter-turn drives are a factor. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The Insta-Power V-Belt is built with Flexten tension members made from aramid, a heat-resistant synthetic fiber five times stronger than steel. Flexten tension members increase tensile strength and reduce initial elongation by 50 percent to maintain dimensional stability so that drive performance is more consistent over the life of the belt. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength.

Traditional classical belts are designed for operating at higher speeds over small diameter pulleys and short-center distances. They can be used in multiple V-belt drives and are used frequently in abusive environments such as farming and manufacturing. They are constructed to withstand the heat of the outdoors and oily, dirt-filled manufacturing environments.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
