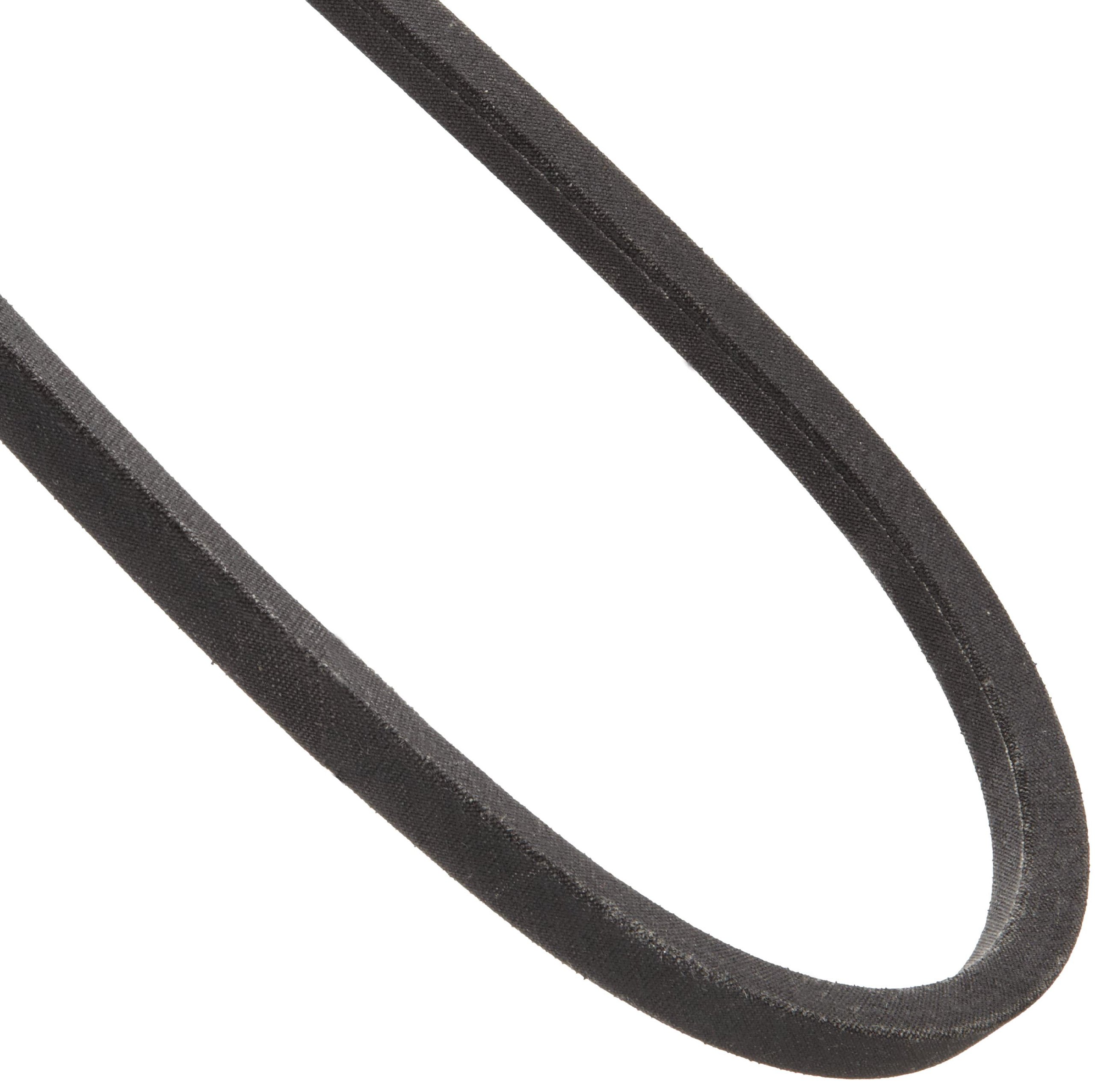

Goodyear Engineered Products Insta-Power V-Belt, A / 4L Profile, 0.50" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
Insta-Power
Overall Height
0.31  inches
Overall Width
0.50  inches
Cross Section
A / 4L
Material Type
Rubber
Color Name
Black
UNSPSC Code
26111801
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 29? Order in-stock items in the next 18 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 93 Next 20 »
Item length string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-20 of 93 Next 20 »
19 inches B004ELADSU yes $10.09 Buy Options
20 inches B004ELADPS yes $10.16 Buy Options
21 inches B004ELADN0 yes $10.10 Buy Options
22 inches B004ELADKS yes $10.04 Buy Options
23 inches B004ELADH6 yes $9.92 Buy Options
24 inches B004ELADEY yes $9.89 Buy Options
25 inches B004ELADCG yes $10.17 Buy Options
26 inches B004ELAD9O yes $9.65 Buy Options
27 inches B004ELAD80 yes $10.39 Buy Options
27.5 inches B004ELAD6M yes $10.72 Buy Options
28 inches B004I43EG6 yes $4.80 Buy Options
28.5 inches B004I43EFM yes $10.88 Buy Options
29 inches B004I43EES yes $10.70 Buy Options
29.5 inches B004I43EE8 yes $11.02 Buy Options
30 inches B004I43EDY yes $10.22 Buy Options
30.5 inches B004I43EDE yes $10.90 Buy Options
31 inches B004I43ECU yes $10.52 Buy Options
32 inches B004I43EBQ yes $10.78 Buy Options
33 inches B004I43EB6 yes $10.80 Buy Options
34 inches B004I43EAC yes $4.74 Buy Options

Key Features

  • Classical profile V-belt with a 0.50" top width and 0.31" height
  • Envelope construction adds strength for use in demanding outdoor power equipment
  • High-strength Flexten tension members add synthetic reinforcement for tensile strength
  • Tolerates high ambient temperatures and sudden shock loads for longer belt life
  • Oil, heat, ozone and abrasion resistance allows use in abusive environments

Product Description

The Insta-Power classical profile V-belt has a 0.50” top width, is 0.31” high, is built by Goodyear Engineered Products with Flexten tension members, and is suitable for lawn and garden drives up to 20 horsepower where reverse- and quarter-turn drives are a factor. The belt is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The Insta-Power V-Belt is built with Flexten tension members made from aramid, a heat-resistant synthetic fiber five times stronger than steel. Flexten tension members increase tensile strength and reduce initial elongation by 50 percent to maintain dimensional stability so that drive performance is more consistent over the life of the belt. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength.

Traditional classical belts are designed for operating at higher speeds over small diameter pulleys and short-center distances. They can be used in multiple V-belt drives and are used frequently in abusive environments such as farming and manufacturing. They are constructed to withstand the heat of the outdoors and oily, dirt-filled manufacturing environments.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
