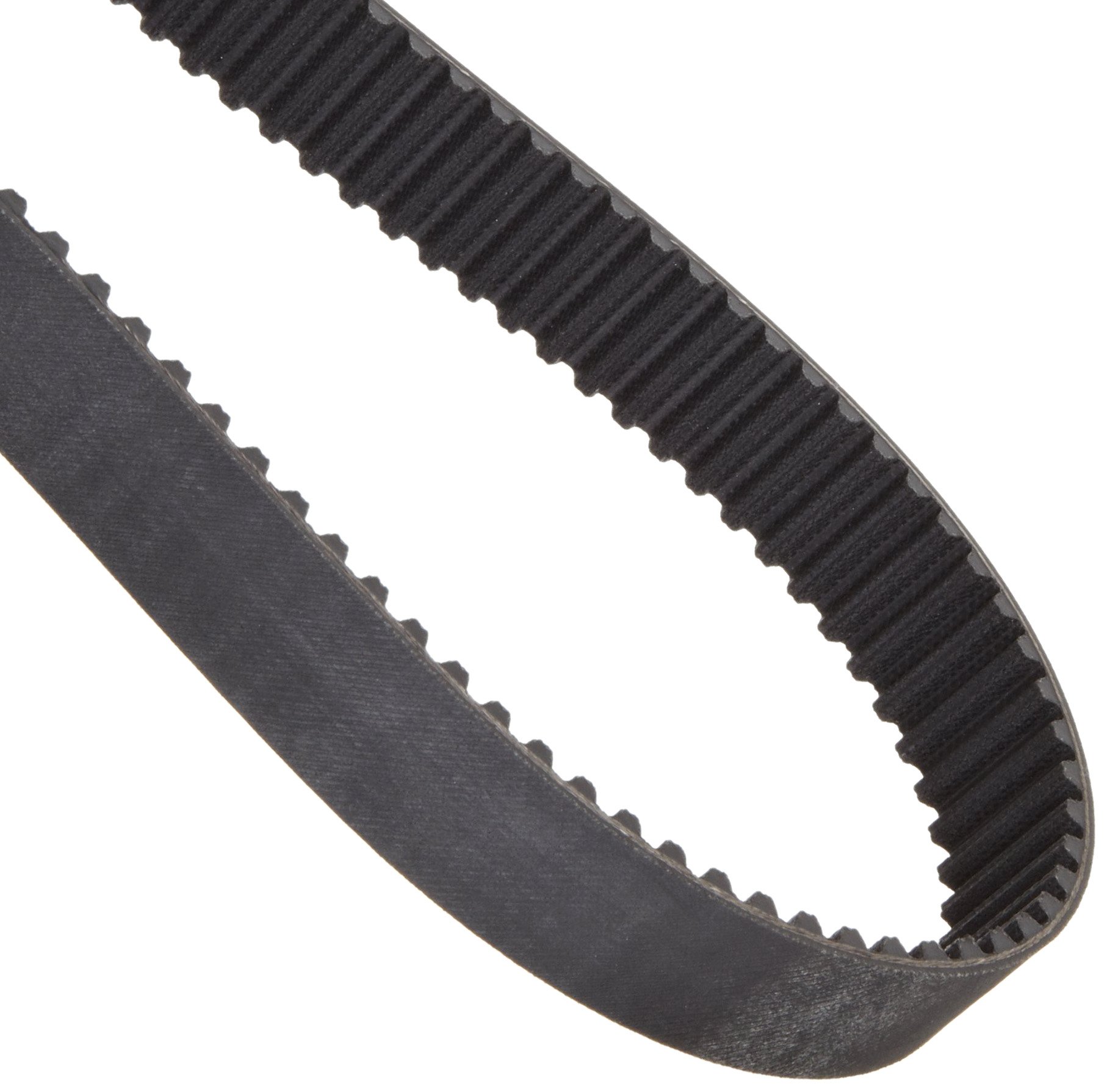

Goodyear Engineered Products Dual Hi-Performance Positive Drive Belt, Round Tooth Profile, 8mm Pitch, 8M Profile, Metric

Be the first to review this item

Product Specifications
0.500  inches
Material Type
Part Number
Brand Name
Goodyear Engineered Products
Cross Section
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 29? Order in-stock items in the next 9 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 33 Next 13 »
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Currently showing 1-20 of 33 Next 13 »
1040 millimeters B004ELAAE2 yes $52.23 Buy Options
1200 millimeters B004ELA8ZS yes $90.12 Buy Options
1280 millimeters B004ELA8TO yes $94.04 Buy Options
1440 millimeters B004ELA9JS yes $72.06 Buy Options
1440 millimeters B004ELA8J4 yes $101.50 Buy Options
1440 millimeters B004ELA768 yes $164.14 Buy Options
1600 millimeters B004ELA6T6 yes $163.99 Buy Options
1600 millimeters B004ELA9C0 yes $77.87 Buy Options
1600 millimeters B004ELA89O yes $109.75 Buy Options
1760 millimeters B004ELA6GO Temporarily out of stock. Order now and we'll deliver when available. $161.02 Buy Options
1760 millimeters B004ELA81W yes $117.97 Buy Options
1800 millimeters B004ELA7ZO yes $120.49 Buy Options
1800 millimeters B004ELA92A yes $85.21 Buy Options
2000 millimeters B004ELA7OK yes $117.07 Buy Options
2400 millimeters B004ELA8BM yes $106.97 Buy Options
2400 millimeters B004ELA4WA yes $211.96 Buy Options
2400 millimeters B004ELA772 yes $154.55 Buy Options
2600 millimeters B004I43CQ8 yes $270.57 Buy Options
2600 millimeters B004ELA6ZK yes $165.90 Buy Options
2800 millimeters B004ELA7XQ yes $122.01 Buy Options

Key Features

  • Dual hi-performance positive drive round tooth profile synchronous belt with 8 mm pitch and 8M metric profile
  • Dual-sided round tooth belt for compact drives requiring accurate timing from either side of the belt or rotation direction changes
  • Fiberglass tension cords provide synthetic reinforcement for tensile strength
  • Molded-rubber compounded construction decreases flex fatigue for longer product life
  • Universal drop-in replacement for existing HTD sprockets ensures compatibility across multiple drive configurations

Product Description

The dual hi-performance positive drive round tooth profile synchronous belt has a 8 mm pitch, a 8M metric profile, is built by Goodyear Engineered Products, and is suitable for drive applications where reverse rotation drive shaft synchronization in a compact space is required, such as in small tools and home appliances. The belt has round teeth on both sides for use in drives that require synchronous transmission from both sides of the belt, or rotational direction changes. It has fiberglass tension cords that add synthetic reinforcement, increasing tensile strength and resistance to shrinkage and elongation. The molded-rubber compounded construction adds flexibility, extending the life of the belt, and it is oil, heat, ozone, and abrasion resistant. This dual-sided belt is designed to drop into corresponding HTD sprockets with minimal interference during mesh for increased horsepower without slippage or speed variation across multiple drive configurations.

Synchronous belts (also known as timing belts) have teeth on the underside of the belt that join with the grooves in a rotating pulley to transmit power at a constant speed without slippage. They are made of compounded rubber and are reinforced lengthwise with fiberglass cords for added strength. The belts require minimal re-tensioning and maintenance, no lubrication, and provide quiet operation. Synchronous belts are used in industrial applications such as farm, textile, mining, and printing machinery, and consumer applications such as office equipment, home appliances, and automobiles.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
