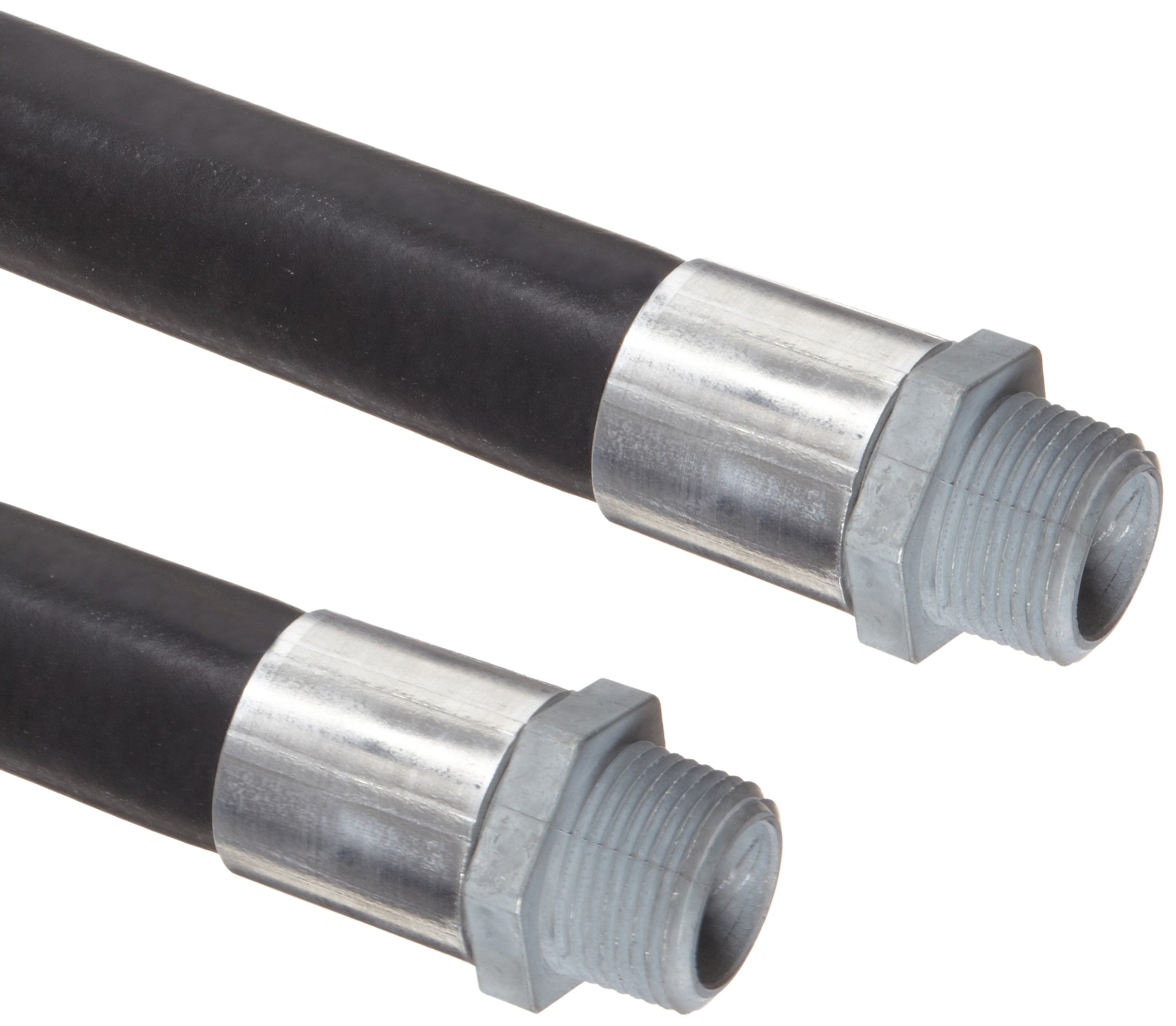

Goodyear EP Pacer Black Rubber Gasoline Dispensing Hose Assembly, NPT Male Couplings, 50 PSI Maximum Pressure

Be the first to review this item

Product Specifications
Pkg Qty
1
For Use With Product Type
Petroleum
Color Name
Black
Material Type
Nitrile Rubber
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Pacer
Compatible Material
Gasoline
Upper Temperature Range
140  Degrees Fahrenheit
Specification Met
UL 330 , CUL
Reinforcement Material
Synthetic yarn with static wire
Max Pressure
50  PSI
Connector Type
Threaded
UNSPSC Code
40142011
Style Name
NPT Male
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 9 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Inside Diameter Outer Diameter Overall Length Connection Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-10 of 10
3/4" 1.15" 12 ft 3/4" B0070RTY9Y yes $54.53 Buy Options
3/4" 1.13" 10 ft 3/4" B0070RTZHK yes $50.64 Buy Options
3/4" 1.15" 14 ft 3/4" B0070RTXMW yes $81.65 Buy Options
3/4" 1.13" 20 ft 3/4" B0070RU0HY yes $79.02 Buy Options
3/4" 1.13" 8 ft 3/4" B0070RTZ1G yes $39.21 Buy Options
3/4" 1.13" 17 ft 3/4" B0070RTZWA yes $67.04 Buy Options
1" 1.38" 8 ft 1" B0070RU11Y yes $111.00 Buy Options
1" 1.38" 17 ft 1" B0070RU218 yes $44.55 Buy Options
1" 1.38" 10 ft 1" B0070RU1KK yes $118.60 Buy Options
1" 1.38" 20 ft 1" B0070RU2JK yes $200.00 Buy Options

Key Features

  • Hose for dispensing gasoline in applications where meeting UL Standard 330 or CUL standards for dispensing flammable liquids is necessary
  • Nitrile synthetic rubber tube for resistance to oil, solvents, and aromatic compounds, with a Chemivic (Buna-N-vinyl) cover for resistance to oil, abrasion, and ozone
  • Spiral synthetic yarn reinforcement with static wire for strength
  • Temperature range of -40 to +140 degrees F (-40 to +60 degrees C)
  • Two factory-installed cast zinc male NPT fittings with crimped aluminum ferrules

Product Description

This Goodyear Engineered Products Pacer gasoline dispensing hose assembly is suitable for dispensing gasoline in a wide range of applications where meeting UL Standard 330 or CUL standards for dispensing flammable liquids is necessary. Its nitrile synthetic rubber tube resists oil, solvents, and aromatic compounds, and its black Chemivic (Buna-N-vinyl) synthetic rubber cover resists oil, abrasion, and ozone. Its spiral synthetic yarn reinforcement with static wire provides the strength for a maximum pressure of 50 pounds per square inch (psi). This hose assembly can withstand temperatures ranging from -40 to +140 degrees F (-40 to +60 degrees C). It meets Underwriter's Laboratories (UL) Standard 300 and Underwriter's Laboratories of Canada (CUL) standards for dispensing flammable liquids, and comes equipped with two factory-installed cast zinc male National Pipe Taper (NPT) threaded couplings with crimped aluminum ferrules. This hose is suitable for conveying gasoline in a wide range of commercial, industrial, and agricultural applications.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.
