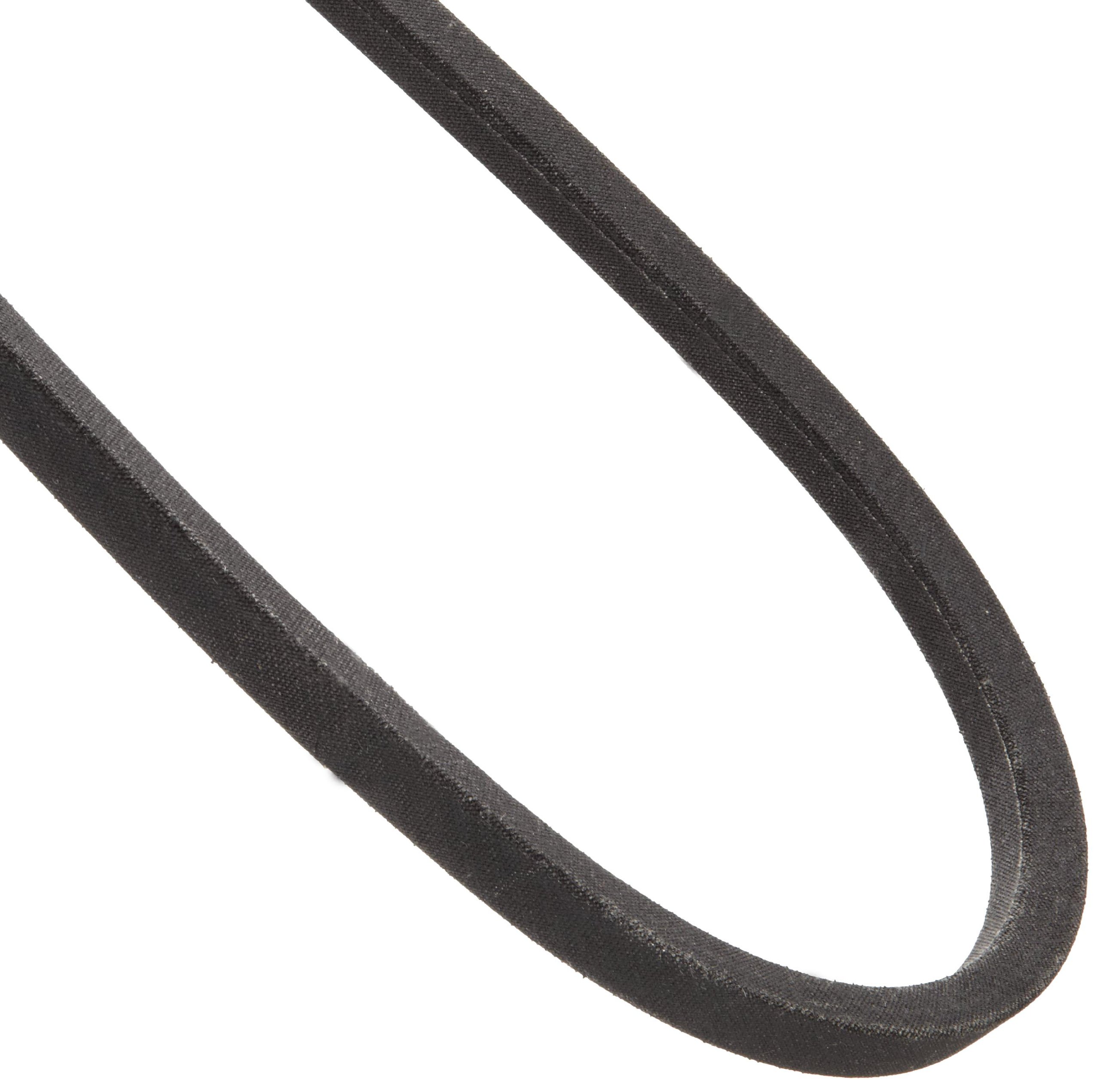

Goodyear Engineered Products Fractional Horsepower V-Belt, 3L Profile, Cogged, 0.38" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
Fractional Horsepower
Height
0.22  inches
Width
0.38  inches
Cross Section
3L
Material Type
Rubber
Color Name
Black
UNSPSC Code
26111801
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 15 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 50 Next 20 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 50 Next 20 »
57" 3L570 B004ELAD26 yes $8.90 Buy Options
59" 3L590 B004ELACZY yes $8.37 Buy Options
60" 3L600 B004ELACZE yes $9.37 Buy Options
61" 3L610 B004ELACXG yes $9.67 Buy Options
14" 3L140 B004ELAEE8 yes $4.68 Buy Options
15" 3L150 B004ELAECU yes $6.34 Buy Options
33" 3L330 B00006U0JL yes $7.44 Buy Options
16" 3L160 B004ELAEBG yes $6.55 Buy Options
62" 3L620 B004ELACWW Usually ships in 2 to 4 weeks $8.72 Buy Options
63" 3L630 B004ELACV8 yes $9.82 Buy Options
17" 3L170 B004ELAEAW yes $4.66 Buy Options
64" 3L640 B004ELACUO yes $11.17 Buy Options
55" 3L550 B00006U0H7 yes $8.62 Buy Options
24" 3L240 B004ELAE48 yes $6.29 Buy Options
25" 3L250 B004ELAE34 yes $4.52 Buy Options
18" 3L180 B004ELAEA2 yes $4.40 Buy Options
65" 3L650 B004ELACTA yes $9.78 Buy Options
66" 3L660 B004ELACSG yes $9.81 Buy Options
19" 3L190 B004ELAE98 yes $6.77 Buy Options
67" 3L670 B004ELACR2 yes $10.10 Buy Options

Key Features

  • 3L classical profile V-belt is 0.22" high and 0.38" wide
  • Raw-edge construction provides the flexibility required for short-center distances
  • Suitable for light-duty, fractional horsepower motors of 1 horsepower or less
  • Low vibration reduces noise
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The 3L Fractional Horsepower (FHP) V-belt has a classical profile, measures 0.22” high and 0.38” wide, and is built by Goodyear Engineered Products with Vytacord tension members for light-duty applications with small-sheave diameter requirements. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The FHP belt is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The belt is backed in oil- and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the joined belt. The fabric bonds to the V-sections to maintain the singularity of the belt.

Fractional horsepower V-belts are used on light-duty drives of 1 horsepower (hp) or less. They are suitable for light machinery, such as furnace fan drives, shop equipment, home appliances, and blowers. They are oil, heat, ozone and abrasion resistant, and low vibration reduces noise. FHP V-belt efficiency begins at 93% when used with smaller sheaves and increases as the sheave diameter increases.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
