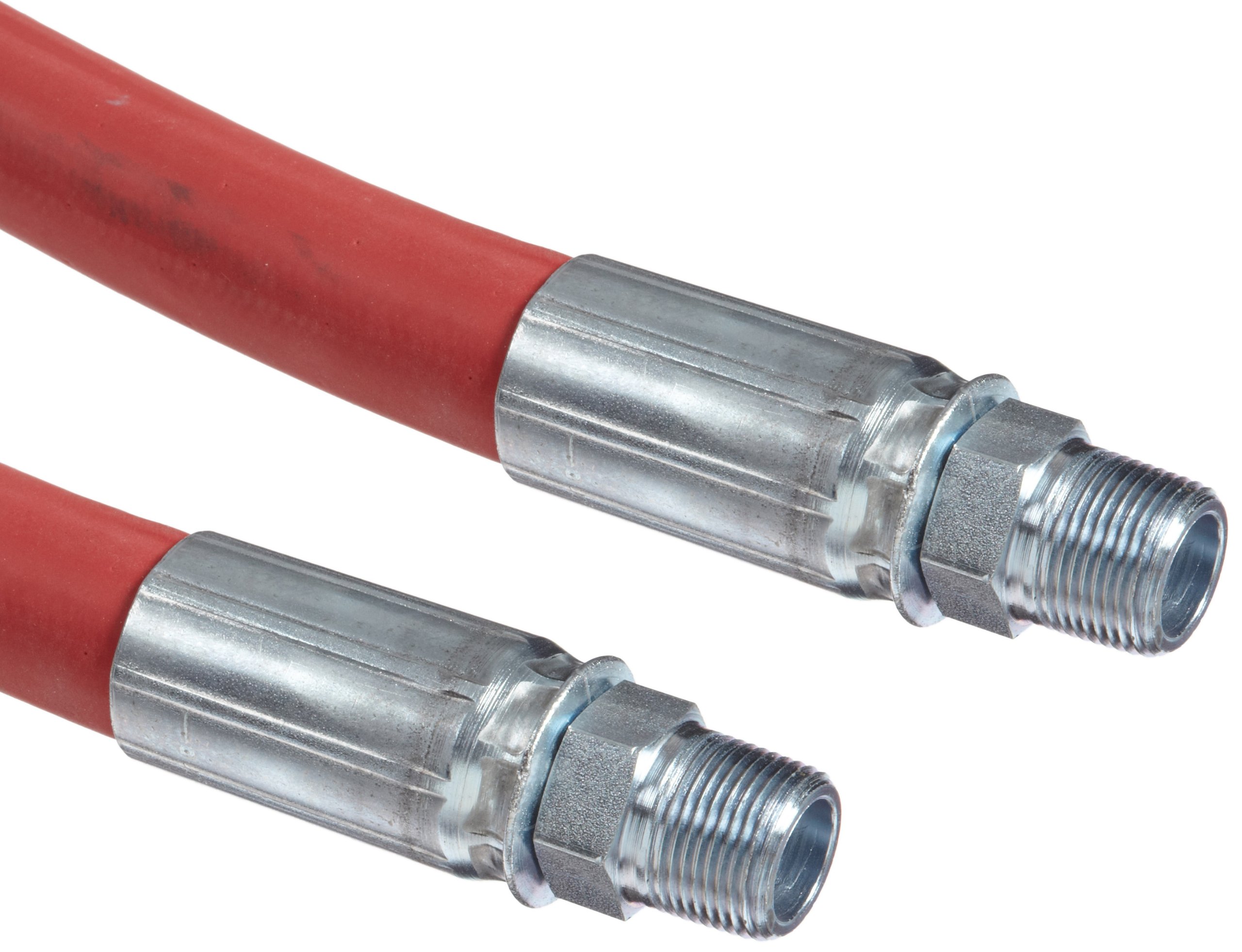

Goodyear EP Flexsteel 250 Steam Red Rubber Steam Hose Assembly, 3/4" Male NPT Connection, 250 PSI Maximum Pressure, 50' Length, 3/4" ID

Be the first to review this item

ASIN B0070R9PZW

Specifications for this item
Part Number
53907612405098
Brand Name
Goodyear Engineered Products
Reinforcement Material
Braided Steel Wire
Style Name
Threaded
Number of Items
1
For Use With Product Type
Steam
Color Name
Red
Material Type
Rubber
Outside Diameter
1-1/4  inches
Outside Diameter
1-1/4  inches
Size Name
3/4"
Manufacturer Series Number
Flexsteel 250 Steam
Compatible Material
Water , Steam
Upper Temperature Range
425  Degrees Fahrenheit
Inside Diameter
3/4  inches
Maximum Pressure
250  PSI
Connector Type
Male NPT x Male NPT
Overall Length
50  feet
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit
List price:
$435.75
Price:
$410.37
You save:
$25.38 (6%)
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 14 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Steam hose for cleaning, heat control, fire prevention, thawing, blowout service, steam pumps, and hoists in open-end or permanent installation operations.
  • Special Pyrosyn (EPDM) synthetic rubber tube and cover for high heat resistance
  • Reinforced with two steel wire braids for extra strength
  • Temperature range of 0 to +450 degrees F (-18 to +232 degrees C)
  • Two male NPT crimp couplings

Package Details

Shipping Weight: 34.85 pounds
Package Size: 32.3 x 25.7 x 9 inches

Product Description

This branded steam hose is manufactured for cleaning, heat control, fire prevention, pumping, thawing, blow-out service, steam pumps, and hoists in open-end or permanent installation operations. Its tube and cover are made of Pyrosyn, a special form of EPDM (ethylene propylene diene monomer) synthetic rubber that is highly resistant to heat. With an inner diameter (ID) of 3/4", this hose is reinforced with two layers of braided steel wire to provide the strength necessary to reach and maintain its maximum pressure rating of 250 psi. It is capable of functioning effectively at temperatures ranging from 0 to +450 degrees F (-18 to +232 degrees C), and it comes equipped with two male NPT crimp couplings. This hose is typically used in refineries, shipyards, chemical plants, steel mills, foundries, and other heavy industrial applications where high strength is required and severe environmental conditions are encountered.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
