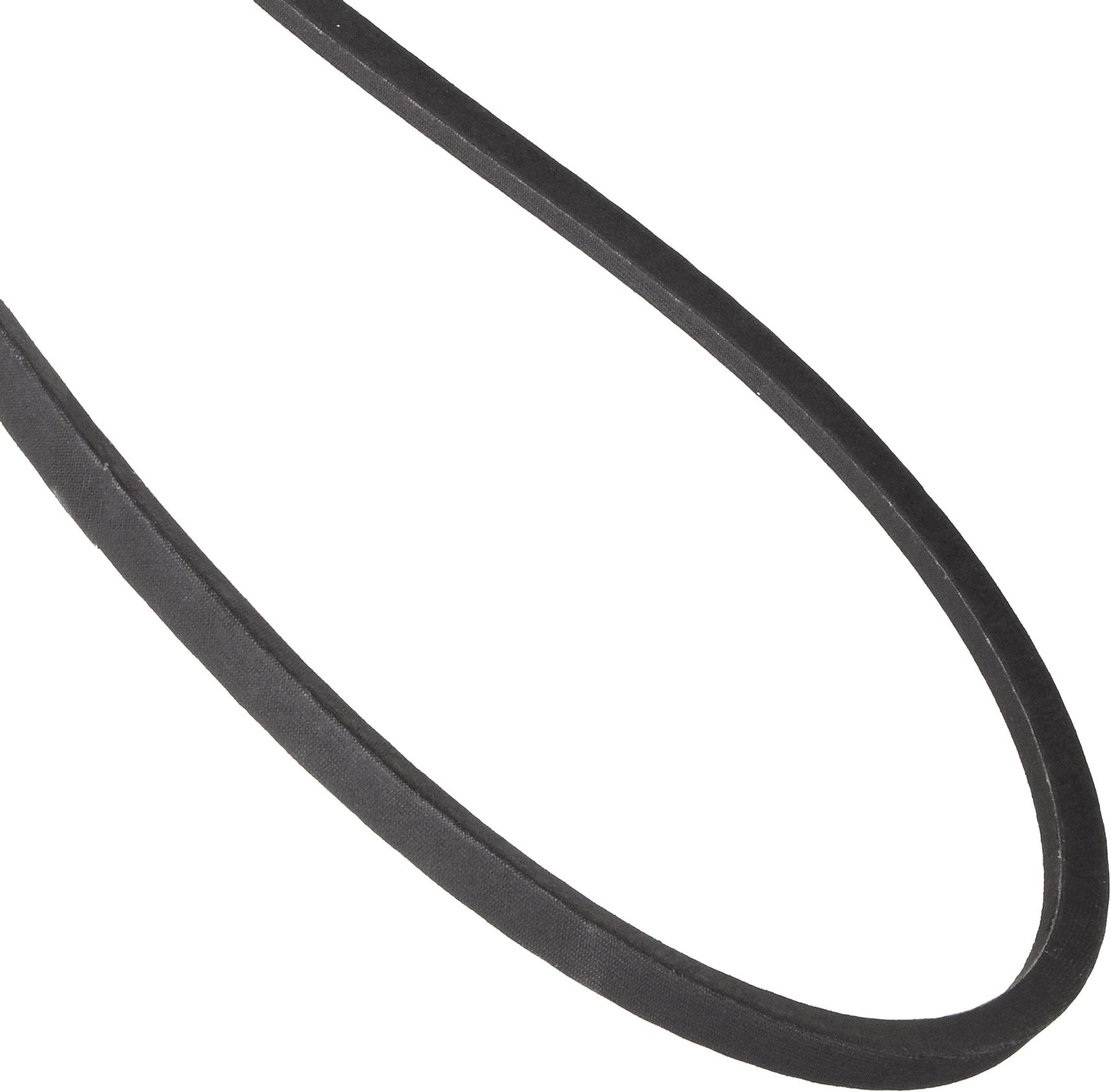

Goodyear Engineered Products HY-T Wedge Envelope V-Belt, 5V Profile, 0.62" Width

Be the first to review this item

Product Specifications
Manufacturer Series Number
HY-T Wedge Envelope
Height
0.53  inches
Width
0.62  inches
Cross Section
5V
Material Type
Rubber
Color Name
Black
UNSPSC Code
26111801
Brand Name
Goodyear Engineered Products
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 20 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 31 Next 11 »
Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-20 of 31 Next 11 »
67" 5V670 B00006U0E4 yes $32.36 Buy Options
56" 5V560 B00006U0DV yes $27.56 Buy Options
118" 5V1180 B00006U0DT yes $53.78 Buy Options
63" 5V630 B00006U0DG yes $30.62 Buy Options
50" 5V500 B004I43DEY yes $25.68 Buy Options
85" 5V850 B004I43D80 yes $41.25 Buy Options
160" 5V1600 B004I43CY0 yes $72.84 Buy Options
75" 5V750 B00006U0E6 yes $36.47 Buy Options
125" 5V1250 B004ELA7AY yes $48.99 Buy Options
71" 5V710 B00006U0E5 yes $30.43 Buy Options
132" 5V1320 B004ELA74K yes $51.33 Buy Options
150" 5V1500 B004ELA6NW yes $66.73 Buy Options
140" 5V1400 B004ELA6X2 yes $62.44 Buy Options
170" 5V1700 B004ELA66O yes $72.32 Buy Options
180" 5V1800 B004ELA5Z6 Usually ships in 2 to 3 weeks $71.60 Buy Options
190" 5V1900 B004ELA5TC yes $85.35 Buy Options
212" 5V2120 B004ELA4ZC yes $94.59 Buy Options
200" 5V2000 B004ELA5BU yes $86.94 Buy Options
236" 5V2360 B004ELA4HK yes $102.05 Buy Options
250" 5V2500 B004ELA4AW yes $107.72 Buy Options

Key Features

  • 5V profile V-belt with a 0.62" top width
  • Envelope construction adds strength for use in pulsating drives with long-center distances
  • Narrow design reduces belt drive width and weight for improved transmission of horsepower
  • Deep wedge profile creates more contact with sheaves for increased horsepower
  • Vytacord tension members add synthetic reinforcement for tensile strength

Product Description

The HY-T Wedge 5V profile V-belt has a 0.62” top width, is built by Goodyear Engineered Products with Vytacord tension members, and is suitable for industrial applications where mechanical or environmental abuse is a factor. The belt is commonly used for pulsating loads, vibrating drives, and long-center applications. It is static conductive, making it appropriate in the presence of explosive gases, liquids, powders, and other substances where the possibility of static sparks must be kept to a minimum.

The HY-T Wedge belt’s narrow design allows the use of smaller or fewer belts than classical V-belts to transmit an equivalent load, maximizing power transmission efficiency by reducing drive weight and size. It is built with Vytacord tension members, a synthetic reinforcement that increases overall tensile strength and lends dimensional stability so that drive performance is more consistent and predictable over the life of the belt. The belt is enveloped in a strengthening material during manufacturing made of a synthetic rubber compound, adding the strength necessary for belts to withstand high loading forces. It can also tolerate slippage, making it useful in pulsating, high-tension drives or those that are frequently stopped and re-started. The belt is backed in oil-and abrasion-resistant fabric, providing longitudinal flexibility and lateral strength to the belt.

Narrow or “wedge” designed V-belts have a narrower face width and smaller diameter than a traditional, classical V-belt, but can handle an equivalent load, maximizing efficiency. Smaller belts allow for the use of smaller sheaves, resulting in lower operating costs. They are constructed to withstand oily, dirt-filled manufacturing environments and the heat of the outdoors, and are frequently used in abusive environments such as farming and manufacturing,

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.
