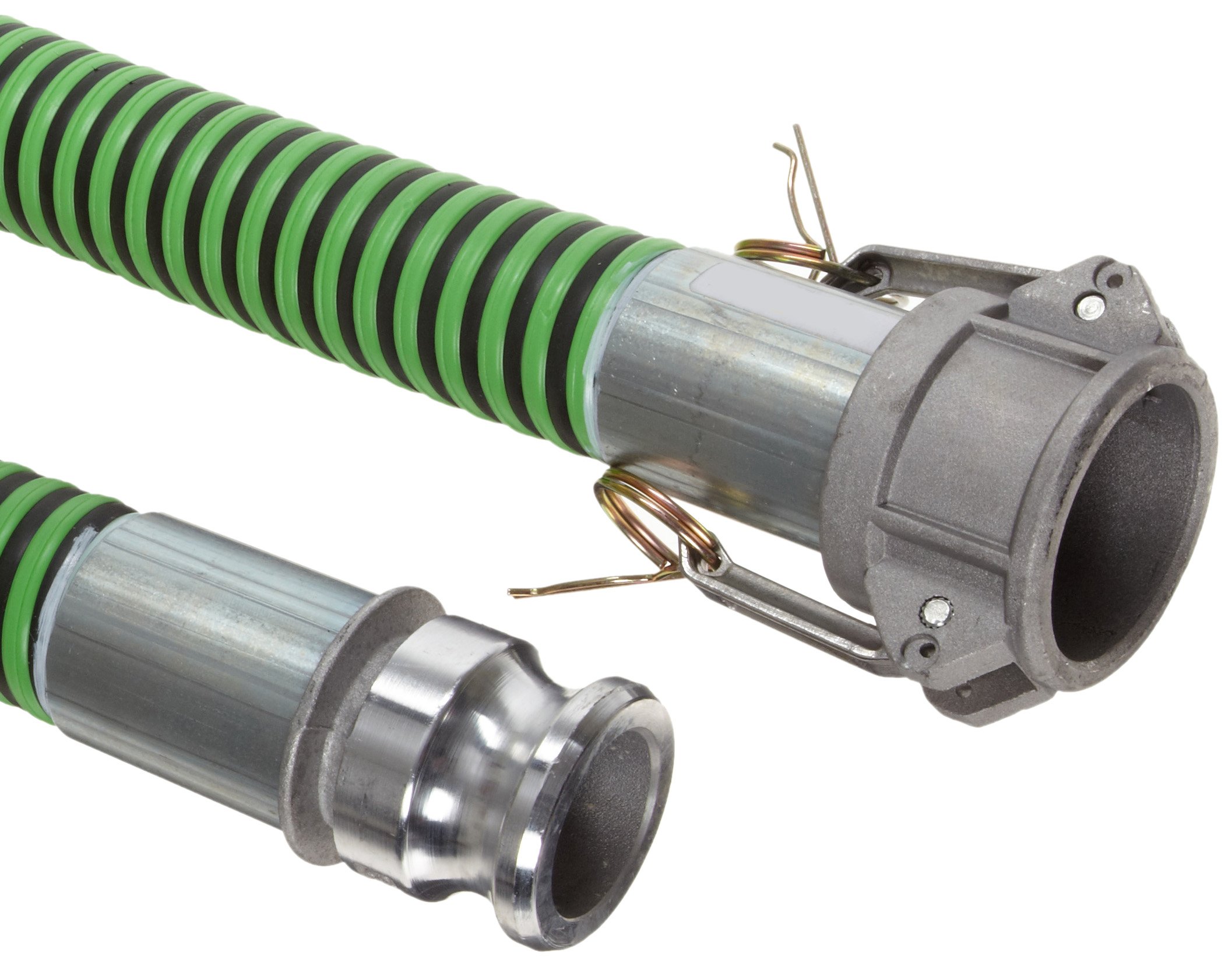

Goodyear EP Green Hornet XF Rubber Suction/Discharge Hose Assembly, Aluminum Cam And Groove Couplings

Be the first to review this item

Product Specifications
For Use With Product Type
Suction/Discharge
Color Name
Green
Material Type
Rubber
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Green Hornet XF
Compatible Material
Water
Upper Temperature Range
180  Degrees Fahrenheit
Reinforcement Material
Polyethylene Helix
Specification Met
RMA Class B
Connector Type
Cam And Groove
UNSPSC Code
40142000
Style Name
Aluminum Cam And Groove
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 6 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Inside Diameter Outside Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-5 of 5
1-1/2" 1.78" 3 50 PSI 50 ft 1-1/2" 1 B0070RWNYW 2 $201.03 Buy Options
1-1/2" 1.78" 3 50 PSI 25 ft 1-1/2" 1 B0070RWU18 2 $128.00 Buy Options
2" 2.40" 4 50 PSI 50 ft 2" 1 B0070RWPY0 1 $327.25 Buy Options
3" 3.47" 5 45 PSI 50 ft 3" 1 B0070RWRLQ 1 $601.00 Buy Options
3" 3.47" 5 45 PSI 25 ft 3" 1 B0070RWSRE 1 $205.28 Buy Options

Key Features

  • Medium duty suction and discharge hose for flexibility in cold weather and resistance to common chemicals in agricultural and sanitary applications
  • Black thermoplastic rubber, RMA Class B tube for durability and medium oil resistance
  • Rigid, lime-green polyethylene helix reinforcement for strength in medium duty applications
  • Temperature range of -40 to +180 degrees F (-40 to +82 degrees C)
  • Aluminum cam and groove couplings

Product Description

This medium duty, lightweight suction and discharge hose is manufactured to retain flexibility in cold weather, with a smooth-bore tube construction that minimizes material buildup and resists a variety of chemicals found in agricultural and sanitary industries. Its tube is made of RMA Class B thermoplastic rubber, which resists aging and water-dilute acids and bases, and is rated to undergo a maximum volume change of +65% while retaining a minimum of 50% of its tensile strength after exposure to oil. Its rigid, lime-green polyethylene helix reinforcement adds strength and is resistant to water, acids, alkalis, solvents, abrasion, and weathering. It is capable of functioning effectively at temperatures ranging from -40 to +180 degrees F (-40 to +82 degrees C), and its slightly corrugated outer helix promotes low drag, ease of coupling, and resistance to abrasion. This hose comes equipped with aluminum cam and groove couplings for convenient fitting and extension. It is commonly used in waste management, construction, agricultural, marine, and manufacturing industries.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
