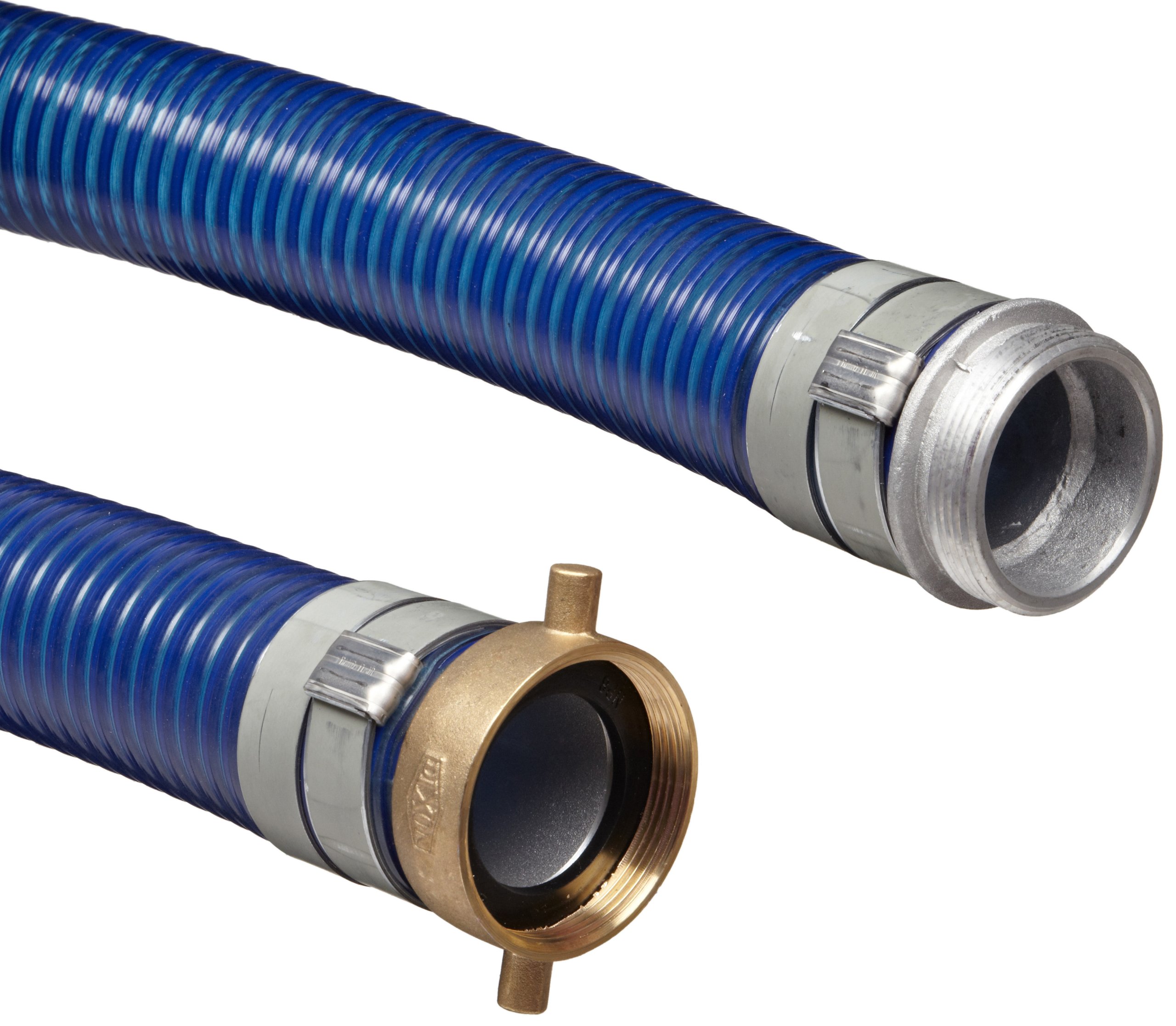

Goodyear EP Cold Blue PVC Suction/Discharge Hose Assembly, Aluminum Male x Brass Female Swivel Couplings

Be the first to review this item

Product Specifications
For Use With Product Type
Suction/Discharge
Color Name
Blue
Material Type
PVC (Polyvinyl Chloride)
Brand Name
Goodyear Engineered Products
Manufacturer Series Number
Cold Blue
Compatible Material
Water
Upper Temperature Range
150  Degrees Fahrenheit
Reinforcement Material
PVC Helix
Connector Type
Threaded
UNSPSC Code
40142000
Style Name
Aluminum Male x Brass Female Swivel
Operating Vacuum Pressure
29  in Hg
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Inside Diameter Outside Diameter Bend Radius Max Pressure Overall Length Connection Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-4 of 4
1-1/2" 1.77" 6 89 PSI 20 ft 1-1/2" 1 B0070RU9HA yes $93.70 Buy Options
2" 2.33" 8 80 PSI 20 ft 2" 1 B0070RUA60 yes $93.35 Buy Options
3" 3.4" 12 65 PSI 20 ft 3" 1 B0070RUB7S yes $258.25 Buy Options
4" 4.5" 16 55 PSI 20 ft 4" 1 B0070RUBQO yes $119.26 Buy Options

Key Features

  • Lightweight suction and discharge hose for applications requiring low-temperature flexibility
  • PVC tube for flexibility and general resistance to oils, alkalis, and weak acids
  • Blue rigid PVC helix reinforcement for maximum flex and crush damage resistance
  • Temperature range of -40 to +150 degrees F (-40 to +65 degrees C)
  • Aluminum male and brass female swivel couplings

Product Description

This lightweight, medium-duty water suction and discharge hose, with its full vacuum rating of 29" Hg, has a clear PVC tube for applications requiring low temperature flexibility, such as construction, agriculture, and mining. It is resistant to moisture, oils, alkalis, and weak acids, and its blue rigid PVC helix reinforcement offers maximum resistance to flex and crush damage. It is capable of functioning effectively at temperatures ranging from -40 to +150 degrees F (-40 to +65 degrees C), and is fitted with aluminum male and brass female swivel couplings.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.
