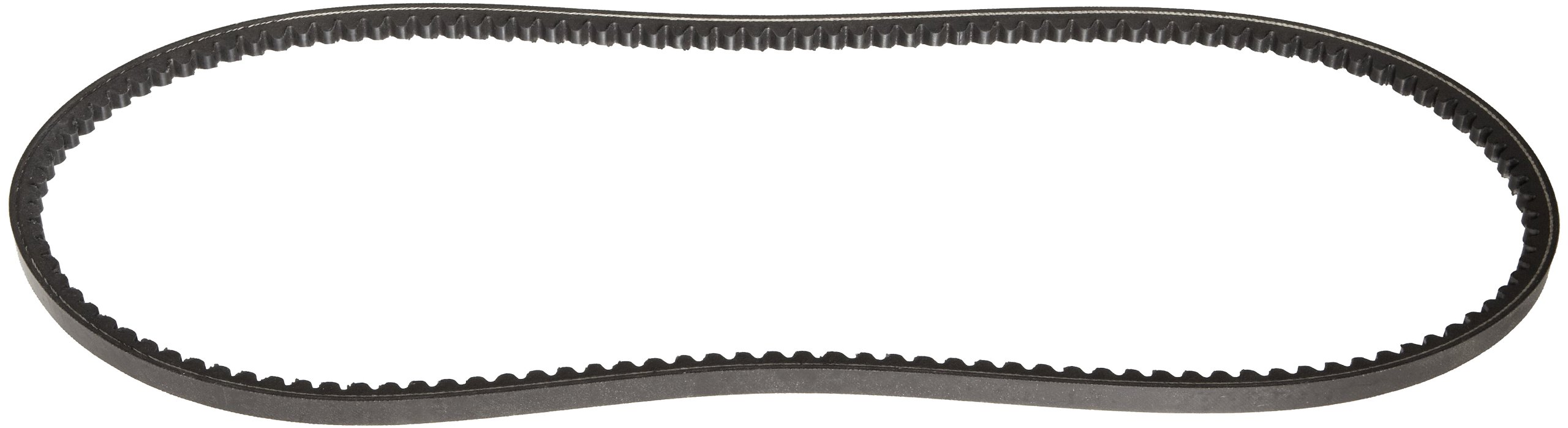

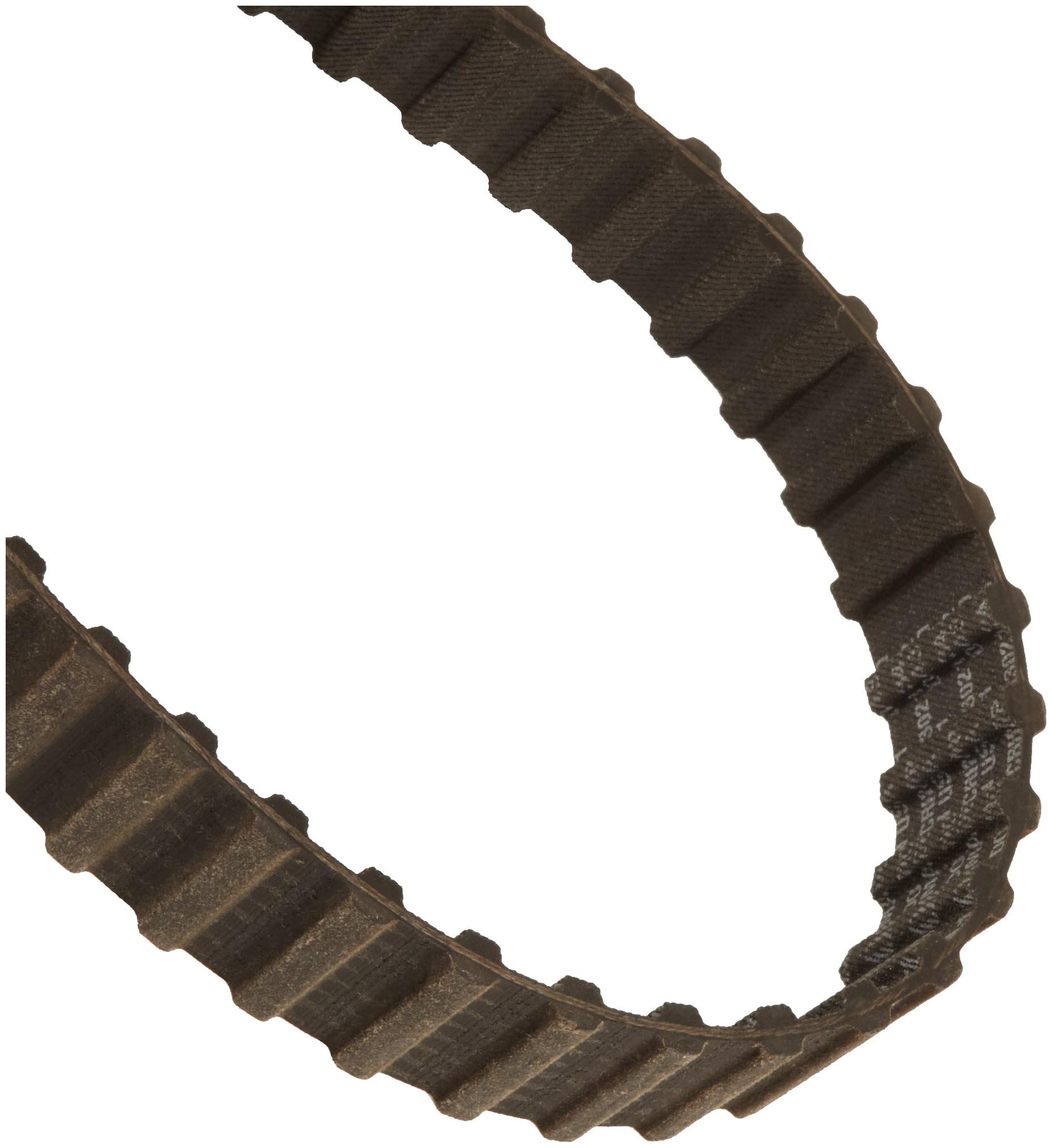

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Goodyear Engineered Products Dual Positive Drive Belt, Trapezoidal Tooth Profile, 0.500" Pitch, H (Heavy) Profile, Inch

Be the first to review this item

Product Specifications
0.500  inches
Cross Section
Material Type
Part Number
Brand Name
Goodyear Engineered Products
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Feb 3? Order in-stock items in the next 1 day 9 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 118 Next 20 »
Width Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All
Currently showing 1-20 of 118 Next 20 »
0.75" 100" D1000H075 B004ELA970 yes $85.32 Buy Options
0.75" 110" D1100H075 B004ELA8XU yes $92.20 Buy Options
0.75" 125" D1250H075 B004ELA8LW yes $103.85 Buy Options
0.75" 140" D1400H075 B004ELA8BC yes $112.08 Buy Options
0.75" 24" D240H075 B004ELACOK yes $32.84 Buy Options
0.75" 27" D270H075 B004ELACG8 yes $10.57 Buy Options
0.75" 30" D300H075 B00006U0SL yes $31.87 Buy Options
0.75" 33" D330H075 B004ELAC40 yes $39.20 Buy Options
0.75" 42" D420H075 B004ELABIM yes $40.16 Buy Options
0.75" 45" D450H075 B004ELABCI yes $47.03 Buy Options
0.75" 48" D480H075 B004ELAB6O yes $49.11 Buy Options
0.75" 51" D510H075 B004ELAB00 yes $50.50 Buy Options
0.75" 54" D540H075 B004ELAATM yes $53.24 Buy Options
0.75" 57" D570H075 B004ELAAJM yes $54.63 Buy Options
0.75" 60" D600H075 B004ELAAG0 yes $60.13 Buy Options
0.75" 63" D630H075 B004ELAAB0 yes $53.78 Buy Options
0.75" 66" D660H075 B004ELAA7E yes $64.24 Buy Options
0.75" 70" D700H075 B004ELAA1K yes $60.11 Buy Options
0.75" 75" D750H075 B004ELA9WA yes $67.17 Buy Options
0.75" 80" D800H075 B004ELA9PM yes $71.37 Buy Options

Key Features

  • Trapezoidal tooth profile synchronous belt with 0.500" pitch and heavy H profile
  • Dual-sided trapezoidal tooth belt for compact drives requiring accurate timing from either side of the belt or rotation direction changes
  • Fiberglass tension cords provide synthetic reinforcement for tensile strength
  • Molded-rubber compounded construction decreases flex fatigue for longer product life
  • Drop-in replacement for existing trapezoidal-profiled sprockets ensures compatibility across multiple drive configurations

Product Description

The dual positive drive trapezoidal tooth profile synchronous belt has a 0.500” pitch, a heavy H profile, is built by Goodyear Engineered Products, and is suitable for drive applications where reverse rotation drive shaft synchronization in a compact space is required, such as in machine tools, fans, and pumps. The belt has trapezoidal teeth on both sides and is used in drives that require synchronous transmission from one or both sides of the belt, or rotation direction changes. It has fiberglass tension cords that add synthetic reinforcement, increasing tensile strength and resistance to shrinkage and elongation. The molded-rubber compounded construction adds flexibility, extending the life of the belt, and it is oil, heat, ozone, and abrasion resistant. Designed to drop into existing trapezoidal-profiled sprockets, the belt is compatible with multiple drive configurations.

The dual positive drive belt is used in compact drives where a single belt is needed for its ability to transmit power from both sides, optimizing drive efficiency and performance. It can take the place of two or more single-sided belts, reducing the space and weight required for the design of the drive, reducing cost.

Synchronous belts (also known as timing belts) have teeth on the underside of the belt that join with the grooves in a rotating pulley to transmit power at a constant speed without slippage. They are made of compounded rubber and are reinforced lengthwise with fiberglass cords for added strength. The belts require minimal re-tensioning and maintenance, no lubrication, and provide quiet operation. Synchronous belts are used in industrial applications such as farm, textile, mining, and printing machinery, and consumer applications such as office equipment, home appliances, and automobiles.

Veyance Technologies, Inc. manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is based in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
