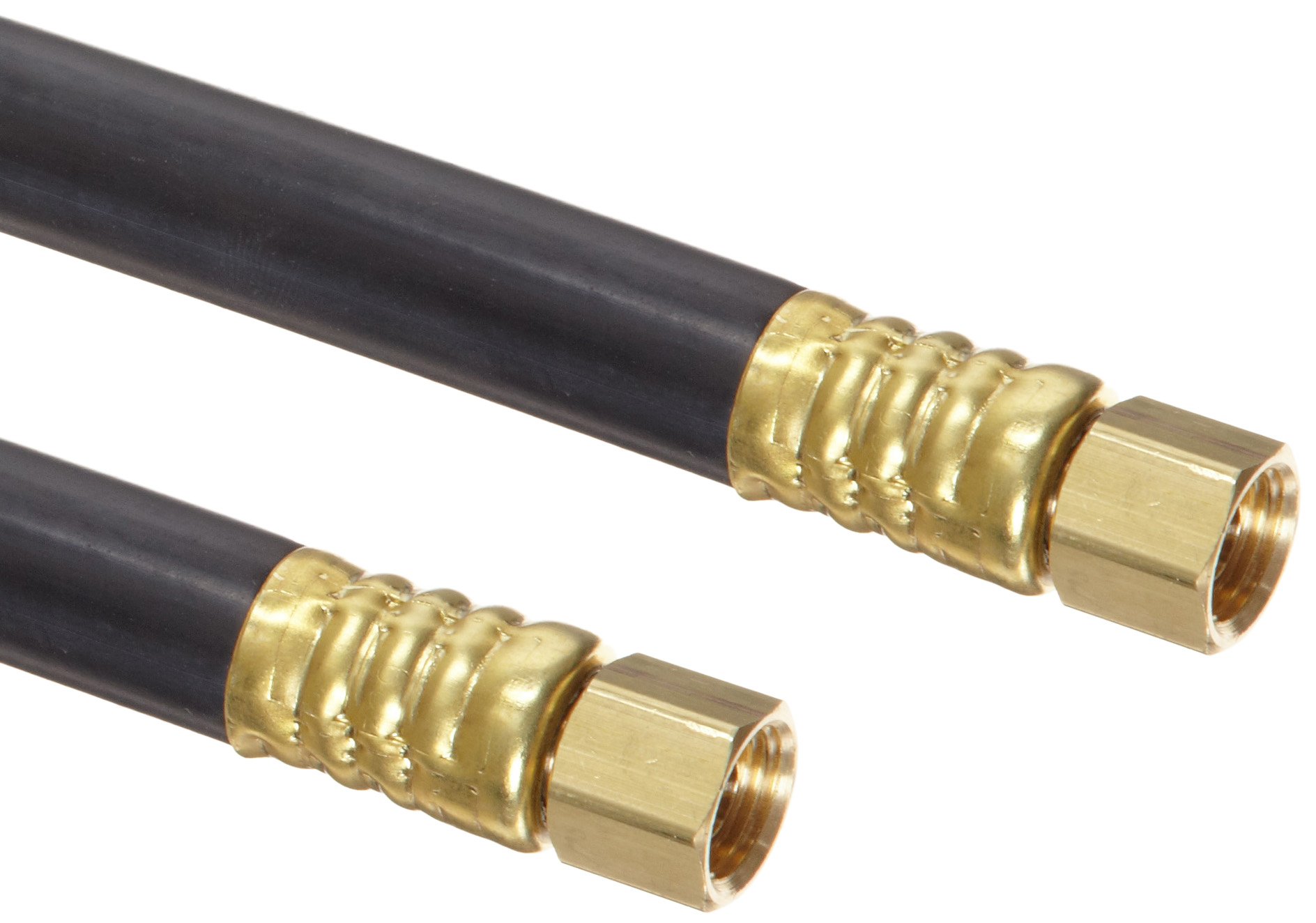

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Goodyear EP NR Spray Black Nylon Paint Spray Hose Assembly, Brass NPSM Female Couplings, 750 PSI Maximum Pressure

Be the first to review this item

Product Specifications
Brand Name
Goodyear Engineered Products
Reinforcement Material
Braided synthetic yarn
Bend Radius
N/A inches
Style Name
NPSM Female
Pkg Qty
1
For Use With Product Type
Spray
Material Type
Nylon
Color Name
Black
Outside Diameter
0.695  inches
Manufacturer Series Number
NR Spray
Compatible Material
Paint^Lacquers^Thinners^Turpentine^Air^Oil
Upper Temperature Range
190  Degrees Fahrenheit
Inside Diameter
3/8  inches
Max Pressure
750  PSI
Connector Type
Threaded
UNSPSC Code
40142005
Maximum Working Pressure
750  PSI
LowerTemperature Range
0  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 22 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Overall Length Connection Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-4 of 4
50 ft 1/4" B0070R9728 yes $111.90 Buy Options
15 ft 1/4" B0070R97GO yes $98.90 Buy Options
25 ft 1/4" B0070R981I yes $98.61 Buy Options
50 ft 1/4" B0070R98IQ yes $85.16 Buy Options

Key Features

  • Hose for conveying paint, lacquers, thinners, turpentine, air, oil, solvents, or chemicals in spray or other industrial applications
  • Nylon tube for resistance to chemicals and solvents, with a black RMA Class B synthetic rubber cover for resistance to oil
  • Braided synthetic yarn reinforcement for strength
  • Temperature range of 0 to 190 degrees F (-18 to +88 degrees C)
  • Two factory-installed brass female NPSM fittings

Product Description

The Goodyear Engineered Products NR Spray black nylon paint spray hose assembly is suitable for spraying or otherwise conveying a wide variety of paints, chemicals, or solvents in industrial and agricultural applications, and consists of a nylon tube for resistance to chemicals and solvents; and a black RMA Class B (medium oil resistance) synthetic rubber cover for resistance to oil. The cover experiences a maximum volume change of +65% and retains at least 50% of its tensile strength after exposure to oil. This hose assembly is reinforced with braided synthetic yarn for the strength necessary to reach its maximum pressure rating of 750 pounds per square inch (psi). It withstands temperatures ranging from 0 to 190 degrees F (-18 to +88 degrees C), and comes equipped with two factory-installed brass female National Pipe Straight thread for Mechanical Joint (NPSM) fittings. It is suitable for conveying paint, lacquers, thinners, turpentine, air, oil, solvents, or chemicals in spray or other industrial applications.

Industrial hoses and hose assemblies transfer or convey air or liquid in hose systems. When selecting industrial hoses or hose assemblies, use the STAMPED method to help determine the type of hose needed:

S= Size (ID, OD, and length)
T= Temperature (maximum and minimum temperatures of material being transported)
A= Application (industry or process)
M= Material (to be conveyed, type and concentration)
P= Pressure (maximum working pressure)
E= Ends (type of end connectors or couplings on hose)
D= Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses and hose assemblies are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.
