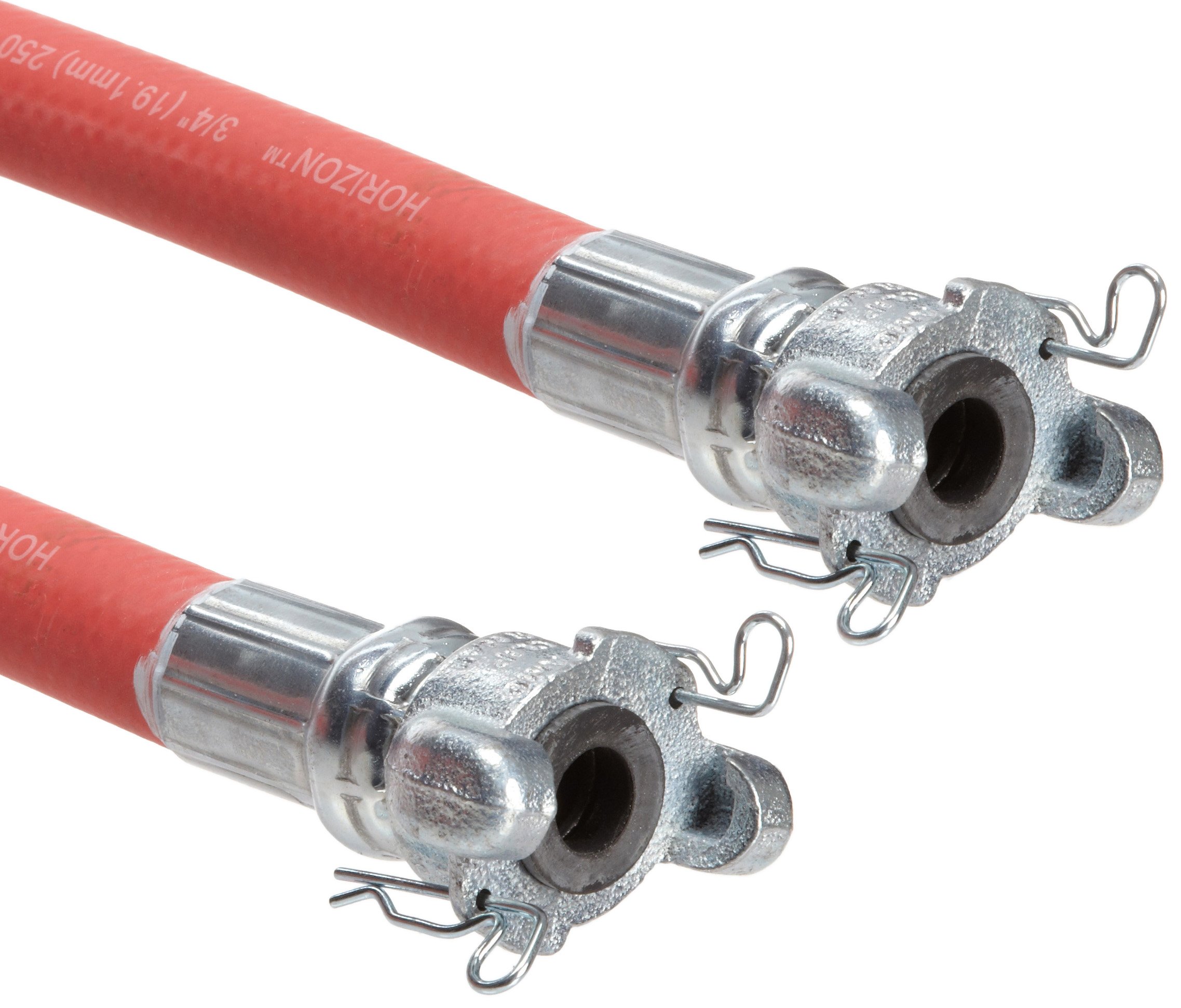

Goodyear Engineered Products Horizon 300 Red EPDM Jackhammer Hose Assembly, 3/4" Universal Coupler Connection, 150 PSI Maximum Pressure, 50' Length, 3/4" ID

Be the first to review this item

ASIN B0070RU3GM

Specifications for this item
Part Number
AMAZ-0295
Brand Name
Goodyear Engineered Products
Specification Met
RMA Class C
Reinforcement Material
Spiral synthetic yarn
Style Name
Universal Coupler
Number of Items
1
For Use With Product Type
Multipurpose Air
Color Name
Red
Material Type
EPDM (Ethylene Propylene Diene Monomer Rubber)
Outside Diameter
1-3/16  inches
Outside Diameter
1-3/16  inches
Size Name
3/4"
Manufacturer Series Number
Horizon
Compatible Material
Air , Water
Upper Temperature Range
190  Degrees Fahrenheit
Inside Diameter
3/4  inches
Maximum Pressure
300  PSI
Connector Type
Universal Coupler
UNSPSC Code
40142002
Maximum Working Pressure
110  PSI
Overall Length
50  feet
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hose designed for air tool applications on construction sites
  • Versigard (EPDM) RMA Class C synthetic rubber tube for limited oil resistance, with a Versigard (EPDM) synthetic rubber cover for resistance to heat, aging, chemicals, and ozone
  • Spiral synthetic yarn reinforcement for strength
  • Temperature range of -40 to +190 degrees F (-40 to +88 degrees C)
  • Two factory-installed, crimped, iron universal couplings with 150 psi maximum pressure rating

Package Details

Shipping Weight: 22.3 pounds
Package Size: 19.7 x 9.7 x 5.1 inches

Product Description

The Goodyear Engineered Products Horizon 300 Red Jackhammer Hose Assembly has a 3/4" inside diameter (ID) and is 50 ft. in length. Its Versigard (EPDM, ethylene propylene diene monomer) synthetic rubber tube has a Rubber Manufacturers Association (RMA) Class C, limited oil resistance rating, which means that it will undergo a maximum volume change of +100% and maintain at least 40% of its tensile strength after exposure to oil. Its cover is made of red Versigard (EPDM) synthetic rubber for resistance to heat, aging, chemicals, and ozone. This hose is reinforced with spiral synthetic yarn for the strength necessary to reach and maintain its maximum pressure rating of 300 psi (couplings reduce internal pressure capability to 150 psi), and it is capable of functioning effectively at temperatures ranging from -40 to +190 degrees F (-40 to +88 degrees C). It comes equipped with two factory-installed, crimped, iron universal couplings (also referred to as "crowfoot" or "claw" couplings). This hose is manufactured specifically for air tool applications on construction sites, such as jackhammers.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method to help determine the type of hose needed:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

How can we improve our Product Description?

Important Information

Legal Disclaimer

The GOODYEAR (and Winged Foot Design) trademark is used by Veyance Technologies, Inc. under license from The Goodyear Tire & Rubber Company. Goodyear Engineered Products are manufactured and sourced exclusively by Veyance Technologies, Inc. or its affiliates.
