Genie Hoist, GH-5.6, Portable Lift, 250 lbs Load Capacity, Lift Height 18'

Be the first to review this item

ASIN B004QTPJI4

Specifications for this item
Number of Items
1
Maximum Lifting Height
220.5  inches
Part Number
GH5.6
Brand Name
Genie
Load Capacity
250  pounds
UNSPSC Code
24101602

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 23 hrs 52 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Material lift for construction, maintenance, and installation
  • Maximum lifting height of 18' 4.6" (5.60 m), with a load capacity of 250 lbs (113 kg) for safely lifting items
  • Hoist can be powered by CO2 or compressed air for convenience
  • Patented pistol-grip control handle for ease of use
  • Auto-lubricating oil reservoir on each piston inside cylinder for a smooth lift

Package Details

Shipping Weight: 69 pounds
Package Size: 55.5 x 19.8 x 14 inches

Product Description

Genie Logo
  • Hoist can be powered by CO2 or compressed air for convenience
  • Patented pistol-grip control handle for ease of use
  • Auto-lubricating oil reservoir on each piston inside cylinder for a smooth lift

The Genie GH-5.6 Super Hoist material lift is a compressed air- or CO2-powered lift with a portable and compact design for lifting, positioning, and installing heavy items. The lift has a one-piece platform with a weight capacity of 250 lbs (113 kg), which screws directly onto an auto-lubricating lifting cylinder, for smooth up and down movement.

Safety Features, 16' Hose, and Pistol-Grip Control

To ensure the lift stays in place while in use, it has wheel brakes and leg locks for safety. With a bottle-mounting bracket that accepts most common C02 bottles, including a 16' hose for added mobility, the lift can be operated using either compressed air or CO2. The lift is controlled by a patented pistol-grip control handle for lifting and lowering items and has folding legs to make the lift compact for storage.

Compact Design with 250 Lb Load Capacity

The lift has a stowed height of 4' 6" (1.37 m), a maximum lifting height of 18' 4.6" (5.60 m), and a load capacity of 250 lbs (113 kg). Platform dimensions are 1'7" (.48 m) (l) x 2' (.61 m) (w) and the base measures 4'5"/1.35 m corner to corner. Storage dimensions are 14 by 14 by 39.5" (.36 by .36 by 1 m) and weight is 82 lbs (37 kg). Recommended PSI is 85 or 5.86 bar.

About Material Lifts

Material lifts are used for lifting loads in a variety of applications, such as installation of electrical fixtures, ducts, drywall, ceiling panels and overhead sprinklers, among many others. For industrial use only.

About Genie Industries

Genie Industries, a subsidiary of Terex Corporation, was founded in 1966 with the introduction of the Genie Hoist, a portable pneumatic material lift. Genie is headquartered in Redmond, WA, and manufactures a variety of lifts, booms, light towers, and telehandlers.

Genie - Super Hoist Lifestyle Shot
Portable and compact lift can hoist up to 250 lbs. View larger.

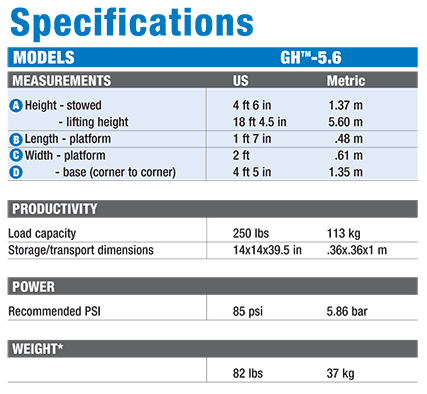

Genie - GH-5.6 Super Hoist Specifications
