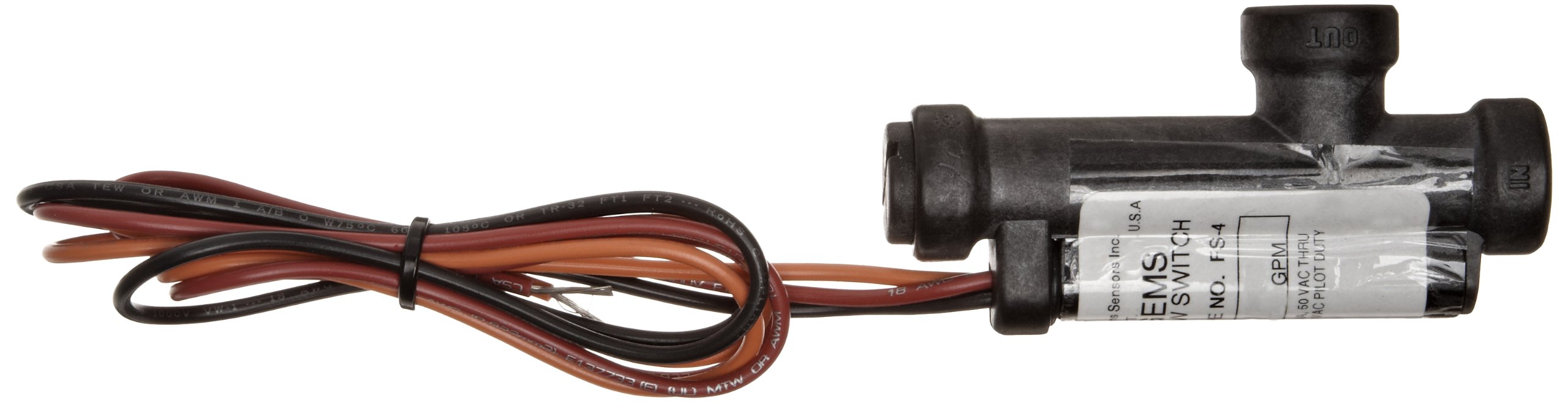

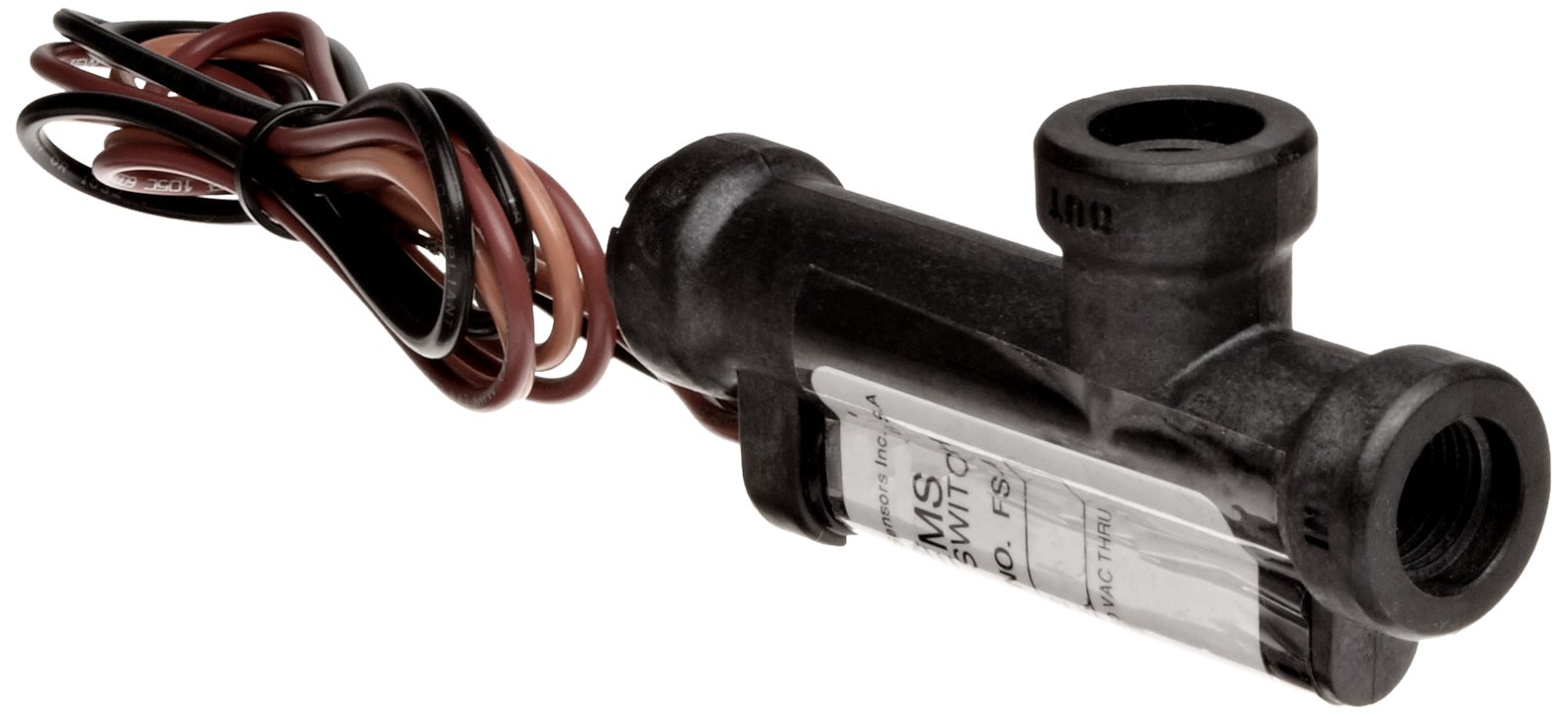

Gems Sensors FS-4 Series Ryton Flow Switch, Elbow, Piston Type, SPDT Switch, UNF-2B

Be the first to review this item

Product Specifications
Brand Name
Gems Sensors
Connector Type
UNF Female
Item Shape
Elbow
LowerTemperature Range
0  Degrees Fahrenheit
Manufacturer Series Number
FS-4
Material Type
PPS (Polyphenylene Sulfide)
Maximum Pressure
250  PSI
Seal Material Type
Viton
Specification Met
UL Recognized, CSA Listed, CE
Structure Description
Piston Type
Upper Temperature Range
225  Degrees Fahrenheit

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, June 20? Order in-stock items in the next 5 hours 21 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 6 of 6
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All
Currently showing 6 of 6
9/16"-18 UNF-2B 0.1 gpm Flow Setting B006Z10FVC In Stock (1) $134.33
9/16"-18 UNF-2B 0.25 gpm Flow Setting B006Z10G5M In Stock (1) $134.33
9/16"-18 UNF-2B 0.5 gpm Flow Setting B006Z10GGQ In Stock (3) $134.33
9/16"-18 UNF-2B 0.75 gpm Flow Setting B006Z10GNE In Stock (1) $131.72
9/16"-18 UNF-2B 1 gpm Flow Setting B006Z10H2E In Stock (1) $131.72
9/16"-18 UNF-2B 1.5 gpm Flow Setting B006UKOI66 In Stock (1) $131.72

Key Features

  • Wetted Materials: Ryton, 316 Stainless Steel, Viton, Epoxy
  • Electrical Termination: 18 AWG, Zipcord, 24" long
  • Switch Type: SPDT (20VA)
  • Set Point Differential (Maximum): 0.2
  • Recommended Filtration: 50 micron

Product Description

FS-4 Series - Low Cost, Molded Plastic Construction. The FS-4 Series makes flow protection economical for a broad range of industrial applications such as welders, lubrication systems, medical sterilizers and laundry chemicals dispensing.
