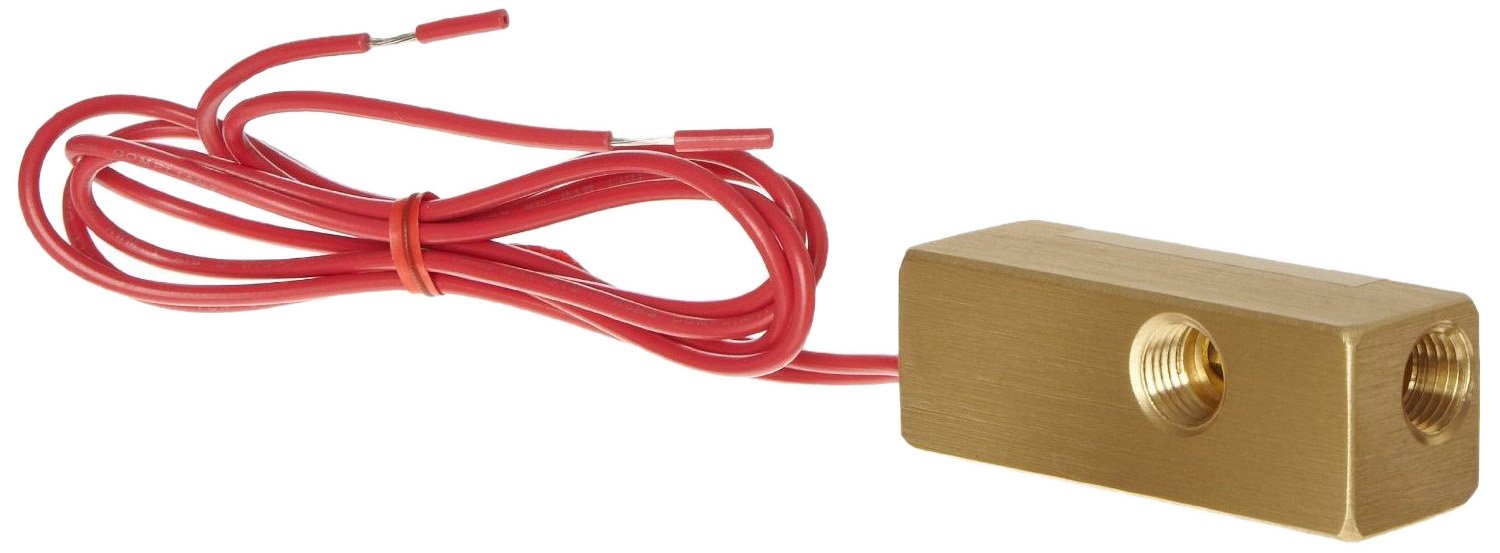

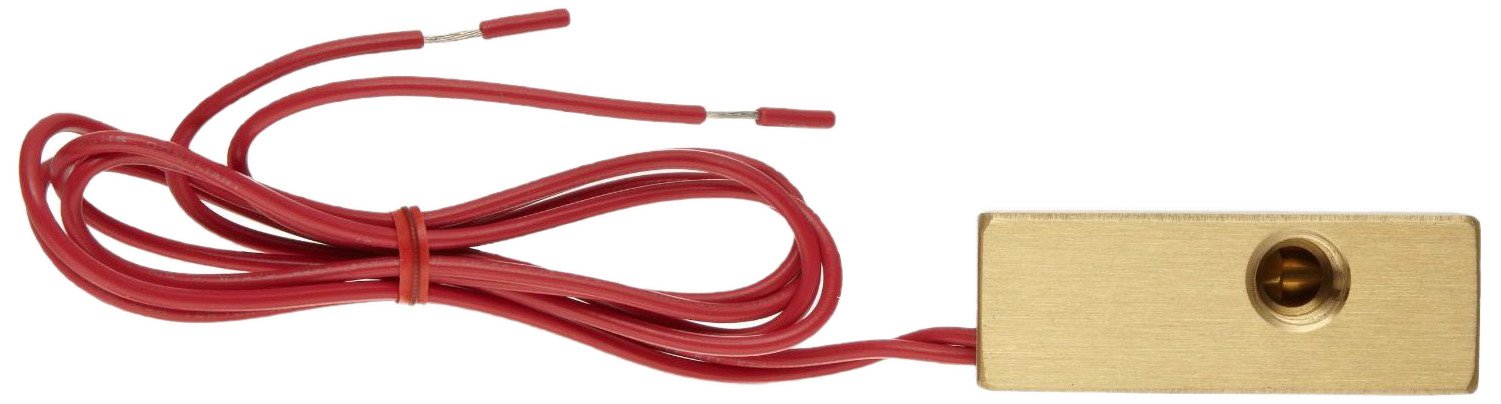

Gems Sensors FS-927 Series Brass Compact Flow Switch, Elbow, Piston Type, Normally Closed, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Elbow
Material Type
Brass
Structure Description
Piston Type
Brand Name
Gems Sensors
Manufacturer Series Number
FS-927
Upper Temperature Range
200  Degrees Fahrenheit
Specification Met
UL Recognized, CSA Listed, CE
Maximum Pressure
1000  PSI
Connector Type
NPT Female
UNSPSC Code
39122223
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 22 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1/4" NPT Female 0.1 gpm Flow Setting B006Z124S4 1 $91.82 Buy Options
1/4" NPT Female 0.25 gpm Flow Setting B006Z125IS 1 $87.83 Buy Options
1/4" NPT Female 0.5 gpm Flow Setting B006Z125VK 1 $91.82 Buy Options
1/4" NPT Female 0.75 gpm Flow Setting B006Z126B4 1 $92.11 Buy Options
1/4" NPT Female 1 gpm Flow Setting B006Z126SW 1 $91.75 Buy Options
1/4" NPT Female 1.5 gpm Flow Setting B006Z127LI 1 $91.82 Buy Options

Key Features

  • Wetted Materials: Brass, 316 Stainless Steel
  • Electrical Termination: 18 AWG, 24"-26" long PVC Leads
  • Switch Type: SPST, N.C. (20VA)
  • Set Point Differential (Maximum): 0.2
  • Recommended Filtration: 50 micron

Product Description

FS-927 Series - Small Design for Tight Instrumentation Packages. Measuring only 1˝ x 2-3/4˝, these compact switches are ideal for use where space is at a premium. Designed for use with water and oil, these switches are suitable for high volume OEM applications. They are ideal for coolant or lubricant flow monitoring in portable equipment and many other applications with space constraints.
