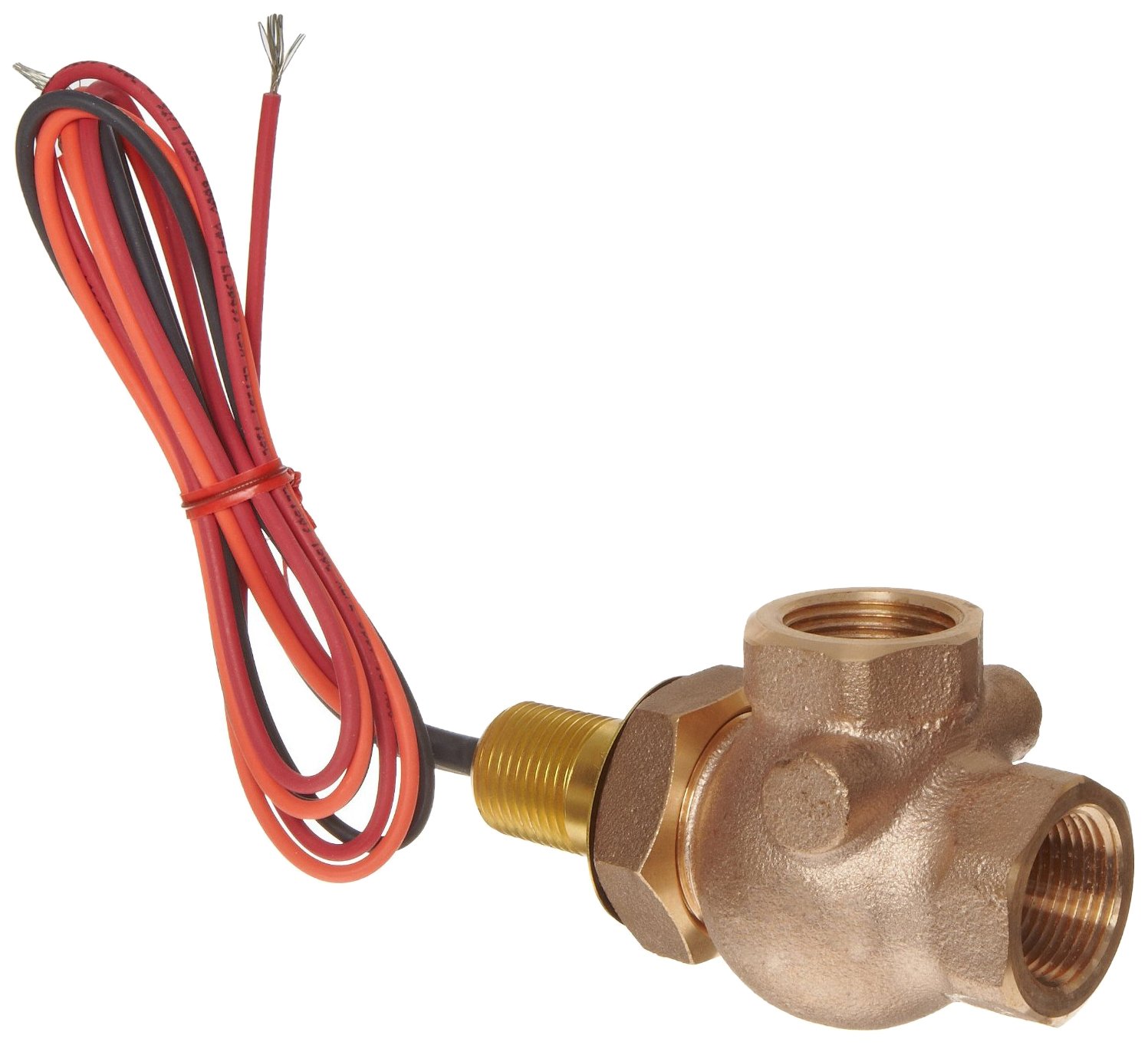

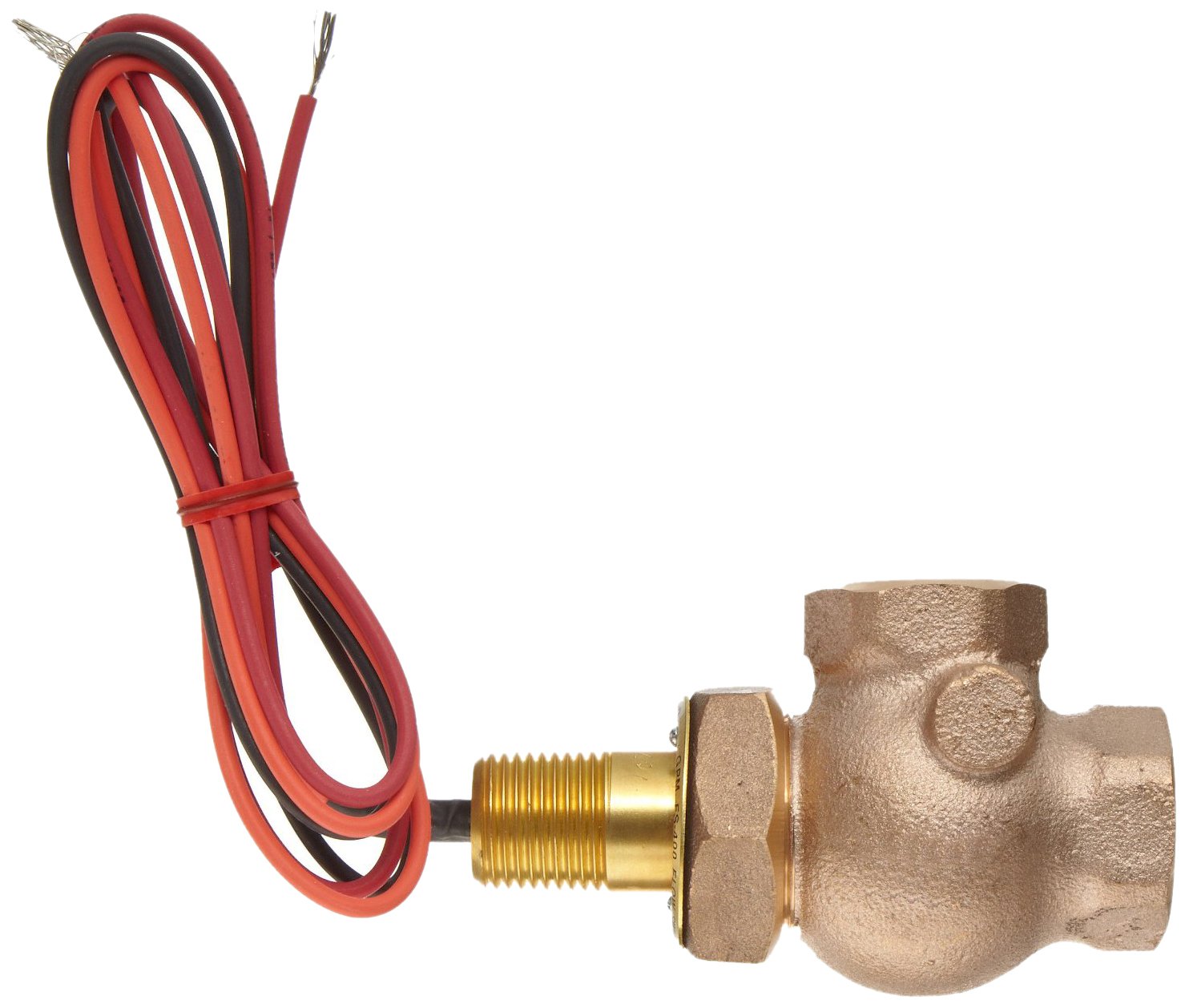

Gems Sensors FS-400 Adjustable Series Bronze Flow Switch, Elbow, Shuttle Type, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Elbow
Seal Material Type
Viton
Material Type
Bronze
Structure Description
Shuttle Type
Brand Name
Gems Sensors
Manufacturer Series Number
FS-400 Adjustable
Upper Temperature Range
180  Degrees Fahrenheit
Specification Met
UL Recognized, UL Explosion Proof, CE, CSA, FM
Maximum Pressure
400  PSI
UNSPSC Code
39122223
Connector Type
NPT Female
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 14 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-3 of 3
3/4" NPT Female 0.75 - 4.0 gpm Flow Setting Adjustment Range B006Z10KTE yes $202.30 Buy Options
3/4" NPT Female 2.0 - 8.0 gpm Flow Setting Adjustment Range B006Z10L1G yes $203.71 Buy Options
3/4" NPT Female 7.0 - 14.0 gpm Flow Setting Adjustment Range B006Z10LCK yes $196.89 Buy Options

Key Features

  • Wetted Materials: Bronze, Delrin, 316 Stainless Steel, Viton, Ceramic
  • Electrical Termination: 18 AWG, 24"-26" long Polymeric Leads
  • Switch Type: SPDT (20VA)
  • Set Point Differential (Maximum): 0.15
  • Recommended Filtration: 150 micron

Product Description

FS-400 Series - General Purpose, 90° Flow Path. Provides accurate flow detection in water and oil with 1% repeatability. Flow settings on the adjustable version can be easily changed without disassembly. A shuttle by-pass vane inside the housing is controlled externally using an ordinary flat-blade screwdriver. These switches are ruggedly constructed of non-corrosive materials and resist shock and vibration. Suitable for triggering alarms on interlocking shutdown circuitry when flow rate is improper to protect bearings, gears and cooling systems.
