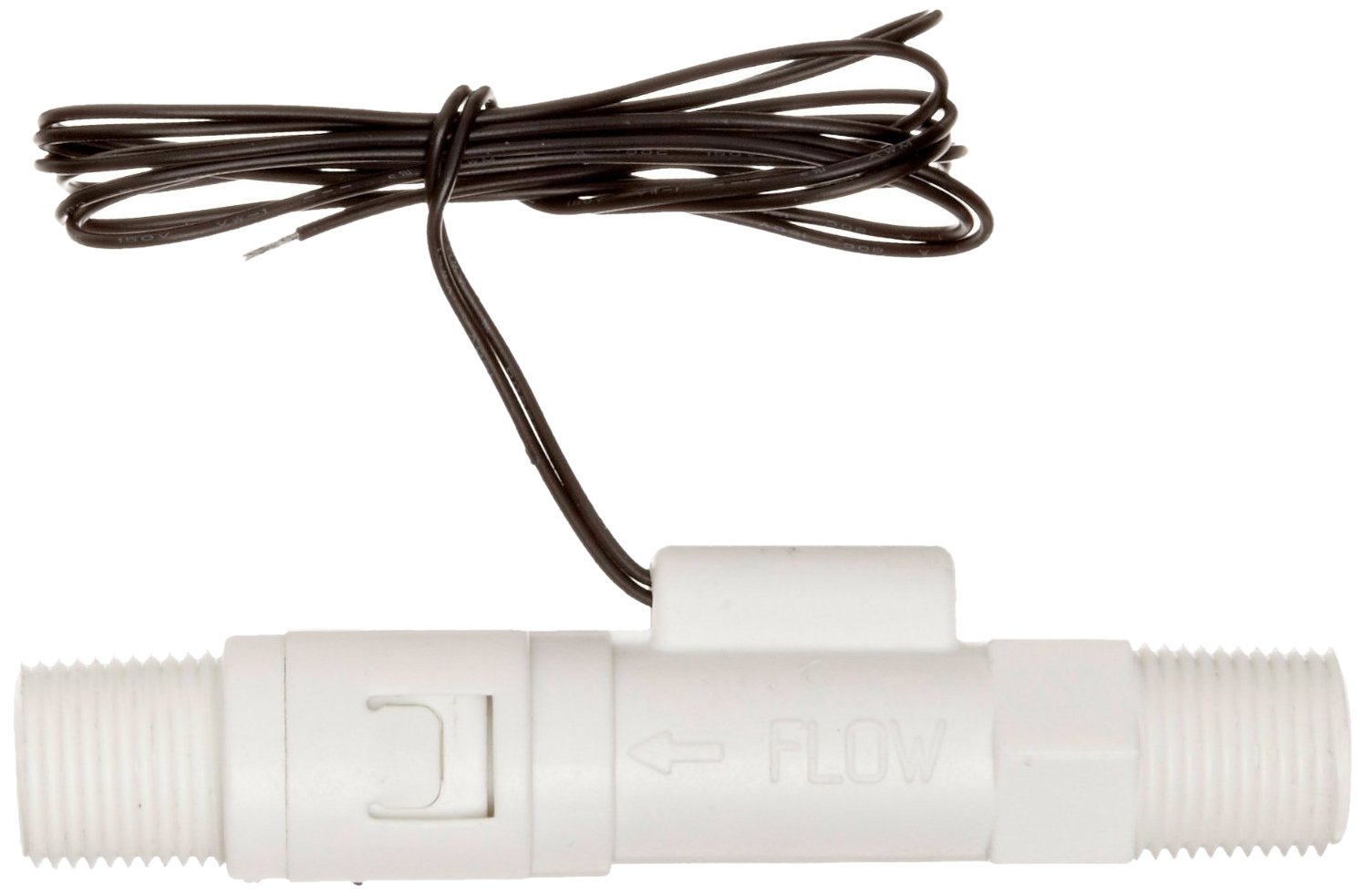

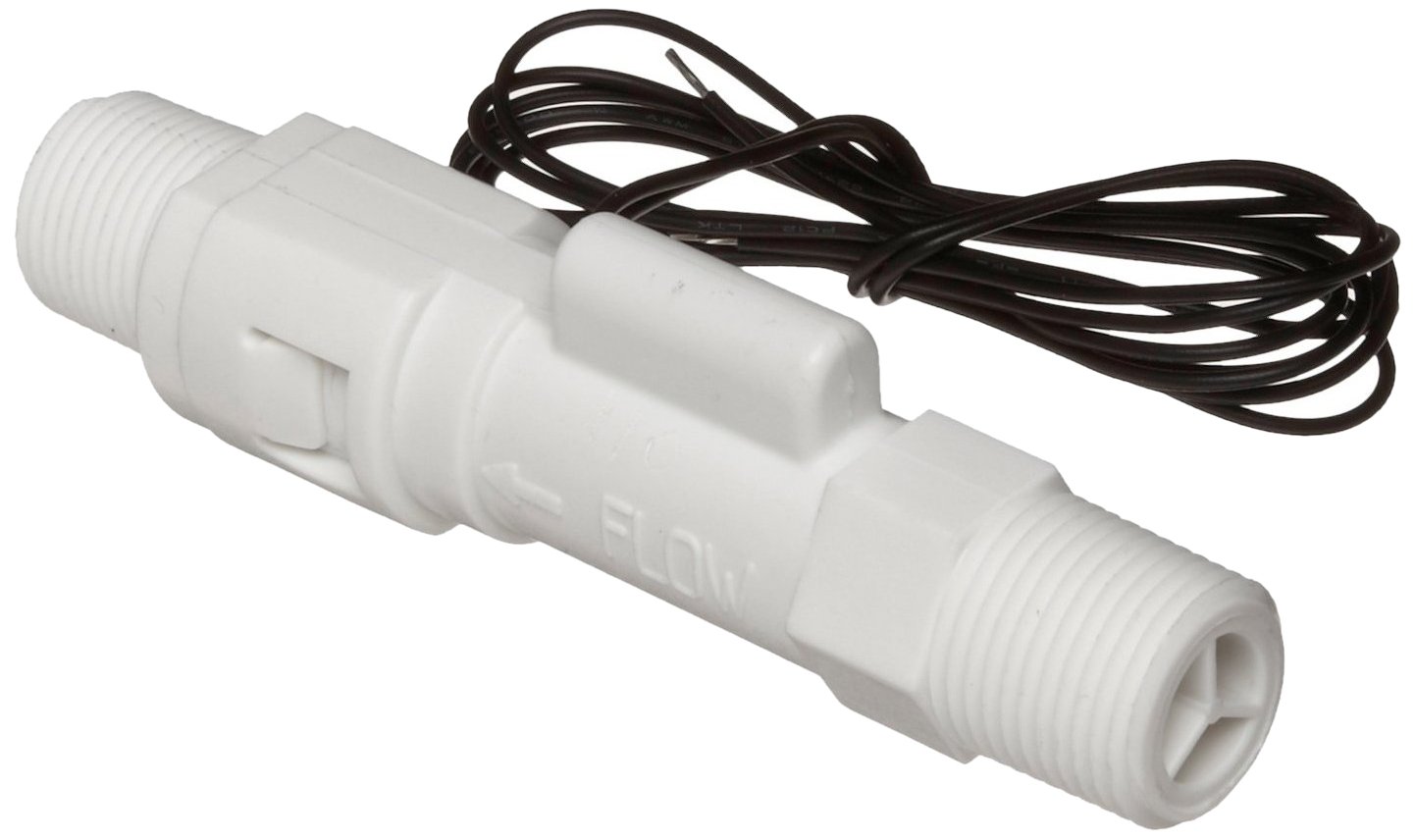

Gems Sensors FS-380P Series Polypropylene Flow Switch, Inline, Piston Type, NPT Male

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
Fluorocarbon
Material Type
Polypropylene (PP)
Structure Description
Piston Type
Brand Name
Gems Sensors
Manufacturer Series Number
FS-380P
Upper Temperature Range
212  Degrees Fahrenheit
Specification Met
UL Recognized, CE
Maximum Pressure
125  PSI
Connector Type
NPT Male
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 10 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-7 of 7
3/8" NPT Male 0.08 gpm Flow Setting B006Z10DD2 Usually ships in 3 to 5 weeks $46.65 Buy Options
3/8" NPT Male 0.15 gpm Flow Setting B005T691LY Usually ships in 3 to 5 weeks $52.12 Buy Options
3/8" NPT Male 0.25 gpm Flow Setting B005T68XQ8 8 $48.76 Buy Options
3/8" NPT Male 0.5 gpm Flow Setting B005T68Y3K 2 $53.00 Buy Options
3/8" NPT Male 1 gpm Flow Setting B005T68YG2 1 $53.00 Buy Options
3/8" NPT Male 1.5 gpm Flow Setting B005T68YYO 1 $53.00 Buy Options
3/8" NPT Male 2 gpm Flow Setting B005T68ZZC 2 $53.00 Buy Options

Key Features

  • Wetted Materials: Polypropylene, PPS Composite, 316 Stainless Steel, Fluorocarbon
  • Electrical Termination: 22 AWG, 24"-26" long Polymeric Leads
  • Switch Type: SPST, N.O. (10VA)
  • Set Point Differential (Maximum): 0.2
  • Recommended Filtration: 100 micron

Product Description

FS-380P Series - Industrial Strength Inline Plastic Flow Switch. This rugged inline flow switch offers the same superior performance to non-clogging as its metal cousin (FS-380). The fixed set point and simple design make it a dependable switch. The FS-380P is an ideal choice for coolant applications requiring reliable flow detection in HVAC, semiconductor, welding, medical and other industries. 1/4" quick disconnect units have a host of snap-on mating adapters to fit most piping requirements.
