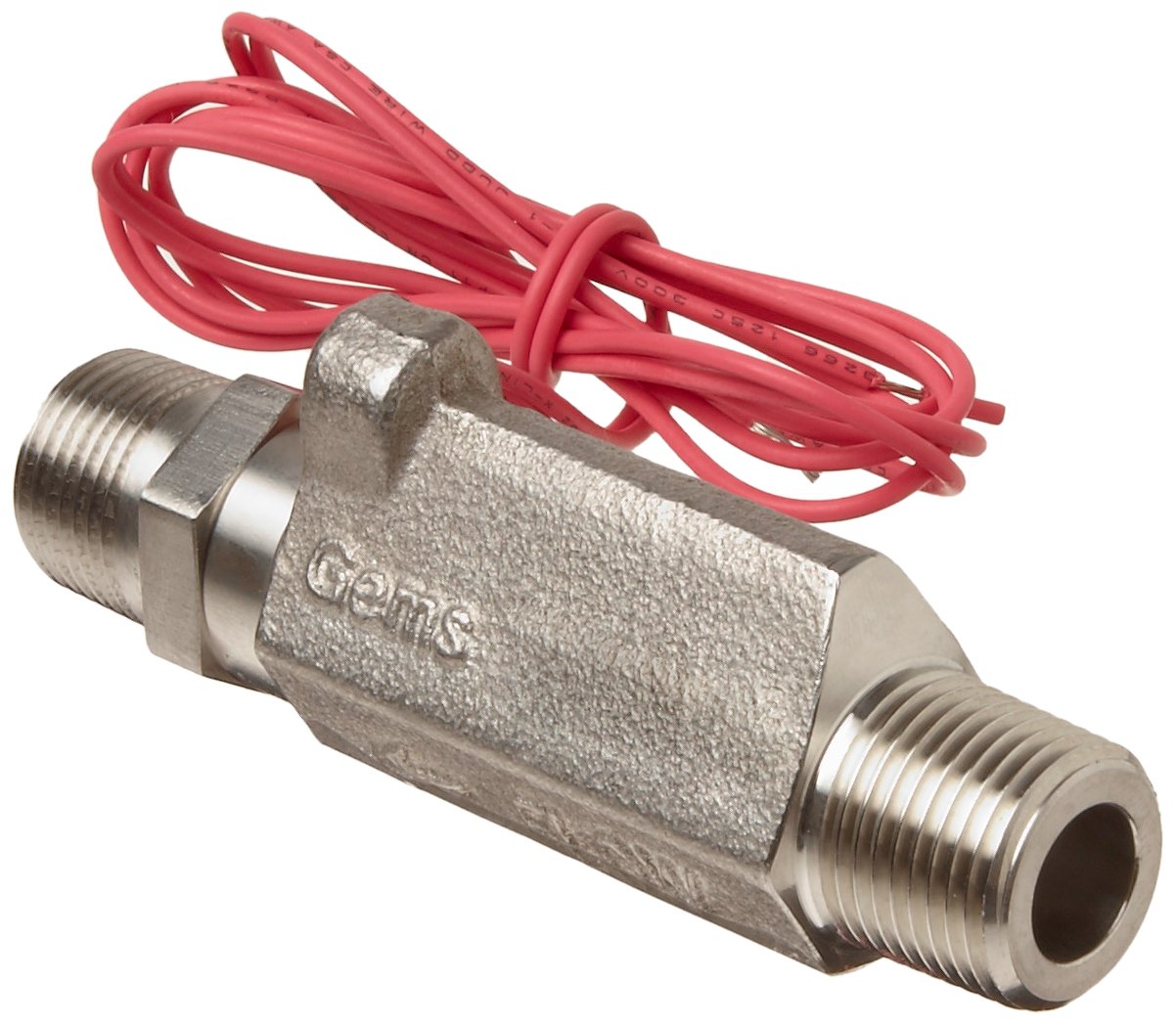

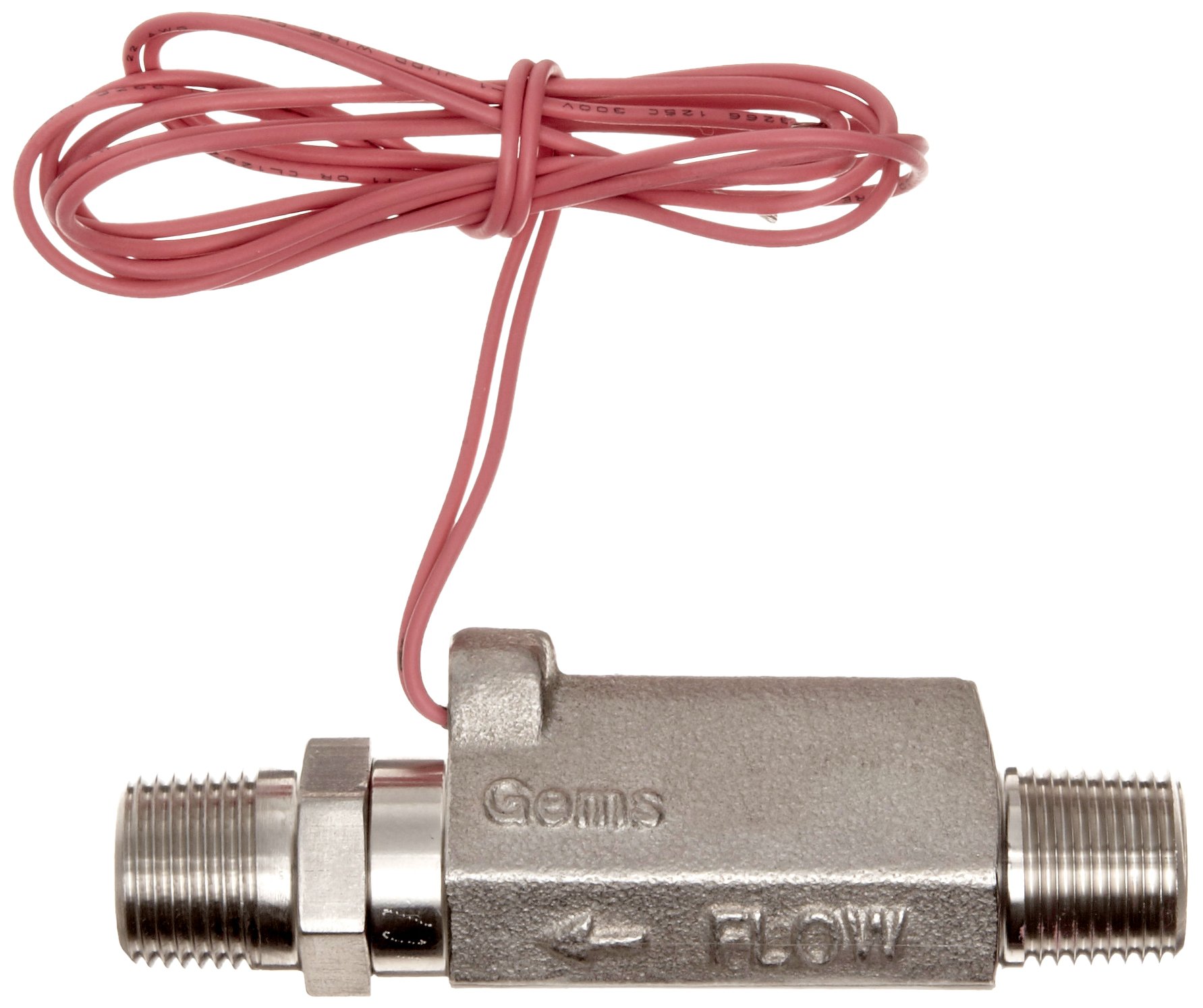

Gems Sensors FS-380 Series Stainless Steel 316 High Pressure Flow Switch, Inline, Piston Type, NPT Male

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
Fluorocarbon
Material Type
Stainless Steel
Structure Description
Piston Type
Brand Name
Gems Sensors
Manufacturer Series Number
FS-380
Upper Temperature Range
275  Degrees Fahrenheit
Specification Met
UL Recognized, CE
Grade
316
Maximum Pressure
1500  PSI
Connector Type
NPT Male
UNSPSC Code
39122223
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 19 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name Style name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
3/8" NPT Male 0.15 gpm Flow Setting B006Z109D6 yes $256.61 Buy Options
3/8" NPT Male 0.25 gpm Flow Setting B006UKOGYA yes $246.46 Buy Options
3/8" NPT Male 0.5 gpm Flow Setting B006Z10AHG yes $246.46 Buy Options
3/8" NPT Male 1 gpm Flow Setting B006Z10BKM yes $246.46 Buy Options
3/8" NPT Male 1.5 gpm Flow Setting B006Z10CDS yes $246.46 Buy Options
3/8" NPT Male 2 gpm Flow Setting B006Z10CY2 yes $246.46 Buy Options

Key Features

  • Wetted Materials: PPS Composite, Epoxy, 316 Stainless Steel, Fluorocarbon
  • Electrical Termination: 22 AWG, 24"-26" long Polymeric Leads
  • Switch Type: SPST, N.O. (20VA)
  • Set Point Differential (Maximum): 0.2
  • Recommended Filtration: 100 micron

Product Description

FS-380 Series - Compact Flow Switch for High Inline Pressures. These rugged inline flow switches use 100 micron filtration and are less susceptible to clogging than other high-pressure inline flow switches. The one-piece magnetic PPS composite piston makes the FS-380 ideal for high-pressure applications such as industrial cleaning equipment. The FS-380 is also an excellent choice for semicon cooling applications where simple design and reliable operation are required.
