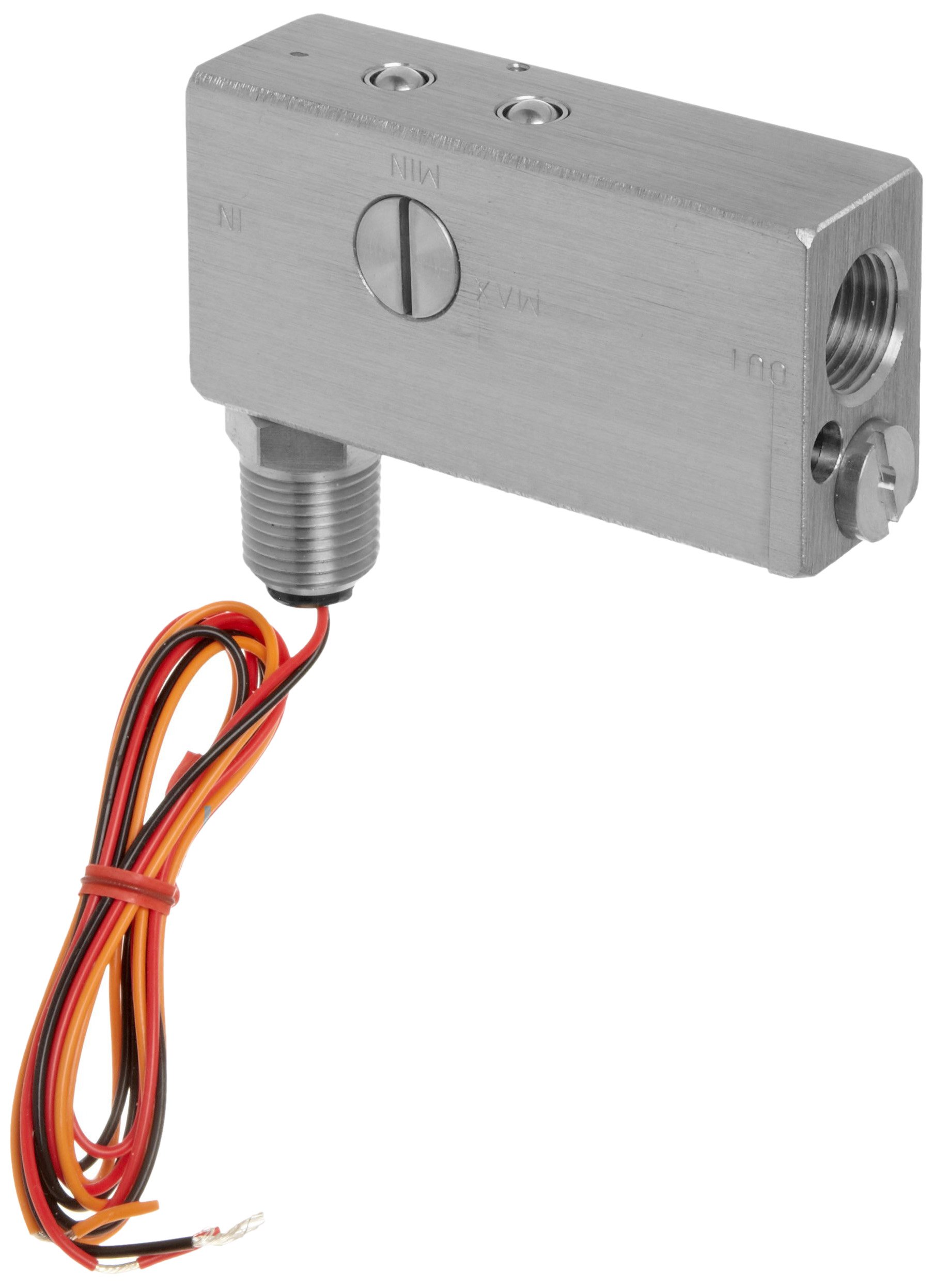

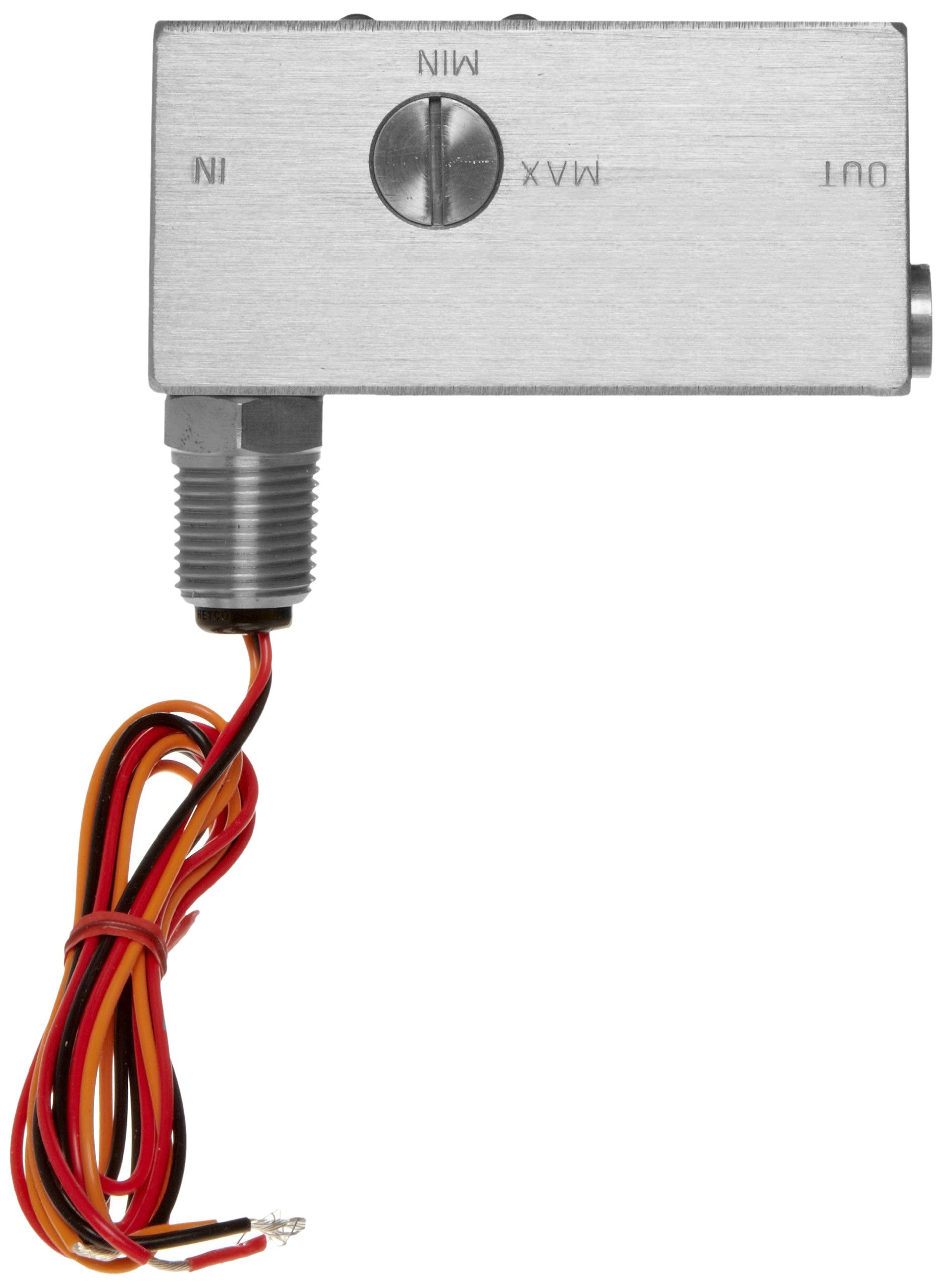

Gems Sensors FS-10798 Series Stainless Steel 316 Flow Switch For Use With Liquids, Inline, Piston Type, With 1/2" Conduit Connector, 0.50 - 20 gpm Flow Setting Adjustment Range, 1/2" NPT Female

Be the first to review this item

ASIN B006Z0ZPW2

Specifications for this item
Item Shape
Inline
Part Number
25364
Brand Name
Gems Sensors
Measurement Accuracy
+/-10
Specification Met
UL Recognized , UL Explosion Proof , CSA Listed , CE
Grade
316
Style Name
0.50 - 20 gpm Flow Setting Adjustment Range
Number of Items
1
Seal Material Type
Viton
For Use With Product Type
Liquids
Material Type
Stainless Steel
Structure Description
Piston Type
Size Name
1/2" NPT Female
Manufacturer Series Number
FS-10798
Upper Temperature Range
300  Degrees Fahrenheit
Maximum Pressure
1000  PSI
UNSPSC Code
39122223
Overall Length
4-1/8  inches
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 18 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Wetted Materials: 316 Stainless Steel, Viton, Epoxy
  • Electrical Termination: 1/2" Conduit Connector w/18 AWG, 24"-26" long Polymeric Leads
  • Switch Type: SPDT (20VA)
  • Set Point Differential (Maximum): 0.15
  • Recommended Filtration: 50 micron

Package Details

Shipping Weight: 2.55 pounds
Package Size: 4.6 x 3.7 x 1.6 inches

Product Description

FS-10798 Series - Externally Adjustable for Water, Oils and Gases. These externally adjustable switches are ideal for protecting machine tools from coolant flow failure, for protecting bearings from loss of lubricant or to assure proper air flow. They offer an infinite number of flow settings at pressures up to 1000 PSIG, with low pressure drop and precise repeatability. The adjusting vane is easily field adjustable using an ordinary flat-bladed screwdriver. The adjustment is set-screw-locked for tamper-free operation after field calibration.
