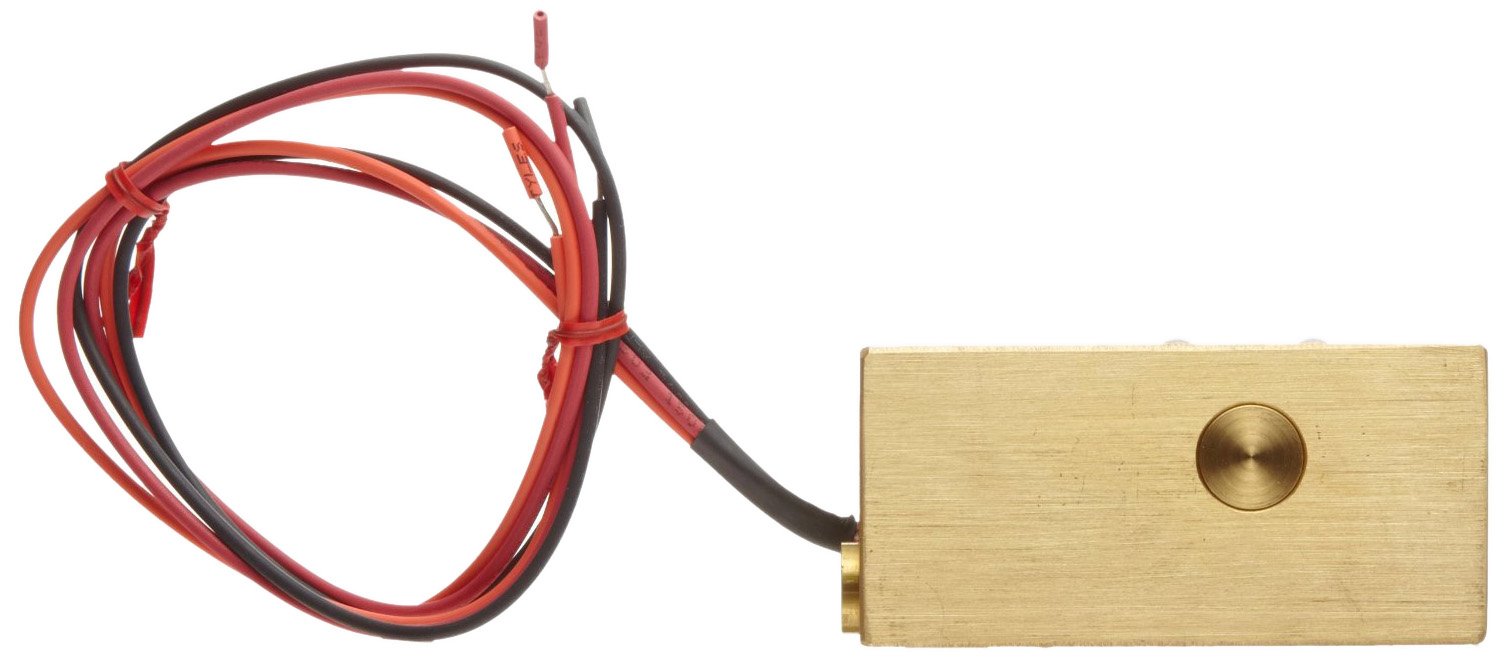

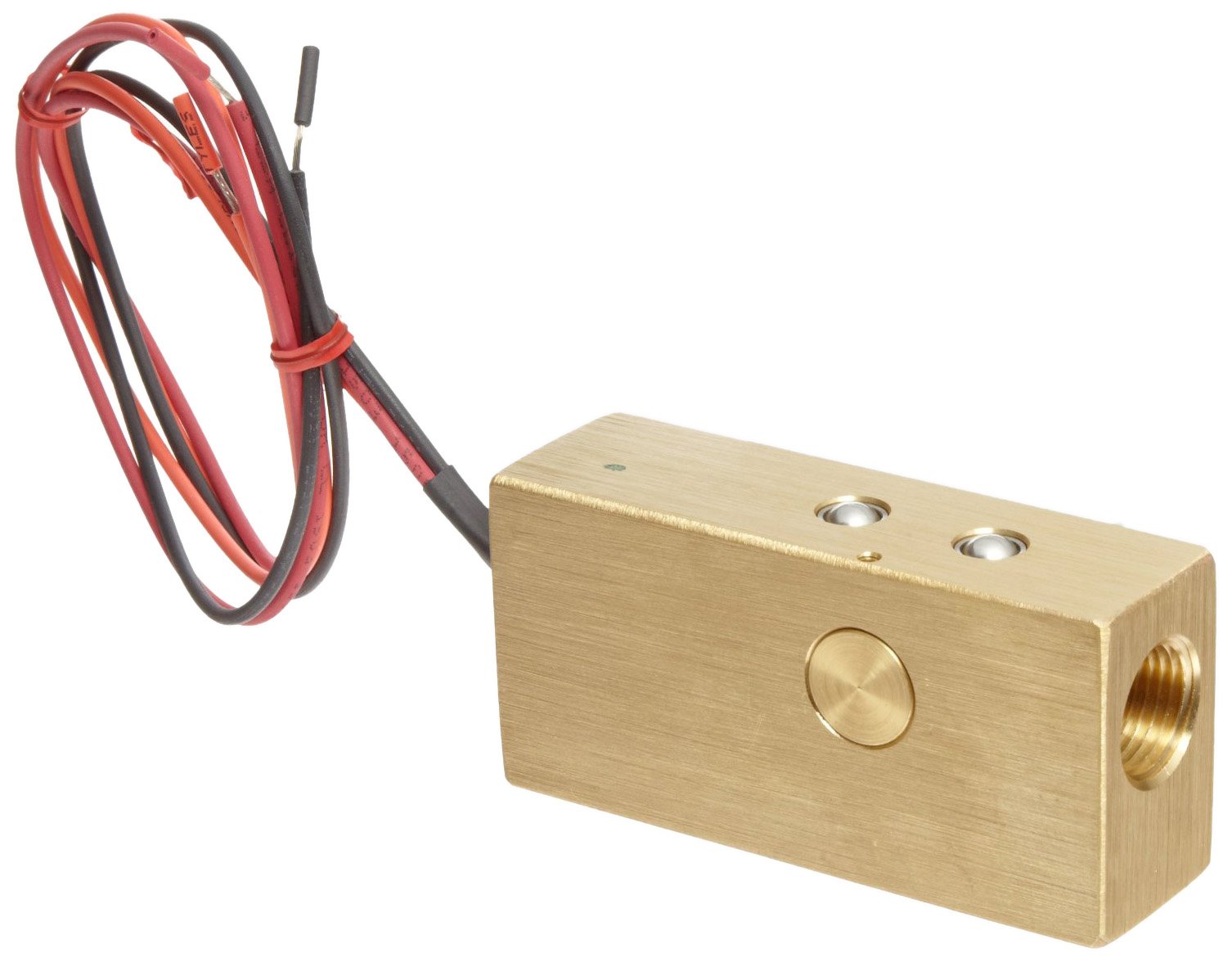

Gems Sensors FS-10798 Series Brass Flow Switch For Use With Gases, Inline, Piston Type, With Lead Wires, 0.50 - 20 gpm Flow Setting Adjustment Range, 1/2" NPT Female

Be the first to review this item


Specifications for this item
Number of Items
Item Shape
Material Type
Part Number
Structure Description
Piston Type
Brand Name
Gems Sensors
Size Name
1/2" NPT Female
Manufacturer Series Number
FS-10798 Series
Upper Temperature Range
300  Degrees Fahrenheit
Specification Met
UL Recognized , UL Explosion Proof , CSA Listed , CE
Maximum Pressure
1000  PSI
Style Name
0.50 - 20 gpm Flow Setting Adjustment Range
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 14 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Wetted Materials: Brass, Viton, Epoxy
  • Electrical Termination: 18 AWG, 24"-26" long Polymeric Leads
  • Switch Type: SPDT (20VA)
  • Set Point Differential (Maximum): 0.15
  • Recommended Filtration: 50 micron

Package Details

Shipping Weight: 2.6 pounds
Package Size: 4.8 x 3.6 x 1 inches

Product Description

FS-10798 Series – Externally Adjustable for Water, Oils and Gases. These externally adjustable switches are ideal for protecting machine tools from coolant flow failure, for protecting bearings from loss of lubricant or to assure proper air flow. They offer an infinite number of flow settings at pressures up to 1000 PSIG, with low pressure drop and precise repeatability. The adjusting vane is easily field adjustable using an ordinary flat-bladed screwdriver. The adjustment is set-screw-locked for tamper-free operation after field calibration.
