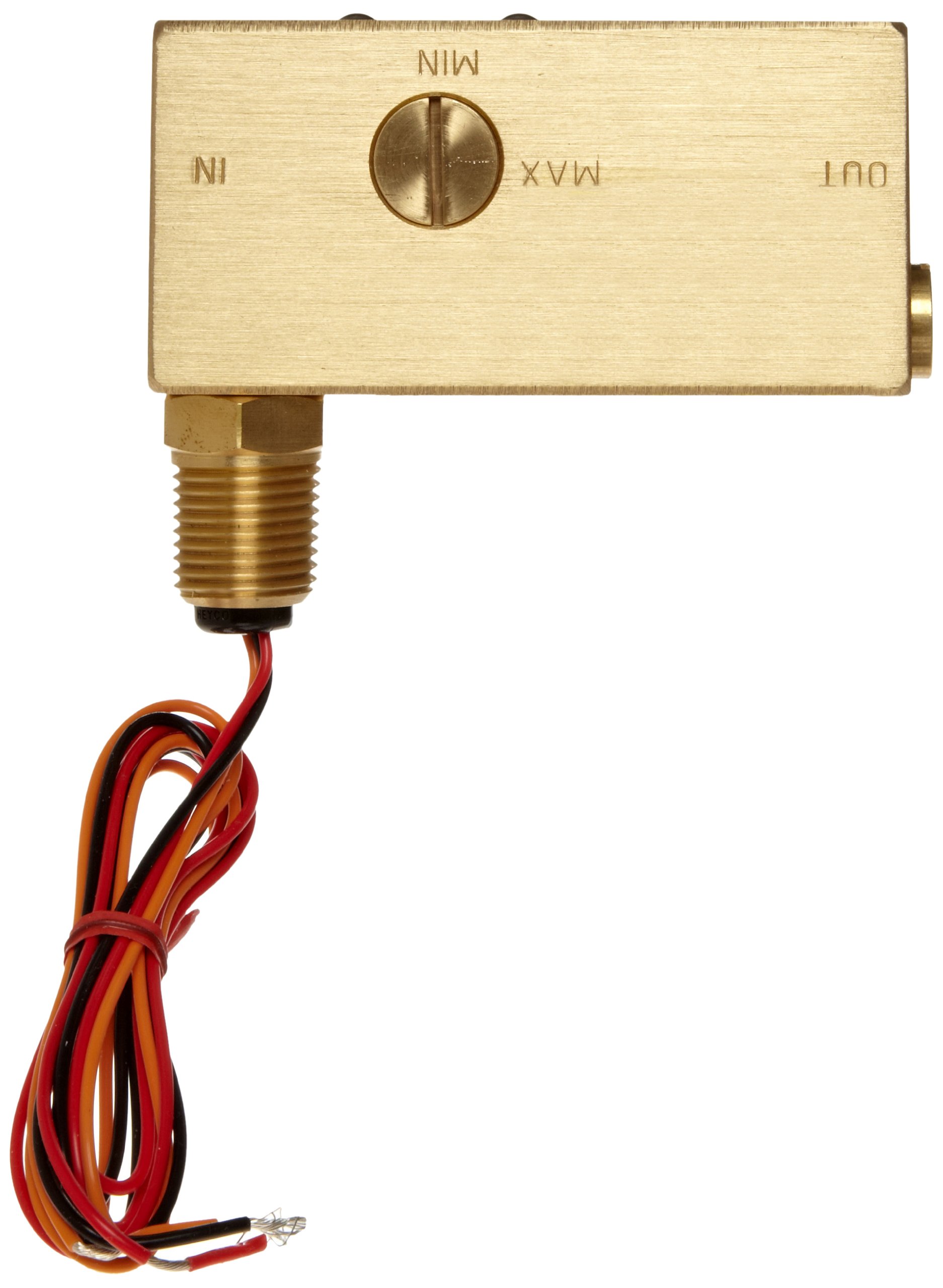

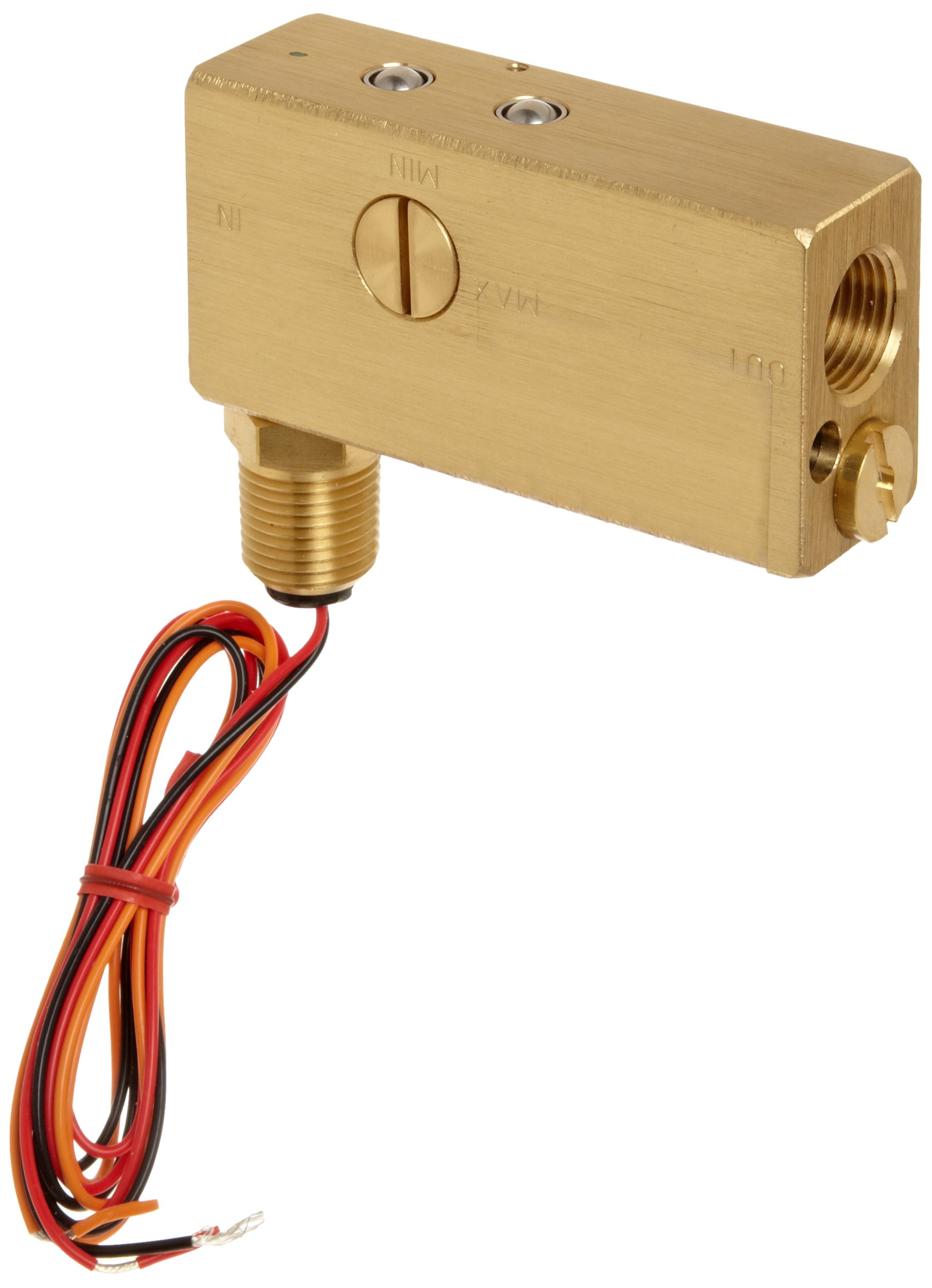

Gems Sensors FS-10798 Series Brass Flow Switch For Use With Gases, Inline, Piston Type, With 1/2" Conduit Connector, 0.50 - 20 gpm Flow Setting Adjustment Range, 1/2" NPT Female
Be the first to review this item
ASIN B006Z0ZMXE
Specifications for this item
- Brand Name
- Gems Sensors
- For Use With Product Type
- Gases
- Item Shape
- Inline
- LowerTemperature Range
- -20 Degrees Fahrenheit
- Manufacturer Series Number
- FS-10798
- Material Type
- Brass
- Maximum Pressure
- 1000 PSI
- Measurement Accuracy
- +/-10
- Number of Items
- 1
- Overall Length
- 4-1/8 inches
- Part Number
- 25365
- Seal Material Type
- Viton
- Size Name
- 1/2" NPT Female
- Specification Met
- UL Recognized , UL Explosion Proof , CSA Listed , CE
- Structure Description
- Piston Type
- Style Name
- 0.50 - 20 gpm Flow Setting Adjustment Range
- Upper Temperature Range
- 300 Degrees Fahrenheit
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 8 minutes and choose One-Day Shipping at checkout.
Key Features
- Wetted Materials: Brass, Viton, Epoxy
- Electrical Termination: 1/2" Conduit Connector w/18 AWG, 24"-26" long Polymeric Leads
- Switch Type: SPDT (20VA)
- Set Point Differential (Maximum): 0.15
- Recommended Filtration: 50 micron
Package Details
Shipping Weight:
2.6 pounds
Package Size:
4.8 x 3.6 x 1.3 inches
Product Description
FS-10798 Series - Externally Adjustable for Water, Oils and Gases. These externally adjustable switches are ideal for protecting machine tools from coolant flow failure, for protecting bearings from loss of lubricant or to assure proper air flow. They offer an infinite number of flow settings at pressures up to 1000 PSIG, with low pressure drop and precise repeatability. The adjusting vane is easily field adjustable using an ordinary flat-bladed screwdriver. The adjustment is set-screw-locked for tamper-free operation after field calibration.
