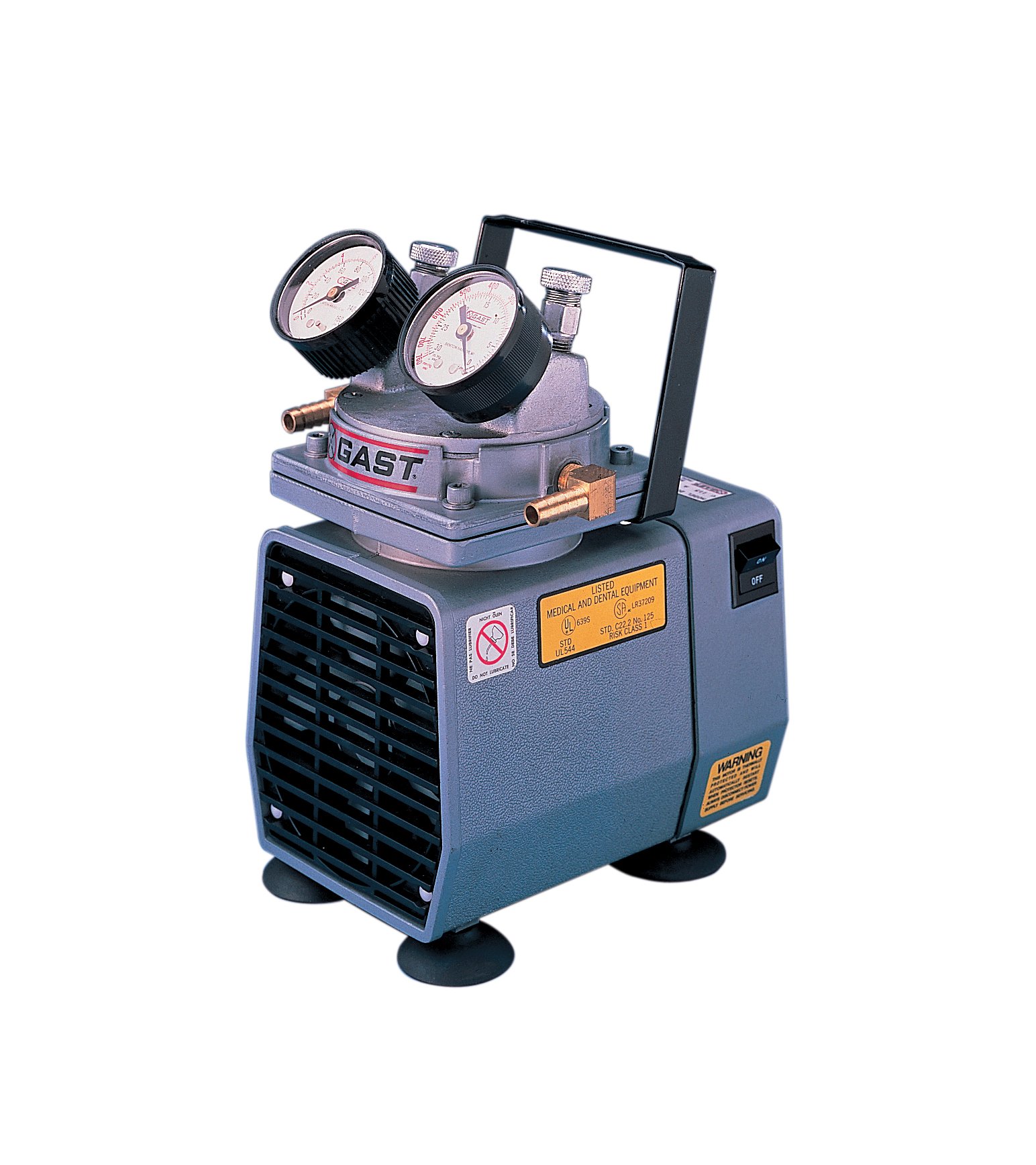

Gast DOA-P704B-AA DOA Lab Model Oilless Diaphragm Pump

Be the first to review this item


Specifications for this item
Inlet Connection Type
NPT Female
Number of Items
Overall Height
11  inches
Overall Width
8.75  inches
60  PSI
Part Number
Inlet Outside Dimensions
1/4  inches
Brand Name
Overall Length
7.75  inches

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Provides vacuum up to 24 inches Hg (81 kPa), pressure up to 60 psi (414 kPa)
  • Free air capacity 31 Lpm
  • 1/8 HP (93 W) air-cooled, shaded pole motor with internal thermal overload protection
  • Stainless steel valves; housing, head and connecting rod of cast aluminum
  • Complete with vacuum and pressure gauges and regulators. Vacuum gauge graduated 0 to 30 inches Hg and 0 to 760 mm Hg; pressure gauge graduated 0 to 100 psi and 0 to 7 bars

Package Details

Shipping Weight: 18.55 pounds
Package Size: 13.3 x 12.7 x 10.1 inches

Product Description

Overall dimensions approximately 7.75” x 8.75” x 11” high; equipped with air filters, pump-mounted switch and serrated connectors for 6 mm i.d. tubing; has 3-wire cord and plug for 120 V, 60 Hz, 4 amps.
